--- title: Deploying Windows 10 with the Microsoft Deployment Toolkit (MDT) description: This guide will walk you through the process of deploying Windows 10 in an enterprise environment using the Microsoft Deployment Toolkit (MDT). ms.assetid: 837f009c-617e-4b3f-9028-2246067ee0fb ms.reviewer: manager: laurawi ms.author: greglin keywords: deploy, tools, configure, script ms.prod: w10 ms.mktglfcycl: deploy ms.localizationpriority: medium ms.sitesec: library audience: itpro author: greg-lindsay ms.pagetype: mdt ms.topic: article --- # Deploying Windows 10 with MDT **Applies to** - Windows 10 This guide will walk you through the process of deploying Windows 10 in an enterprise environment using the Microsoft Deployment Toolkit (MDT). A summary topics in the guide is provided in the table below. Complete each of the topics below in the order they are listed. Informational topics are optional, but can provide helpful [information about MDT](#what-is-mdt). This topic also provides a detailed description of the [proof of concept environment](#proof-of-concept-environment) used in this guide, and [sample files](#sample-files) are provided below to help you put the information you learn into practice more quickly. | Topic | Description | Required / optional | | :--- | :--- | :--- | | [Understand the Microsoft Deployment Toolkit (MDT)](get-started-with-the-microsoft-deployment-toolkit.md) | An overview of MDT. | Optional | | [Deploying Windows 10 with MDT](deploy-windows-10-with-the-microsoft-deployment-toolkit.md) | (This topic). A description of topics in this guide and the overall lab infrastructure. | Optional | | [Prepare for deployment with MDT](prepare-for-windows-deployment-with-mdt.md) | Installation of MDT. | Required | | [Create a Windows 10 reference image](create-a-windows-10-reference-image.md) | Create a deployment share, configure rules and settings, and import all the applications and operating system files required to build a Windows 10 reference image. | Required | | [Deploy a Windows 10 image using MDT](deploy-a-windows-10-image-using-mdt.md) | Take a reference image for Windows 10 and deploy that image to your environment using MDT. | Required | | [Build a distributed environment for Windows 10 deployment](build-a-distributed-environment-for-windows-10-deployment.md) | Replicate your Windows 10 deployment shares to facilitate the deployment of Windows 10 in remote or branch locations. | Optional | | [Refresh a Windows 7 computer with Windows 10](refresh-a-windows-7-computer-with-windows-10.md) | Use MDT Lite Touch Installation (LTI) to upgrade a Windows 7 computer to a Windows 10 computer using the computer refresh process. | Required | | [Replace a Windows 7 computer with a Windows 10 computer](replace-a-windows-7-computer-with-a-windows-10-computer.md) | Use MDT Lite Touch Installation (LTI) to replace the a Windows 7 computer with a Windows 10 computer using the replace process. | Required | | [Perform an in-place upgrade to Windows 10 with MDT](upgrade-to-windows-10-with-the-microsoft-deployment-toolkit.md) | Use an MDT task sequence to completely automate the in-place upgrade process. | Required | | [Configure MDT settings](configure-mdt-settings.md) | Learn about configuring MDT customizations for your environment. | Optional | ## What is MDT MDT is a unified collection of tools, processes, and guidance for automating desktop and server deployment. In addition to reducing deployment time and standardizing desktop and server images, MDT enables you to more easily manage security and ongoing configurations. MDT builds on top of the core deployment tools in the Windows Assessment and Deployment Kit (Windows ADK) with additional guidance and features designed to reduce the complexity and time required for deployment in an enterprise environment. MDT supports the deployment of Windows 10, as well as Windows 7, Windows 8.1, and Windows Server. It also includes support for zero-touch installation (ZTI) with Microsoft System Center Configuration Manager. See [Get started with the Microsoft Deployment Toolkit (MDT)](get-started-with-the-microsoft-deployment-toolkit.md) for more details, including a description of many of the key features and options available in MDT. A list of components that support Lite Touch Installation (LTI) is also provided. To download the latest version of MDT, visit the [MDT resource page](https://go.microsoft.com/fwlink/p/?LinkId=618117). ## Proof-of-concept environment For the purposes of this guide we will use the following servers and client machines: DC01, MDT01, CM01, PC0001, and PC0002. ![computers](../images/mdt-01-fig01.png) DC01 is a domain controller; the other servers and client machines are members of the domain contoso.com for the fictitious Contoso Corporation. All servers are running Windows Server 2012 R2, but you can also use a later version of Windows Server with minor adjustments to some procedures. ## Storage requirements MDT01 and CM01 should have data drives (D:) that can support up to 100 and 200 GB of data, respectively. The system drives (C:) are 100 GB in size. ## Hypervisor requirement A Hyper-V host can be used to build a Windows 10 reference image, but is not required. Instructions are also provided to create a reference image using local server resources. However, a place to host the VHD ### Installing Hyper-V If you do not have access to a Hyper-V server, you can install Hyper-V on a Windows 10 or Windows 8.1 computer temporarily to use for this lab. For instructions on how to enable Hyper-V on Windows 10, see the [Verify support and install Hyper-V](https://docs.microsoft.com/windows/deployment/windows-10-poc#verify-support-and-install-hyper-v) section in the Windows 10 deployment test lab guide (this guide is a less detailed version of the current guide, but with more instructions for installing Hyper-V). ## Network requirements For this lab, all server and client computers are on the same subnet. This is not required, but each server and client computer must be able to connect to each other to share files, and resolve all DNS names and Active Directory information for the contoso.com domain. Internet connectivity is also requried to download OS and applicaton updates. ### Domain credentials You can use your own Active Directory domain and credentials, but you'll need to specify your custom information and use it to replace the credentials below that are used in this guide. **Active Directory domain name**: contoso.com
**Domain administrator username**: admin

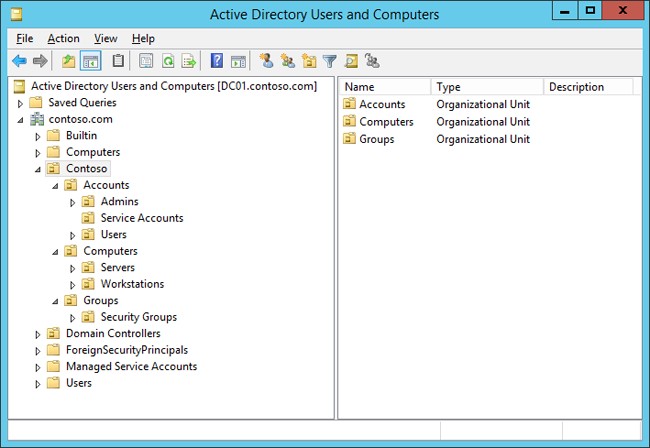

**Domain administrator password**: pass@word3 ### Organizational unit structure ![figure 2](../images/mdt-01-fig02.jpg) ## Server details - **DC01.** A computer running Windows Server 2012 R2, fully patched with the latest security updates, and configured as an Active Directory Domain Controller, DNS Server, and (optionally) DHCP Server for the contoso.com domain. - Server name: DC01 - IP Address: 10.10.0.5 - Roles: DNS, DHCP, and domain controller - **MDT01.** A computer running Windows Server 2012 R2, fully patched with the latest security updates, and configured as a member server in the contoso.com domain. This is an application server that is used to run MDT. - Server name: MDT01 - IP Address: 10.10.0.8 - Data drive D: with at least 100GB of free space. - **CM01.** A computer running Windows Server 2012 R2, fully patched with the latest security updates, and configured as a member server in the contoso.com domain. This is a System Center Configuration Manager site server. - Server name: CM01 - IP Address: 10.10.0.4 - Data drive D: with at least 100GB of free space. ## Client details - **PC0001.** A computer running Windows 10 Enterprise x64, fully patched with the latest security updates, and configured as a member in the contoso.com domain. This computer is referenced as the admin workstation. - Client name: PC0001 - IP Address: DHCP - **PC0002.** A computer running Windows 7 SP1 Enterprise x64, fully patched with the latest security updates, and configured as a member in the contoso.com domain. This computer is referenced during the migration scenarios. - Client name: PC0002 - IP Address: DHCP - **PC0003 - PC0007** These are other client computers similar to PC0001 and PC0002 that are used in the guide for various scenarios. The device names are incremented to avoid confusion. For example, PC0003 and PC0004 are running Windows 7 just like PC0002, but are used for Config Mgr refresh and replace scenarios, respectively. ## Sample files In order to help you put the information you learn into practice more quickly, we recommend that you download a small set of sample files for the fictitious Contoso Corporation: - [Gather.ps1](https://go.microsoft.com/fwlink/p/?LinkId=619361). This sample Windows PowerShell script performs the MDT Gather process in a simulated MDT environment. This allows you to test the MDT gather process and check to see if it is working correctly without performing a full Windows deployment. - [Set-OUPermissions.ps1](https://go.microsoft.com/fwlink/p/?LinkId=619362). This sample Windows PowerShell script creates a domain account and then configures OU permissions to allow the account to join machines to the domain in the specified OU. - [MDTSample.zip](https://go.microsoft.com/fwlink/p/?LinkId=619363). This sample web service shows you how to configure a computer name dynamically using MDT. ## Related topics [Microsoft Deployment Toolkit downloads and resources](https://go.microsoft.com/fwlink/p/?LinkId=618117)
