--- title: Azure Active Directory integration with MDM description: Azure Active Directory is the world largest enterprise cloud identity management service. ms.assetid: D03B0765-5B5F-4C7B-9E2B-18E747D504EE ms.reviewer: manager: dansimp ms.author: dansimp ms.topic: article ms.prod: w10 ms.technology: windows author: dansimp --- # Azure Active Directory integration with MDM Azure Active Directory is the world largest enterprise cloud identity management service. It’s used by organizations to access Office 365 and business applications from Microsoft and third-party software as a service (SaaS) vendors. Many of the rich Windows 10 experiences for organizational users (such as store access or OS state roaming) use Azure AD as the underlying identity infrastructure. Windows integrates with Azure AD, allowing devices to be registered in Azure AD and enrolled into MDM in an integrated flow. Once a device is enrolled in MDM, the MDM: - Can enforce compliance with organization policies, add or remove apps, and more. - Can report a device’s compliance in Azure AD. - Azure AD can allow access to organization resources or applications secured by Azure AD to devices that comply with policies. To support these rich experiences with their MDM product, MDM vendors can integrate with Azure AD. This article describes the steps involved. ## Connect to Azure AD Several ways to connect your devices: For company-owned devices: - Join Windows to a traditional Active Directory domain - Join Windows to Azure AD For personal devices (BYOD): - Add a Microsoft work account to Windows ### Azure AD Join Company owned devices are traditionally joined to the on-premises Active Directory domain of the organization. These devices can be managed using Group Policy or computer management software such as Microsoft Endpoint Configuration Manager. In Windows 10, it’s also possible to manage domain joined devices with an MDM. Windows 10 introduces a new way to configure and deploy organization owned Windows devices. This mechanism is called Azure AD Join. Like traditional domain join, Azure AD Join allows devices to become known and managed by an organization. However, with Azure AD Join, Windows authenticates to Azure AD instead of authenticating to a domain controller. Azure AD Join also enables company owned devices to be automatically enrolled in, and managed by an MDM. Furthermore, Azure AD Join can be performed on a store-bought PC, in the out-of-box experience (OOBE), which helps organizations streamline their device deployment. An administrator can require that users belonging to one or more groups enroll their devices for management with an MDM. If a user is configured to require automatic enrollment during Azure AD Join, this enrollment becomes a mandatory step to configure Windows. If the MDM enrollment fails, then the device won't be joined to Azure AD. > [!IMPORTANT] > Every user enabled for automatic MDM enrollment with Azure AD Join must be assigned a valid [Azure Active Directory Premium](/previous-versions/azure/dn499825(v=azure.100)) license. ### BYOD scenario Windows 10 also introduces a simpler way to configure personal devices to access work apps and resources. Users can add their Microsoft work account to Windows and enjoy simpler and safer access to the apps and resources of the organization. During this process, Azure AD detects if the organization has configured an MDM. If that’s the case, Windows attempts to enroll the device in MDM as part of the “add account” flow. In the BYOD case, users can reject the MDM Terms of Use. The device isn't enrolled in MDM and access to organization resources is typically restricted. ## Integrated MDM enrollment and UX Two Azure AD MDM enrollment scenarios: - Joining a device to Azure AD for company-owned devices - Adding a work account to a personal device (BYOD) In both scenarios, Azure AD authenticates the user and the device. It provides a verified unique device identifier that can be used for MDM enrollment. In both scenarios, the enrollment flow provides an opportunity for the MDM service to render its own UI, using a web view. MDM vendors should use the UI to render the Terms of Use (TOU), which can be different for company-owned and BYOD devices. MDM vendors can also use the web view to render more UI elements, such as asking for a one-time PIN. In the out-of-the-box scenario, the web view is 100% full screen, which gives the MDM vendor the ability to paint an edge-to-edge experience. With great power comes great responsibility! It's important that MDM vendors who integrate with Azure AD respect the Windows design guidelines. This step includes using a responsive web design and respecting the Windows accessibility guidelines. For example, include the forward and back buttons that are properly wired to the navigation logic. More details are provided later in this article. For Azure AD enrollment to work for an Active Directory Federated Services (AD FS) backed Azure AD account, you must enable password authentication for the intranet on the ADFS service. For more information, see solution \#2 in [Configure Azure MFA as authentication provider with AD FS](/windows-server/identity/ad-fs/operations/configure-ad-fs-and-azure-mfa). Once a user has an Azure AD account added to Windows and enrolled in MDM, the enrollment can be managed through **Settings** > **Accounts** > **Work access**. Device management of either Azure AD Join for organization scenarios or BYOD scenarios is similar. > [!NOTE] > Users can't remove the device enrollment through the **Work access** user interface because management is tied to the Azure AD or work account. ### MDM endpoints involved in Azure AD–integrated enrollment Azure AD MDM enrollment is a two-step process: 1. Display the Terms of Use and gather user consent. This consent is a passive flow where the user is redirected in a browser control (webview) to the URL of the Terms of Use of the MDM. 2. Enroll the device. This step is an active flow where Windows OMA DM agent calls the MDM service to enroll the device. To support Azure AD enrollment, MDM vendors must host and expose a Terms of Use endpoint and an MDM enrollment endpoint. **Terms of Use endpoint** Use this endpoint to inform users of the ways in which their device can be controlled by their organization. The Terms of Use page is responsible for collecting user’s consent before the actual enrollment phase begins. It’s important to understand the Terms of Use flow is an "opaque box" to Windows and Azure AD. The whole web view is redirected to the Terms of Use URL. The user should be redirected back after approving or rejecting the Terms. This design allows the MDM vendor to customize their Terms of Use for different scenarios. For example, different levels of control are applied on BYOD vs. organization-owned devices. Or, implement user/group based targeting, like users in certain geographies may have stricter device management policies. The Terms of Use endpoint can implement more business logic, such as collecting a one-time PIN provided by IT to control device enrollment. However, MDM vendors must not use the Terms of Use flow to collect user credentials, which can be a degraded user experience. It’s not needed, since part of the MDM integration ensures that the MDM service can understand tokens issued by Azure AD. **MDM enrollment endpoint** After the users accepts the Terms of Use, the device is registered in Azure AD. Automatic MDM enrollment begins. The following diagram illustrates the high-level flow involved in the actual enrollment process. The device is first registered with Azure AD. This process assigns a unique device identifier to the device and presents the device with the ability to authenticate itself with Azure AD (device authentication). Then, the device is enrolled for management with the MDM. This step calls the enrollment endpoint and requests enrollment for the user and device. At this point, the user has been authenticated and device has been registered and authenticated with Azure AD. This information is available to the MDM in the form of claims within an access token presented at the enrollment endpoint. ![azure ad enrollment flow.](images/azure-ad-enrollment-flow.png) The MDM is expected to use this information about the device (Device ID) when reporting device compliance back to Azure AD using the [Azure AD Graph API](/azure/active-directory/develop/active-directory-graph-api). A sample for reporting device compliance is provided later in this article. ## Make the MDM a reliable party of Azure AD To participate in the integrated enrollment flow outlined in the previous section, the MDM must consume access tokens issued by Azure AD. To report compliance with Azure AD, the MDM must authenticate itself to Azure AD and obtain authorization in the form of an access token that allows it to invoke the [Azure AD Graph API](/azure/active-directory/develop/active-directory-graph-api). ### Add a cloud-based MDM A cloud-based MDM is a SaaS application that provides device management capabilities in the cloud. It's a multi-tenant application. This application is registered with Azure AD in the home tenant of the MDM vendor. When an IT admin decides to use this MDM solution, an instance of this application is made visible in the tenant of the customer. The MDM vendor must first register the application in their home tenant and mark it as a multi-tenant application. Here a code sample from GitHub that explains how to add multi-tenant applications to Azure AD, [WepApp-WebAPI-MultiTenant-OpenIdConnect-DotNet](https://go.microsoft.com/fwlink/p/?LinkId=613661). > [!NOTE] > For the MDM provider, if you don't have an existing Azure AD tentant with an Azure AD subscription that you manage, follow the step-by-step guide in [Add an Azure AD tenant and Azure AD subscription](add-an-azure-ad-tenant-and-azure-ad-subscription.md) to set up a tenant, add a subscription, and manage it via the Azure Portal. The MDM application uses keys to request access tokens from Azure AD. These keys are managed within the tenant of the MDM provider and not visible to individual customers. The same key is used by the multi-tenant MDM application to authenticate itself with Azure AD, whatever the customer tenent the managed device belongs. Use the following steps to register a cloud-based MDM application with Azure AD. At this time, you need to work with the Azure AD engineering team to expose this application through the Azure AD app gallery. 1. Log in to the Azure Management Portal using an admin account in your home tenant. 2. In the left navigation, select **Active Directory**. 3. Select the directory tenant where you want to register the application. Ensure you're logged into your home tenant. 4. Select the **Applications** tab. 5. In the drawer, select **Add**. 6. Select **Add an application my organization is developing**. 7. Enter a friendly name for the application, such as ContosoMDM, select **Web Application and or Web API**, then select **Next**. 8. Enter the login URL for your MDM service. 9. For the App ID, enter **https://<your\_tenant\_name>/ContosoMDM**, then select OK. 10. While still in the Azure portal, select the **Configure** tab of your application. 11. Mark your application as **multi-tenant**. 12. Find the client ID value and copy it. You'll need this ID later when configuring your application. This client ID is used when obtaining access tokens and adding applications to the Azure AD app gallery. 13. Generate a key for your application and copy it. You need this key to call the Azure AD Graph API to report device compliance. This information is covered in the next section. For more information about how to register a sample application with Azure AD, see the steps to register the **TodoListService Web API** in [NativeClient-DotNet](https://go.microsoft.com/fwlink/p/?LinkId=613667). ### Add an on-premises MDM An on-premises MDM application is different than a cloud MDM. It's a single-tenant application that is present uniquely within the tenant of the customer. Customers must add the application directly within their own tenant. Also, each instance of an on-premises MDM application must be registered separately and has a separate key for authentication with Azure AD. To add an on-premises MDM application to the tenant, use the Azure AD service, specifically under **Mobility (MDM and MAM)** > **Add application**. Administrators can configure the required URLs for enrollment and Terms of Use. Your on-premises MDM product must expose a configuration experience where administrators can provide the client ID, app ID, and the key configured in their directory for that MDM application. You can use this client ID and key to request tokens from Azure AD when reporting device compliance. For more information about registering applications with Azure AD, see [Basics of Registering an Application in Azure AD](/previous-versions/azure/dn499820(v=azure.100)). ### Key management and security guidelines The application keys used by your MDM service are a sensitive resource. They should be protected and rolled over periodically for greater security. Access tokens obtained by your MDM service to call the Azure AD Graph API are bearer tokens and should be protected to avoid unauthorized disclosure. For security best practices, see [Windows Azure Security Essentials](https://go.microsoft.com/fwlink/p/?LinkId=613715). You can rollover the application keys used by a cloud-based MDM service without requiring a customer interaction. There's a single set of keys across all customer tenants that are managed by the MDM vendor in their Azure AD tenant. For the on-premises MDM, the Azure AD authentication keys are within the customer tenant and must be rolled over by the customer's administrator. To improve security, provide guidance to customers about rolling over and protecting the keys. ## Publish your MDM app to Azure AD app gallery IT administrators use the Azure AD app gallery to add an MDM for their organization to use. The app gallery is a rich store with over 2400 SaaS applications that are integrated with Azure AD. The following image show how MDM applications show up in the Azure app gallery. ![azure ad add an app for mdm.](images/azure-ad-app-gallery.png) ### Add cloud-based MDM to the app gallery > [!NOTE] > You should work with the Azure AD engineering team if your MDM application is cloud-based and needs to be enabled as a multi-tenant MDM application The following table shows the required information to create an entry in the Azure AD app gallery.
Item Description

Application ID

The client ID of your MDM app that is configured within your tenant. This ID is the unique identifier for your multi-tenant app.

Publisher

A string that identifies the publisher of the app.

Application URL

A URL to the landing page of your app where your administrators can get more information about the MDM app and contains a link to the landing page of your app. This URL isn't used for the actual enrollment.

Description

A brief description of your MDM app, which must be under 255 characters.

Icons

A set of logo icons for the MDM app. Dimensions: 45 X 45, 150 X 122, 214 X 215

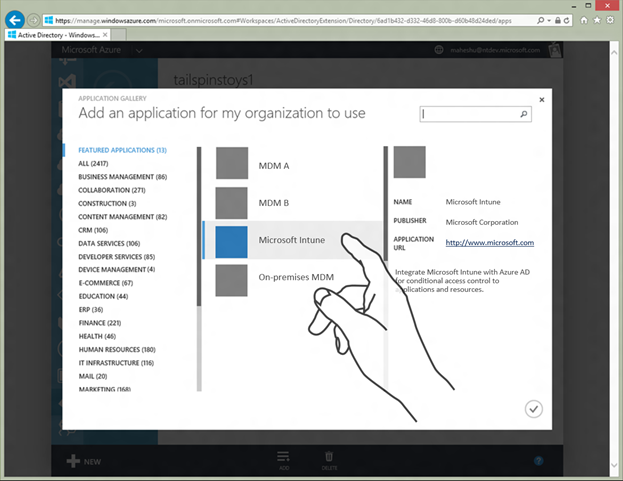

### Add on-premises MDM to the app gallery There are no special requirements for adding on-premises MDM to the app gallery. There's a generic entry for administrator to add an app to their tenant. However, key management is different for on-premises MDM. You must obtain the client ID (app ID) and key assigned to the MDM app within the customer's tenant. Thee ID and key obtain authorization to access the Azure AD Graph API and for reporting device compliance. ## Themes The pages rendered by the MDM in the integrated enrollment process must use Windows templates ([Download the Windows templates and CSS files (1.1.4)](https://download.microsoft.com/download/0/7/0/0702afe3-dc1e-48f6-943e-886a4876f6ca/MDM-ISV_1.1.4.zip)). These templates are important for enrollment during the Azure AD Join experience in OOBE where all of the pages are edge-to-edge HTML pages. Don't try to copy the templates because you'll never get the button placement right. There are three distinct scenarios: 1. MDM enrollment as part of Azure AD Join in Windows OOBE. 2. MDM enrollment as part of Azure AD Join, after Windows OOBE from **Settings**. 3. MDM enrollment as part of adding a Microsoft work account on a personal device (BYOD). These scenarios support Windows client Pro, Enterprise, and Education. The CSS files provided by Microsoft contain version information and we recommend that you use the latest version. There are separate CSS files for Windows client devices, OOBE, and post-OOBE experiences. [Download the Windows templates and CSS files (1.1.4)](https://download.microsoft.com/download/0/7/0/0702afe3-dc1e-48f6-943e-886a4876f6ca/MDM-ISV_1.1.4.zip). - For Windows 10, use **oobe-desktop.css** - For Windows 11, use **oobe-light.css** ### Using themes An MDM page must adhere to a predefined theme depending on the scenario that is displayed. For example, if the CXH-HOSTHTTP header is FRX, which is the OOBE scenario, then the page must support a dark theme with blue background color, which uses WinJS file Ui-dark.css ver 4.0 and oobe-desktop.css ver 1.0.4.
CXH-HOST (HTTP HEADER) Scenario Background Theme WinJS Scenario CSS
FRX OOBE Dark theme + blue background color Filename: Ui-dark.css Filename: oobe-dekstop.css
MOSET Settings/

Post OOBE

 Light theme Filename: Ui-light.css Filename: settings-desktop.css
## Terms of Use protocol semantics The Terms of Use endpoint is hosted by the MDM server. During the Azure AD Join protocol flow, Windows does a full-page redirect to this endpoint. This redirect enables the MDM to display the terms and conditions that apply. It allows the user to accept or reject the terms associated with enrollment. After the user accepts the terms, the MDM redirects back to Windows for the enrollment process to continue. ### Redirect to the Terms of Use endpoint This redirect is a full page redirect to the Terms of User endpoint hosted by the MDM. Here's an example URL, https://fabrikam.contosomdm.com/TermsOfUse. The following parameters are passed in the query string:
Item Description

redirect_uri

After the user accepts or rejects the Terms of Use, the user is redirected to this URL.

client-request-id

A GUID that is used to correlate logs for diagnostic and debugging purposes. Use this parameter to log or trace the state of the enrollment request to help find the root cause of failures.

api-version

Specifies the version of the protocol requested by the client. This value provides a mechanism to support version revisions of the protocol.

mode

Specifies that the device is organization owned when mode=azureadjoin. This parameter isn't present for BYOD devices.
### Access token Azure AD issues a bearer access token. The token is passed in the authorization header of the HTTP request. Here's a typical format: **Authorization: Bearer** CI6MTQxmCF5xgu6yYcmV9ng6vhQfaJYw… The following claims are expected in the access token passed by Windows to the Terms of Use endpoint:
Item Description

Object ID

Identifier of the user object corresponding to the authenticated user.

UPN

A claim containing the user principal name (UPN) of the authenticated user.

TID

A claim representing the tenant ID of the tenant. In the example above, it's Fabrikam.

Resource

A sanitized URL representing the MDM application. Example, https://fabrikam.contosomdm.com.

> [!NOTE] > There's no device ID claim in the access token because the device may not yet be enrolled at this time. To retrieve the list of group memberships for the user, you can use the [Azure AD Graph API](/azure/active-directory/develop/active-directory-graph-api). Here's an example URL. ```http https://fabrikam.contosomdm.com/TermsOfUse?redirect_uri=ms-appx-web://ContosoMdm/ToUResponse&client-request-id=34be581c-6ebd-49d6-a4e1-150eff4b7213&api-version=1.0 Authorization: Bearer eyJ0eXAiOi ``` The MDM is expected to validate the signature of the access token to ensure it was issued by Azure AD and ensure that recipient is appropriate. ### Terms of Use content The MDM may do other more redirects as necessary before displaying the Terms of Use content to the user. The appropriate Terms of Use content should be returned to the caller (Windows) so it can be displayed to the end user in the browser control. The Terms of Use content should contain the following buttons: - **Accept** - the user accepts the Terms of Use and proceeds with enrollment. - **Decline** - the user declines and stops the enrollment process. The Terms of Use content must be consistent with the theme used for the other pages rendered during this process. ### Terms of Use endpoint processing logic At this point, the user is on the Terms of Use page shown during the OOBE or from the Setting experiences. The user has the following options on the page: - **User clicks on the Accept button** - The MDM must redirect to the URI specified by the redirect\_uri parameter in the incoming request. The following query string parameters are expected: - **IsAccepted** - This Boolean value is required, and must be set to true. - **OpaqueBlob** - Required parameter if the user accepts. The MDM may use this blob to make some information available to the enrollment endpoint. The value persisted here is made available unchanged at the enrollment endpoint. The MDM may use this parameter for correlation purposes. - Here's an example redirect - `ms-appx-web://MyApp1/ToUResponse?OpaqueBlob=value&IsAccepted=true` - **User clicks on the Decline button** - The MDM must redirect to the URI specified in redirect\_uri in the incoming request. The following query string parameters are expected: - **IsAccepted** - This Boolean value is required, and must be set to false. This option also applies if the user skipped the Terms of Use. - **OpaqueBlob** - This parameter isn't expected to be used. The enrollment is stopped with an error message shown to the user. Users skip the Terms of Use when they're adding a Microsoft work account to their device. However, they can't skip it during the Azure AD Join process. Don't show the decline button in the Azure AD Join process. MDM enrollment can't be declined by the user if configured by the administrator for the Azure AD Join. We recommend that you send the client-request-id parameters in the query string as part of this redirect response. ### Terms Of Use Error handling If an error occurs during the terms of use processing, the MDM can return two parameters – an error and error\_description parameter in its redirect request back to Windows. The URL should be encoded, and the contents of the error\_description should be in English plain text. This text isn't visible to the end-user. So, localization of the error description text isn't a concern. Here's the URL format: ```console HTTP/1.1 302 Location: ?error=access_denied&error_description=Access%20is%20denied%2E Example: HTTP/1.1 302 Location: ms-appx-web://App1/ToUResponse?error=access_denied&error_description=Access%20is%20denied%2E ``` The following table shows the error codes.
Cause HTTP status Error Description

api-version

302

invalid_request

unsupported version

Tenant or user data are missing or other required prerequisites for device enrollment are not met

302

unauthorized_client

unauthorized user or tenant

Azure AD token validation failed

302

unauthorized_client

unauthorized_client

internal service error

302

server_error

internal service error
## Enrollment protocol with Azure AD With Azure integrated MDM enrollment, there's no discovery phase and the discovery URL is directly passed down to the system from Azure. The following table shows the comparison between the traditional and Azure enrollments.
Detail Traditional MDM enrollment Azure AD Join (organization-owned device) Azure AD adds a work account (user-owned device)

MDM auto-discovery using email address to retrieve MDM discovery URL

Enrollment

Not applicable

Discovery URL provisioned in Azure

Uses MDM discovery URL

Enrollment

Enrollment renewal

ROBO

Enrollment

Enrollment renewal

ROBO

Enrollment

Enrollment renewal

ROBO

Is MDM enrollment required?

Yes

Yes

No

User can decline.

Authentication type

OnPremise

Federated

Certificate

Federated

Federated

EnrollmentPolicyServiceURL

Optional (all auth)

Optional (all auth)

Optional (all auth)

EnrollmentServiceURL

Required (all auth)

Used (all auth)

Used (all auth)

EnrollmentServiceURL includes OS Version, OS Platform, and other attributes provided by MDM discovery URL

Highly recommended

Highly recommended

Highly recommended

AuthenticationServiceURL used

Used (Federated auth)

Skipped

Skipped

BinarySecurityToken

Custom per MDM

Azure AD issued token

Azure AD issued token

EnrollmentType

Full

Device

Full

Enrolled certificate type

User certificate

Device certificate

User certificate

Enrolled certificate store

My/User

My/System

My/User

CSR subject name

User Principal Name

Device ID

User Principal Name

EnrollmentData Terms of Use binary blob as AdditionalContext for EnrollmentServiceURL

Not supported

Supported

Supported

CSPs accessible during enrollment

Windows 10 support:

  • DMClient
  • CertificateStore
  • RootCATrustedCertificates
  • ClientCertificateInstall
  • EnterpriseModernAppManagement
  • PassportForWork
  • Policy
  • w7 APPLICATION
## Management protocol with Azure AD There are two different MDM enrollment types that integrate with Azure AD, and use Azure AD user and device identities. Depending on the enrollment type, the MDM service may need to manage a single user or multiple users. **Multiple user management for Azure AD joined devices** In this scenario the MDM enrollment applies to every Azure AD user who signs in to the Azure AD joined device - call this enrollment type a device enrollment or a multi-user enrollment. The management server can determine the user identity, determine what policies are targeted for this user, and send corresponding policies to the device. To allow management server to identify current user that is logged on to the device, the OMA DM client uses the Azure AD user tokens. Each management session contains an additional HTTP header that contains an Azure AD user token. This information is provided in the DM package sent to the management server. However, in some circumstances Azure AD user token isn't sent over to the management server. One such scenario happens immediately after MDM enrollments completes during Azure AD join process. Until Azure AD join process is finished and Azure AD user signs on to the machine, Azure AD user token isn't available to OMA-DM process. Typically MDM enrollment completes before Azure AD user sign in to machine and the initial management session does not contain an Azure AD user token. The management server should check if the token is missing and only send device policies in such case. Another possible reason for a missing Azure AD token in the OMA-DM payload is when a guest user is logged on to the device. **Adding a work account and MDM enrollment to a device** In this scenario, the MDM enrollment applies to a single user who initially added their work account and enrolled the device. In this enrollment type, the management server can ignore Azure AD tokens that may be sent over during management session. Whether Azure AD token is present or missing, the management server sends both user and device policies to the device. **Evaluating Azure AD user tokens** The Azure AD token is in the HTTP Authorization header in the following format: ```console Authorization:Bearer ``` Additional claims may be present in the Azure AD token, such as: - User - user currently logged in - Device compliance - value set the MDM service into Azure - Device ID - identifies the device that is checking in - Tenant ID Access tokens issued by Azure AD are JSON web tokens (JWTs). A valid JWT token is presented by Windows at the MDM enrollment endpoint to start the enrollment process. There are a couple of options to evaluate the tokens: - Use the JWT Token Handler extension for WIF to validate the contents of the access token and extract claims required for use. For more information, see [JSON Web Token Handler](/previous-versions/dotnet/framework/security/json-web-token-handler). - Refer to the Azure AD authentication code samples to get a sample for working with access tokens. For an example, see [NativeClient-DotNet](https://go.microsoft.com/fwlink/p/?LinkId=613667). ## Device Alert 1224 for Azure AD user token An alert is sent when the DM session starts and there's an Azure AD user logged in. The alert is sent in OMA DM pkg\#1. Here's an example: ```xml Alert Type: com.microsoft/MDM/AADUserToken Alert sample: 1 1224 com.microsoft/MDM/AADUserToken UserToken inserted here … other XML tags … ``` ## Determine when a user is logged in through polling An alert is sent to the MDM server in DM package\#1. - Alert type - com.microsoft/MDM/LoginStatus - Alert format - chr - Alert data - provide login status information for the current active logged in user. - Logged in user who has an Azure AD account - predefined text: user. - Logged in user without an Azure AD account- predefined text: others. - No active user - predefined text:none Here's an example. ```xml 1 1224 com.microsoft/MDM/LoginStatus user … other XML tags … ``` ## Report device compliance to Azure AD Once a device is enrolled with the MDM for management, organization policies configured by the IT administrator are enforced on the device. The device compliance with configured policies is evaluated by the MDM and then reported to Azure AD. This section covers the Graph API call you can use to report a device compliance status to Azure AD. For a sample that illustrates how an MDM can obtain an access token using OAuth 2.0 client\_credentials grant type, see [Daemon\_CertificateCredential-DotNet](https://go.microsoft.com/fwlink/p/?LinkId=613822). - **Cloud-based MDM** - If your product is a cloud-based multi-tenant MDM service, you have a single key configured for your service within your tenant. To obtain authorization, use this key to authenticate the MDM service with Azure AD. - **On-premises MDM** - If your product is an on-premises MDM, customers must configure your product with the key used to authenticate with Azure AD. This key configuration is because each on-premises instance of your MDM product has a different tenant-specific key. So, you may need to expose a configuration experience in your MDM product that enables administrators to specify the key to be used to authenticate with Azure AD. ### Use Azure AD Graph API The following sample REST API call illustrates how an MDM can use the Azure AD Graph API to report compliance status of a device being managed by it. > [!NOTE] > This API is only applicable for approved MDM apps on Windows 10 devices. ```console Sample Graph API Request: PATCH https://graph.windows.net/contoso.com/devices/db7ab579-3759-4492-a03f-655ca7f52ae1?api-version=beta HTTP/1.1 Authorization: Bearer eyJ0eXAiO……… Accept: application/json Content-Type: application/json { "isManaged":true, "isCompliant":true } ``` Where: - **contoso.com** – This value is the name of the Azure AD tenant to whose directory the device has been joined. - **db7ab579-3759-4492-a03f-655ca7f52ae1** – This value is the device identifier for the device whose compliance information is being reported to Azure AD. - **eyJ0eXAiO**……… – This value is the bearer access token issued by Azure AD to the MDM that authorizes the MDM to call the Azure AD Graph API. The access token is placed in the HTTP authorization header of the request. - **isManaged** and **isCompliant** - These Boolean attributes indicates compliance status. - **api-version** - Use this parameter to specify which version of the graph API is being requested. Response: - Success - HTTP 204 with No Content. - Failure/Error - HTTP 404 Not Found. This error may be returned if the specified device or tenant can't be found. ## Data loss during unenrollment from Azure Active Directory Join When a user is enrolled into MDM through Azure Active Directory Join and then disconnects the enrollment, there's no warning that the user will lose Windows Information Protection (WIP) data. The disconnection message does not indicate the loss of WIP data. ![aadj unenrollment.](images/azure-ad-unenrollment.png) ## Error codes
Code ID Error message
0x80180001 "idErrorServerConnectivity", // MENROLL_E_DEVICE_MESSAGE_FORMAT_ERROR

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x80180002 "idErrorAuthenticationFailure", // MENROLL_E_DEVICE_AUTHENTICATION_ERROR

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
0x80180003 "idErrorAuthorizationFailure", // MENROLL_E_DEVICE_AUTHORIZATION_ERROR

This user isn't authorized to enroll. You can try to do this again or contact your system administrator with the error code {0}.
0x80180004 "idErrorMDMCertificateError", // MENROLL_E_DEVICE_CERTIFCATEREQUEST_ERROR

There was a certificate error. You can try to do this again or contact your system administrator with the error code {0}.
0x80180005 "idErrorServerConnectivity", // MENROLL_E_DEVICE_CONFIGMGRSERVER_ERROR

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x80180006 "idErrorServerConnectivity", // MENROLL_E_DEVICE_CONFIGMGRSERVER_ERROR

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x80180007 "idErrorAuthenticationFailure", // MENROLL_E_DEVICE_INVALIDSECURITY_ERROR

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
0x80180008 "idErrorServerConnectivity", // MENROLL_E_DEVICE_UNKNOWN_ERROR

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x80180009 "idErrorAlreadyInProgress", // MENROLL_E_ENROLLMENT_IN_PROGRESS

Another enrollment is in progress. You can try to do this again or contact your system administrator with the error code {0}.
0x8018000A "idErrorMDMAlreadyEnrolled", // MENROLL_E_DEVICE_ALREADY_ENROLLED

This device is already enrolled. You can contact your system administrator with the error code {0}.
0x8018000D "idErrorMDMCertificateError", // MENROLL_E_DISCOVERY_SEC_CERT_DATE_INVALID

There was a certificate error. You can try to do this again or contact your system administrator with the error code {0}.
0x8018000E "idErrorAuthenticationFailure", // MENROLL_E_PASSWORD_NEEDED

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
0x8018000F "idErrorAuthenticationFailure", // MENROLL_E_WAB_ERROR

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
0x80180010 "idErrorServerConnectivity", // MENROLL_E_CONNECTIVITY

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x80180012 "idErrorMDMCertificateError", // MENROLL_E_INVALIDSSLCERT

There was a certificate error. You can try to do this again or contact your system administrator with the error code {0}.
0x80180013 "idErrorDeviceLimit", // MENROLL_E_DEVICECAPREACHED

Looks like there are too many devices or users for this account. Contact your system administrator with the error code {0}.
0x80180014 "idErrorMDMNotSupported", // MENROLL_E_DEVICENOTSUPPORTED

This feature isn't supported. Contact your system administrator with the error code {0}.
0x80180015 "idErrorMDMNotSupported", // MENROLL_E_NOTSUPPORTED

This feature isn't supported. Contact your system administrator with the error code {0}.
0x80180016 "idErrorMDMRenewalRejected", // MENROLL_E_NOTELIGIBLETORENEW

The server did not accept the request. You can try to do this again or contact your system administrator with the error code {0}.
0x80180017 "idErrorMDMAccountMaintenance", // MENROLL_E_INMAINTENANCE

The service is in maintenance. You can try to do this again later or contact your system administrator with the error code {0}.
0x80180018 "idErrorMDMLicenseError", // MENROLL_E_USERLICENSE

There was an error with your license. You can try to do this again or contact your system administrator with the error code {0}.
0x80180019 "idErrorInvalidServerConfig", // MENROLL_E_ENROLLMENTDATAINVALID

Looks like the server isn't correctly configured. You can try to do this again or contact your system administrator with the error code {0}.
"rejectedTermsOfUse" "idErrorRejectedTermsOfUse"

Your organization requires that you agree to the Terms of Use. Please try again or ask your support person for more information.
0x801c0001 "idErrorServerConnectivity", // DSREG_E_DEVICE_MESSAGE_FORMAT_ERROR

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x801c0002 "idErrorAuthenticationFailure", // DSREG_E_DEVICE_AUTHENTICATION_ERROR

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
0x801c0003 "idErrorAuthorizationFailure", // DSREG_E_DEVICE_AUTHORIZATION_ERROR

This user isn't authorized to enroll. You can try to do this again or contact your system administrator with the error code {0}.
0x801c0006 "idErrorServerConnectivity", // DSREG_E_DEVICE_INTERNALSERVICE_ERROR

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x801c000B "idErrorUntrustedServer", // DSREG_E_DISCOVERY_REDIRECTION_NOT_TRUSTED The server being contacted isn't trusted. Contact your system administrator with the error code {0}.
0x801c000C "idErrorServerConnectivity", // DSREG_E_DISCOVERY_FAILED

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x801c000E "idErrorDeviceLimit", // DSREG_E_DEVICE_REGISTRATION_QUOTA_EXCCEEDED

Looks like there are too many devices or users for this account. Contact your system administrator with the error code {0}.
0x801c000F "idErrorDeviceRequiresReboot", // DSREG_E_DEVICE_REQUIRES_REBOOT

A reboot is required to complete device registration.
0x801c0010 "idErrorInvalidCertificate", // DSREG_E_DEVICE_AIK_VALIDATION_ERROR

Looks like you have an invalid certificate. Contact your system administrator with the error code {0}.
0x801c0011 "idErrorAuthenticationFailure", // DSREG_E_DEVICE_ATTESTATION_ERROR

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
0x801c0012 "idErrorServerConnectivity", // DSREG_E_DISCOVERY_BAD_MESSAGE_ERROR

There was an error communicating with the server. You can try to do this again or contact your system administrator with the error code {0}
0x801c0013 "idErrorAuthenticationFailure", // DSREG_E_TENANTID_NOT_FOUND

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
0x801c0014 "idErrorAuthenticationFailure", // DSREG_E_USERSID_NOT_FOUND

There was a problem authenticating your account or device. You can try to do this again or contact your system administrator with the error code {0}.
