--- title: Technical information for 84" Surface Hub ms.reviewer: manager: dansimp description: Specifications for the 84" Surface Hub ms.prod: surface-hub ms.sitesec: library author: dansimp ms.author: dansimp ms.topic: article ms.localizationpriority: medium --- # Technical information for 84" Surface Hub ## Measurements | --- | --- Pricing | Starting at $21,999 Size | 46.12” x 86.7” x 4.15” (1171.5mm x 2202.9mm x 105.4mm) Storage/RAM | SSD 128GB with 8GB RAM Processor | 4th Generation Intel® Core™ i7 Graphics | NVIDIA Quadro K2200 Ports | **Internal PC**
• (1) USB 3.0 (bottom) + (1) USB 3.0 (side access)
• (4) USB 2.0
• Ethernet 1000 Base-T
• DisplayPort Video Output
• 3.5mm Stereo Out
• RJ11 Connector for system-level control
**Alternate PC**
• (2) USB 2.0 type B output
• connection for Camera, Sensors, Microphone, Speakers
• (2) DisplayPort Video Input
**Guest PC**
• DisplayPort Video Input
• HDMI Video Input
• VGA Video Input
• 3.5mm Stereo Input
• (1) USB 2.0 type B Touchback™ Output Sensors | (2) Passive Infrared Presence Sensors, Ambient Light Sensors Speakers | (2) Front-facing stereo speakers Microphone | High-Performance, 4-Element Array Camera | (2) Wide angle HD cameras 1080p @ 30fps Pen | (2) Powered, active, subpixel accuracy Physical side buttons | Power, Input Select, Volume, Brightness Software | Windows 10 + Office (Word, PowerPoint, Excel) What’s in the box | • Surface Hub 84”
• (2) Surface Hub Pens
• Power Cable
• Setup Guide
• Safety and Warranty documents

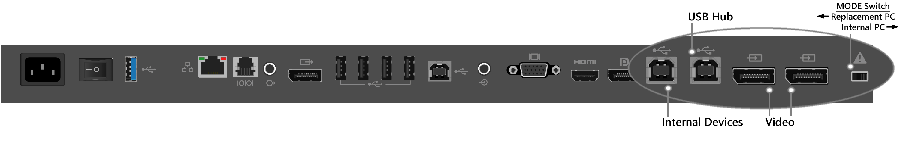

• Wireless All-in-One Keyboard Mounting features | 4X VESA standard, 1200mm x 600mm pattern, 8X M8 X 1.25 threaded mounting locations Display height from floor | Recommended height of 54 inches (139.7 cm) to center of screen Product weight | Approx. 280 lb. (127 kg.) Product shipping weight | Approx. 580 lb. (263 kg.) Product dimensions HxWxD | 46 x 86.9 x 4.1 inches (116.8 x 220.6 x 10.4 cm) Product shipping dimensions HxWxD | 66.14 x 88.19 x 24.4 inches (168 x 224 x 62 cm) Product thickness | Touch surface to mounting surface: ≤ 3.1 inches (7.8 cm) Orientation | Landscape only. Display cannot be used in a portrait orientation. BTU | 3070.8 BTU/h Image resolution | 3840 x 2160 Frame rate | 120Hz Contrast Ratio | 1400:1 EDID preferred timing, replacement PC | 3840 x 2140, 120Hz vertical refresh EDID preferred timing, wired connect | 1920 x 1080, 60Hz vertical refresh Input voltage | 110/230v nominal, 90-265v max Input power, operating | 900W max Input power, standby | 5W nominal, 1-10W max ## Replacement PC connections Connector and location | Label | Description --- | --- | --- Switch, bottom I/O | ![](images/switch.png) | Switches the function between using internal PC or external PC. Display port, bottom I/O | ![](images/dport.png) | Provides input for replacement PC. Display port, bottom I/O | ![](images/dport.png) | Provides second input for replacement PC. USB type B, bottom I/O | ![](images/usb.png) | Provides USB connection for replacement PC to internal peripherals. USB type B, bottom I/O | ![](images/usb.png) | Provides USB connection for integrated hub. ## Wired connect connections Connector and location | Label | Description --- | --- | --- Display port, bottom I/O | ![](images/dportio.png) | Provides input for wired connect PC. HDMI, bottom I/O | ![](images/hdmi.png) | Provides HDMI input for wired connect PC. VGA, bottom I/O | ![](images/vga.png) | Provides VGA input for wired connect PC. 3.5mm, bottom I/O | ![](images/35mm.png) | Provides analog audio input. USB type B, bottom I/O | ![](images/usb.png) | Provides USB connection for video ingest touchback. ## Additional connections Connector and location | Label | Description --- | --- | --- USB type A, side I/O | ![](images/usb.png) | Provides 1 USB 3.0 connection for USB devices. Wake-on USB capable. USB type A, bottom I/O with blue insulator | ![](images/usb.png) | Provides USB 3.0 connection. 3.5mm, bottom I/O | ![](images/analog.png) | Provides analog audio out. Display port, bottom I/O | ![](images/dportout.png) | Provides mirrored video out function to another display. IEC/EN60320-C13 receptacle with hard switch | ![](images/iec.png) | Provides AC input and compliance with EU power requirements. RJ45, bottom I/O | ![](images/rj45.png) | Connects to Ethernet. RJ11, bottom I/O | ![](images/rj11.png) | Connects to room control systems. ## Diagrams of ports and clearances ***Top view of 84" Surface Hub*** ![](images/sh-84-top.png) --- ***Front view of 84" Surface Hub*** ![](images/sh-84-front.png) --- ***Bottom view of 84" Surface Hub*** ![](images/sh-84-bottom.png) --- ***Replacement PC ports on 84" Surface Hub*** ![](images/sh-84-rpc-ports.png) --- ***Rear view of 84" Surface Hub*** ![](images/sh-84-rear.png) --- ***Clearances for 84" Surface Hub*** ![](images/sh-84-clearance.png) --- ***Removable lifting handles on 84” Surface Hub *** ![](images/sh-84-hand.png) --- ***Wall mount threads on back of 84” Surface Hub *** ![](images/sh-84-wall.png) --- ***Lifting handles in top view of 84” Surface Hub*** ![](images/sh-84-hand-top.png) --- ***Side view of 84” Surface Hub*** ![](images/sh-84-side.png)
