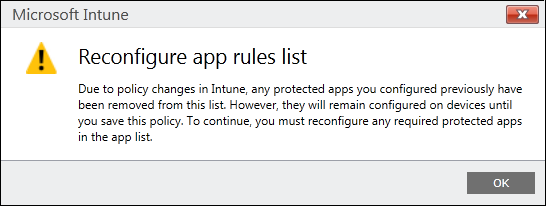

To prepare for this change, we recommend that you make an immediate backup of your current app rules as they are today, so you can use them to help reconfigure your app rules with the enhanced experience. When you open an existing Windows Information Protection policy after we release the June service update, you'll get a dialog box telling you about this change. Click the **OK** button to close the box and to begin reconfiguring your app rules.
Note that if you exit the **Policy** page before you've saved your new policy, your existing deployments won't be affected. However, if you save the policy without reconfiguring your apps, an updated policy will be deployed to your employees with an empty app rules list.
## Add a WIP policy
After you’ve set up Intune for your organization, you must create a WIP-specific policy.
**To add a WIP policy**
1. Open the Intune administration console, and go to the **Policy** node, and then click **Add Policy** from the **Tasks** area.
2. Go to **Windows**, click the **Windows Information Protection (Windows 10 Desktop and Mobile and later) policy**, click **Create and Deploy a Custom Policy**, and then click **Create Policy**.
3. Type a name (required) and an optional description for your policy into the **Name** and **Description** boxes.
### Add app rules to your policy
During the policy-creation process in Intune, you can choose the apps you want to give access to your enterprise data through WIP. Apps included in this list can protect data on behalf of the enterprise and are restricted from copying or moving enterprise data to unprotected apps.
The steps to add your app rules are based on the type of rule template being applied. You can add a store app (also known as a Universal Windows Platform (UWP) app), a signed Windows desktop app, or an AppLocker policy file.
>**Important**
WIP-aware apps are expected to prevent enterprise data from going to unprotected network locations and to avoid encrypting personal data. On the other hand, WIP-unaware apps might not respect the corporate network boundary, and WIP-unaware apps will encrypt all files they create or modify. This means that they could encrypt personal data and cause data loss during the revocation process.
Care must be taken to get a support statement from the software provider that their app is safe with WIP before adding it to your **App Rules** list. If you don’t get this statement, it’s possible that you could experience app compat issues due to an app losing the ability to access a necessary file after revocation.
>**Note**
If you want to use **File hash** or **Path** rules, instead of **Publisher** rules, you must follow the steps in the [Add apps to your Windows Information Protection (WIP) policy by using the Microsoft Intune custom URI functionality](add-apps-to-protected-list-using-custom-uri.md) topic.
#### Add a store app rule to your policy
For this example, we’re going to add Microsoft OneNote, a store app, to the **App Rules** list.
**To add a store app**
1. From the **App Rules** area, click **Add**.
The **Add App Rule** box appears.
2. Add a friendly name for your app into the **Title** box. In this example, it’s *Microsoft OneNote*.
3. Click **Allow** from the **Windows Information Protection mode** drop-down list.
Allow turns on WIP, helping to protect that app’s corporate data through the enforcement of WIP restrictions. Instructions for exempting an app are included in the [Exempt apps from WIP restrictions](#exempt-apps-from-wip-restrictions) section of this topic.
4. Pick **Store App** from the **Rule template** drop-down list.
The box changes to show the store app rule options.
5. Type the name of the app and the name of its publisher, and then click **OK**. For this UWP app example, the **Publisher** is `CN=Microsoft Corporation, O=Microsoft Corporation, L=Redmond, S=Washington, C=US` and the **Product name** is `Microsoft.Office.OneNote`.
If you don't know the publisher or product name, you can find them for both desktop devices and Windows 10 Mobile phones by following these steps.
**To find the Publisher and Product Name values for Store apps without installing them**
1. Go to the [Windows Store for Business](http://go.microsoft.com/fwlink/p/?LinkID=722910) website, and find your app. For example, *Microsoft OneNote*.
>**Note**
If your app is already installed on desktop devices, you can use the AppLocker local security policy MMC snap-in to gather the info for adding the app to the protected apps list. For info about how to do this, see the [Add apps to your Windows Information Protection (WIP) policy by using the Microsoft Intune custom URI functionality](add-apps-to-protected-list-using-custom-uri.md) topic.
2. Copy the ID value from the app URL. For example, Microsoft OneNote's ID URL is https://www.microsoft.com/store/apps/onenote/9wzdncrfhvjl, and you'd copy the ID value, `9wzdncrfhvjl`.
3. In a browser, run the Store for Business portal web API, to return a JavaScript Object Notation (JSON) file that includes the publisher and product name values. For example, run https://bspmts.mp.microsoft.com/v1/public/catalog/Retail/Products/9wzdncrfhvjl/applockerdata, where `9wzdncrfhvjl` is replaced with your ID value.
The API runs and opens a text editor with the app details.
```json
{
"packageIdentityName": "Microsoft.Office.OneNote",
"publisherCertificateName": "CN=Microsoft Corporation, O=Microsoft Corporation, L=Redmond, S=Washington, C=US"
}
```
4. Copy the `publisherCertificateName` value into the **Publisher Name** box and copy the `packageIdentityName` value into the **Product Name** box of Intune.
>**Important**
The JSON file might also return a `windowsPhoneLegacyId` value for both the **Publisher Name** and **Product Name** boxes. This means that you have an app that’s using a XAP package and that you must set the **Product Name** as `windowsPhoneLegacyId`, and set the **Publisher Name** as `CN=` followed by the `windowsPhoneLegacyId`.
For example:
```json
{
"windowsPhoneLegacyId": "ca05b3ab-f157-450c-8c49-a1f127f5e71d",
}
```
**To find the Publisher and Product Name values for apps installed on Windows 10 mobile phones**
1. If you need to add mobile apps that aren't distributed through the Store for Business, you must use the **Windows Device Portal** feature.
>**Note**
Your PC and phone must be on the same wireless network.
2. On the Windows Phone, go to **Settings**, choose **Update & security**, and then choose **For developers**.
3. In the **For developers** screen, turn on **Developer mode**, turn on **Device Discovery**, and then turn on **Device Portal**.
4. Copy the URL in the **Device Portal** area into your device's browser, and then accept the SSL certificate.
5. In the **Device discovery** area, press **Pair**, and then enter the PIN into the website from the previous step.
6. On the **Apps** tab of the website, you can see details for the running apps, including the publisher and product names.
7. Start the app for which you're looking for the publisher and product name values.
8. Copy the `publisherCertificateName` value and paste it into the **Publisher Name** box and the `packageIdentityName` value into the **Product Name** box of Intune.
>**Important**
The JSON file might also return a `windowsPhoneLegacyId` value for both the **Publisher Name** and **Product Name** boxes. This means that you have an app that’s using a XAP package and that you must set the **Product Name** as `windowsPhoneLegacyId`, and set the **Publisher Name** as `CN=` followed by the `windowsPhoneLegacyId`.
For example:
``` json
{
"windowsPhoneLegacyId": "ca05b3ab-f157-450c-8c49-a1f127f5e71d",
}
```
#### Add a desktop app rule to your policy
For this example, we’re going to add Internet Explorer, a desktop app, to the **App Rules** list.
**To add a desktop app**
1. From the **App Rules** area, click **Add**.
The **Add App Rule** box appears.
2. Add a friendly name for your app into the **Title** box. In this example, it’s *Internet Explorer*.
3. Click **Allow** from the **Windows Information Protection mode** drop-down list.
Allow turns on WIP, helping to protect that app’s corporate data through the enforcement of WIP restrictions. Instructions for exempting an app are included in the [Exempt apps from WIP restrictions](#exempt-apps-from-wip-restrictions) section of this topic.
4. Pick **Desktop App** from the **Rule template** drop-down list.
The box changes to show the store app rule options.
5. Pick the options you want to include for the app rule (see table), and then click **OK**.
| Option | Manages |
|---|---|
| All fields left as “*” | All files signed by any publisher. (Not recommended.) |
| Publisher selected | All files signed by the named publisher. This might be useful if your company is the publisher and signer of internal line-of-business apps. |
| Publisher and Product Name selected | All files for the specified product, signed by the named publisher. |
| Publisher, Product Name, and Binary name selected | Any version of the named file or package for the specified product, signed by the named publisher. |
| Publisher, Product Name, Binary name, and File Version, and above, selected | Specified version or newer releases of the named file or package for the specified product, signed by the named publisher. This option is recommended for enlightened apps that weren't previously enlightened. |
| Publisher, Product Name, Binary name, and File Version, And below selected | Specified version or older releases of the named file or package for the specified product, signed by the named publisher. |
| Publisher, Product Name, Binary name, and File Version, Exactly selected | Specified version of the named file or package for the specified product, signed by the named publisher. |

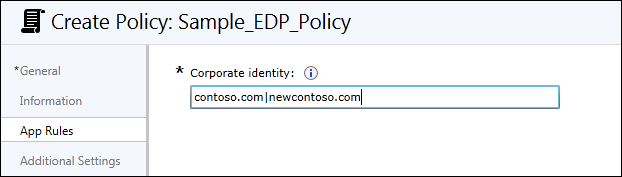

After you turn off WIP, an attempt is made to decrypt any closed WIP-tagged files on the locally attached drives.|  ### Define your enterprise-managed corporate identity Corporate identity, usually expressed as your primary Internet domain (for example, contoso.com), helps to identify and tag your corporate data from apps you’ve marked as protected by WIP. For example, emails using contoso.com are identified as being corporate and are restricted by your Windows Information Protection policies. You can specify multiple domains owned by your enterprise by separating them with the "|" character. For example, (`contoso.com|newcontoso.com`). With multiple domains, the first one is designated as your corporate identity and all of the additional ones as being owned by the first one. We strongly recommend that you include all of your email address domains in this list. **To add your corporate identity** - Type the name of your corporate identity into the **Corporate identity** field. For example, `contoso.com` or `contoso.com|newcontoso.com`.  ### Choose where apps can access enterprise data After you've added a protection mode to your apps, you'll need to decide where those apps can access enterprise data on your network. There are no default locations included with WIP, you must add each of your network locations. This area applies to any network endpoint device that gets an IP address in your enterprise’s range and is also bound to one of your enterprise domains, including SMB shares. Local file system locations should just maintain encryption (for example, on local NTFS, FAT, ExFAT). >**Important** - Every WIP policy should include policy that defines your enterprise network locations. - Classless Inter-Domain Routing (CIDR) notation isn’t supported for WIP configurations. **To define where your protected apps can find and send enterprise data on you network** 1. Add additional network locations your apps can access by clicking **Add**. The **Add or edit corporate network definition** box appears. 2. Type a name for your corporate network element into the **Name** box, and then pick what type of network element it is, from the **Network element** drop-down box. This can include any of the options in the following table.
| Network location type | Format | Description |
|---|---|---|
| Enterprise Cloud Resources | **With proxy:** contoso.sharepoint.com,proxy.contoso.com| contoso.visualstudio.com,proxy.contoso.com **Without proxy:** contoso.sharepoint.com|contoso.visualstudio.com |
Specify the cloud resources to be treated as corporate and protected by WIP. For each cloud resource, you may also optionally specify an internal proxy server that routes your traffic through your Enterprise Internal Proxy Server. If you have multiple resources, you must separate them using the "|" delimiter. If you don’t use proxy servers, you must also include the "," delimiter just before the "|". For example: `URL <,proxy>|URL <,proxy>`. If Windows is unable to determine whether an app should be allowed to connect to a network resource, it will automatically block the connection. If instead you want Windows to allow the connections to happen, you can add the `/*AppCompat*/` string to this setting. For example: `URL <,proxy>|URL <,proxy>|/*AppCompat*/` |
| Enterprise Network Domain Names (Required) | corp.contoso.com,region.contoso.com | Specify the DNS suffixes used in your environment. All traffic to the fully-qualified domains appearing in this list will be protected. This setting works with the IP ranges settings to detect whether a network endpoint is enterprise or personal on private networks. If you have multiple resources, you must separate them using the "," delimiter. |
| Enterprise Proxy Servers | proxy.contoso.com:80;proxy2.contoso.com:137 | Specify your externally-facing proxy server addresses, along with the port through which traffic is allowed and protected with WIP. This list shouldn’t include any servers listed in the Enterprise Internal Proxy Servers list, which are used for WIP-protected traffic. This setting is also required if you use a proxy in your network. If you don't have a proxy server, you might find that enterprise resources are unavailable when a client is behind a proxy, such as when you’re visiting another company and not on that company’s guest network. If you have multiple resources, you must separate them using the ";" delimiter. |
| Enterprise Internal Proxy Servers | contoso.internalproxy1.com;contoso.internalproxy2.com | Specify the proxy servers your devices will go through to reach your cloud resources. Using this server type indicates that the cloud resources you’re connecting to are enterprise resources. This list shouldn’t include any servers listed in the Enterprise Proxy Servers list, which are used for non-WIP-protected traffic. If you have multiple resources, you must separate them using the ";" delimiter. |
| Enterprise IPv4 Range (Required, if not using IPv6) | **Starting IPv4 Address:** 3.4.0.1 **Ending IPv4 Address:** 3.4.255.254 **Custom URI:** 3.4.0.1-3.4.255.254, 10.0.0.1-10.255.255.254 |
Specify the addresses for a valid IPv4 value range within your intranet. These addresses, used with your Enterprise Network Domain Names, define your corporate network boundaries. If you have multiple ranges, you must separate them using the "," delimiter. |
| Enterprise IPv6 Range (Required, if not using IPv4) | **Starting IPv6 Address:** 2a01:110:: **Ending IPv6 Address:** 2a01:110:7fff:ffff:ffff:ffff:ffff:ffff **Custom URI:** 2a01:110:7fff:ffff:ffff:ffff:ffff:ffff, fd00::-fdff:ffff:ffff:ffff:ffff:ffff:ffff:ffff |
Specify the addresses for a valid IPv6 value range within your intranet. These addresses, used with your Enterprise Network Domain Names, define your corporate network boundaries. If you have multiple ranges, you must separate them using the "," delimiter. |
| Neutral Resources | sts.contoso.com,sts.contoso2.com | Specify your authentication redirection endpoints for your company. These locations are considered enterprise or personal, based on the context of the connection before the redirection. If you have multiple resources, you must separate them using the "," delimiter. |
