Office CSP
Warning
Some information relates to prereleased product which may be substantially modified before it's commercially released. Microsoft makes no warranties, express or implied, with respect to the information provided here.
The Office configuration service provider (CSP) enables a Microsoft Office client to be installed on a device via the Office Deployment Tool. For more information, see Configuration options for the Office Deployment Tool. This CSP was added in Windows 10, version 1703.
For additional information, see Office DDF.

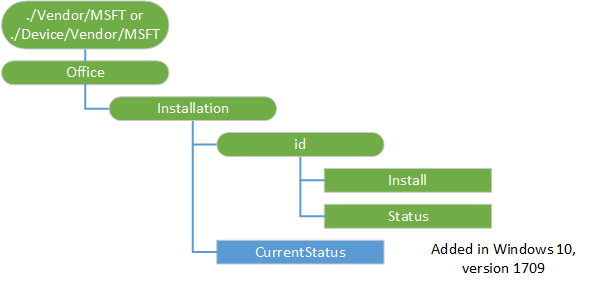

The following diagram shows the Office configuration service provider in tree format.
The root node for the Office configuration service provider.
Specifies the options for the Microsoft Office installation.
The supported operations are Add, Delete, Get, and Replace.
Specifies a unique identifier that represents the ID of the Microsoft Office product to install.
The supported operations are Add, Delete, Get, and Replace.
Installs Office by using the XML data specified in the configuration.xml file.
The supported operations are Get and Execute.
The Microsoft Office installation status.
The only supported operation is Get.
Returns an XML of current Office 365 installation status on the device.
The only supported operation is Get.
Examples
Sample SyncML to install Office 365 Business Retail from current channel.
<SyncML xmlns="SYNCML:SYNCML1.2">
<SyncBody>
<Exec>
<CmdID>7</CmdID>
<Item>
<Target>
<LocURI>./Vendor/MSFT/Office/Installation/0AA79349-F334-4859-96E8-B4AB43E9FEA0/install</LocURI>
</Target>
<Meta>
<Format xmlns="syncml:metinf">chr</Format>
</Meta>
<Data><Configuration><Add OfficeClientEdition="32" Channel="Current"><Product ID="O365BusinessRetail"><Language ID="en-us" /></Product></Add><Display Level="None" AcceptEULA="TRUE" /></Configuration></Data>
</Item>
</Exec>
<Final/>
</SyncBody>
</SyncML>
To uninstall the Office 365 from the system:
<SyncML xmlns="SYNCML:SYNCML1.2">
<SyncBody>
<Exec>
<CmdID>7</CmdID>
<Item>
<Target>
<LocURI>./Vendor/MSFT/Office/Installation/E24B23D8-94A8-4997-9E6E-8FF25025845B/install</LocURI>
</Target>
<Meta>
<Format xmlns="syncml:metinf">chr</Format>
</Meta>
<Data><Configuration><Remove All="TRUE"/><Display Level="None" AcceptEULA="TRUE" /></Configuration></Data>
</Item>
</Exec>
<Final/>
</SyncBody>
</SyncML>
To get the current status of Office 365 on the device.
<SyncML xmlns="SYNCML:SYNCML1.2">
<SyncBody>
<Get>
<CmdID>7</CmdID>
<Item>
<Target>
<LocURI>./Vendor/MSFT/Office/Installation/CurrentStatus</LocURI>
</Target>
</Item>
</Get>
<Final/>
</SyncBody>
</SyncML>
Status code
| Status | Description | Comment |
|---|---|---|
| 0 | Installation succeeded | OK |
| 997 | Installation in progress | Windows Information Protection |
| 13 (ERROR_INVALID_DATA) | Cannot verify signature of the downloaded ODT | Failure |
| 1460 (ERROR_TIMEOUT) | Failed to download ODT | Failure |
| 1603 (ERROR_INSTALL_FAILURE) | Failed any pre-req check.
|
Failure |
| 17002 | Failed to complete the process. Possible reasons:
|
Failure |
| 17004 | Unknown SKU | Failure |
| 0x8000ffff (E_UNEXPECTED) | Tried to uninstall when there is no C2R Office on the machine. | Failure |
