Diagnose MDM failures in Windows 10

To help diagnose enrollment or device management issues in Windows 10 devices managed by an MDM server, you can examine the MDM logs collected from the desktop or mobile device. The following sections describe the procedures for collecting MDM logs.

Download the MDM Diagnostic Information log from Windows 10 PCs

  1. On your managed device go to Settings > Accounts > Access work or school.

  2. Click your work or school account, then click Info.
    Access work or school page in Settings

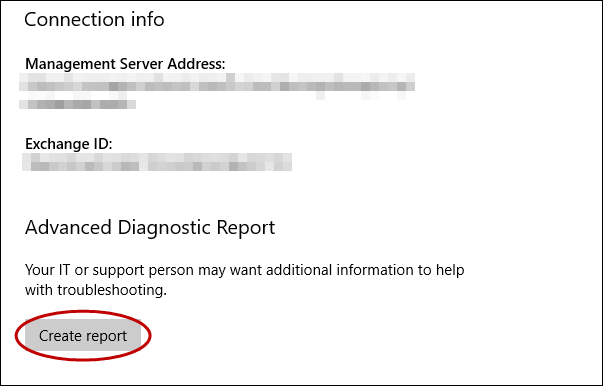

  3. At the bottom of the Settings page, click Create report.
    Access work or school page in Settings

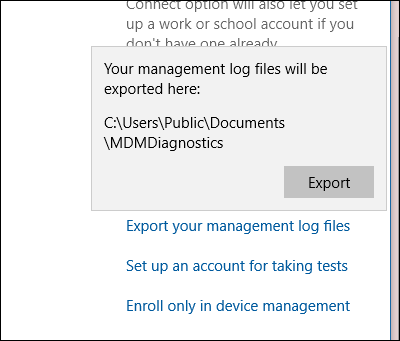

  4. A window opens that shows the path to the log files. Click Export.

    Access work or school page in Settings

  5. In File Explorer, navigate to c:\Users\Public\Documents\MDMDiagnostics to see the report.

Collect logs directly from Windows 10 PCs

Starting with the Windows 10, version 1511, MDM logs are captured in the Event Viewer in the following location:

  • Applications and Services Logs > Microsoft > Windows > DeviceManagement-Enterprise-Diagnostic-Provider

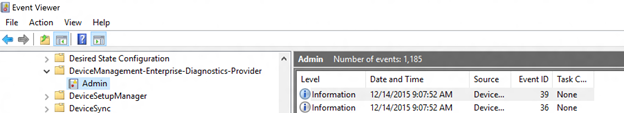

Here's a screenshot:

mdm event viewer

In this location, the Admin channel logs events by default. However, if you need more details logs you can enable Debug logs by choosing Show Analytic and Debug logs option in View menu in Event Viewer.

To collect Admin logs

  1. Right click on the Admin node.
  2. Select Save all events as.
  3. Choose a location and enter a filename.
  4. Click Save.
  5. Choose Display information for these languages and then select English.
  6. Click Ok.

For more detailed logging, you can enable Debug logs. Right click on the Debug node and then click Enable Log.

To collect Debug logs

  1. Right click on the Debug node.
  2. Select Save all events as.
  3. Choose a location and enter a filename.
  4. Click Save.
  5. Choose Display information for these languages and then select English.
  6. Click Ok.

You can open the log files (.evtx files) in the Event Viewer on a Windows 10 PC running the November 2015 update.

Collect logs remotely from Windows 10 PCs

When the PC is already enrolled in MDM, you can remotely collect logs from the PC through the MDM channel if your MDM server supports this. The DiagnosticLog CSP can be used to enable an event viewer channel by full name. Here are the Event Viewer names for the Admin and Debug channels:

  • Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FAdmin
  • Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FDebug

Example: Enable the Debug channel logging

<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FDebug/State</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">bool</Format>
                </Meta>
                <Data>true</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

Example: Export the Debug logs

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FDebug/Export</LocURI>
                </Target>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

Collect logs from Windows 10 Mobile devices

Since there is no Event Viewer in Windows 10 Mobile, you can use the Field Medic app to collect logs.

To collect logs manually

  1. Download and install the Field Medic app from the store.

  2. Open the Field Medic app and then click on Advanced.

    field medic screenshot

  3. Click on Choose with ETW provider to use.

    field medic screenshot

  4. Check Enterprise and un-check the rest.

    field medic screenshot

  5. In the app, click on Start Logging and then perform the operation that you want to troubleshoot.

    field medic screenshot

  6. When the operation is done, click on Stop Logging.

    field medic screenshot

  7. Save the logs. They will be stored in the Field Medic log location on the device.

  8. You can send the logs via email by attaching the files from Documents > Field Medic > Reports > ... folder.

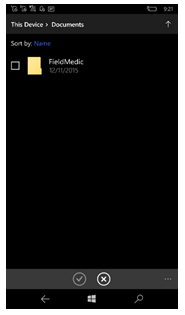

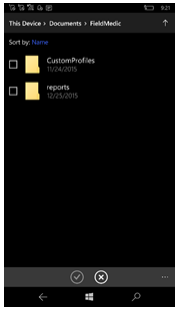

    device documents folderdevice folder screenshotdevice folder screenshot

The following table contains a list of common providers and their corresponding GUIDs.

GUID Provider Name
099614a5-5dd7-4788-8bc9-e29f43db28fc Microsoft-Windows-LDAP-Client
0f67e49f-fe51-4e9f-b490-6f2948cc6027 Microsoft-Windows-Kernel-Processor-Power
0ff1c24b-7f05-45c0-abdc-3c8521be4f62 Microsoft-Windows-Mobile-Broadband-Experience-SmsApi
10e4f0e0-9686-4e62-b2d6-fd010eb976d3 Microsoft-WindowsPhone-Shell-Events
1e39b4ce-d1e6-46ce-b65b-5ab05d6cc266 Microsoft-Windows-Networking-RealTimeCommunication
22a7b160-f6e8-46b9-8e0b-a51989c85c66 Microsoft-WindowsPhone-Bluetooth-AG
2f94e1cc-a8c5-4fe7-a1c3-53d7bda8e73e Microsoft-WindowsPhone-ConfigManager2
331c3b3a-2005-44c2-ac5e-77220c37d6b4 Microsoft-Windows-Kernel-Power
33693e1d-246a-471b-83be-3e75f47a832d Microsoft-Windows-BTH-BTHUSB
3742be72-99a9-42e6-9fd5-c01a330e3625 Microsoft-WindowsPhone-PhoneAudio
3b9602ff-e09b-4c6c-bc19-1a3dfa8f2250 Microsoft-WindowsPhone-OmaDm-Client-Provider
3da494e4-0fe2-415C-b895-fb5265c5c83b Microsoft-WindowsPhone-Enterprise-Diagnostics-Provider
3f471139-acb7-4a01-b7a7-ff5da4ba2d43 Microsoft-Windows-AppXDeployment-Server
4180c4f7-e238-5519-338f-ec214f0b49aa Microsoft.Windows.ResourceManager
4637124c-1d40-4b4d-892f-2aaecf24ff06 Microsoft-Windows-WinJson
4d13548f-c7b8-4174-bb7a-d7f64bf22d29 Microsoft-WindowsPhone-LocationServiceProvider
4eacb4d0-263b-4b93-8cd6-778a278e5642 Microsoft-Windows-GenericRoaming
4f386063-ef17-4629-863c-d71597af743d Microsoft-WindowsPhone-NotificationService
55404e71-4db9-4deb-a5f5-8f86e46dde56 Microsoft-Windows-Winsock-NameResolution
59819d0a-adaf-46b2-8d7c-990bc39c7c15 Microsoft-Windows-Battery
5c103042-7e75-4629-a748-bdfa67607fac Microsoft-WindowsPhone-Power
69c1c3f1-2b5c-41d0-a14a-c7ca5130640e Microsoft-WindowsPhone-Cortana
6ad52b32-d609-4be9-ae07-ce8dae937e39 Microsoft-Windows-RPC
7263516b-6eb0-477b-b64f-17b91d29f239 Microsoft-WindowsPhone-BatterySense
7dd42a49-5329-4832-8dfd-43d979153a88 Microsoft-Windows-Kernel-Network
ae4bd3be-f36f-45b6-8d21-bdd6fb832853 Microsoft-Windows-Audio
daa6a96b-f3e7-4d4d-a0d6-31a350e6a445 Microsoft-Windows-WLAN-Driver
4d13548f-c7b8-4174-bb7a-d7f64bf22d29 Microsoft-WindowsPhone-LocationServiceProvider
74e106b7-00be-4a55-b707-7ab58d6a9e90 Microsoft-WindowsPhone-Shell-OOBE
cbda4dbf-8d5d-4f69-9578-be14aa540d22 Microsoft-Windows-AppLocker
e595f735-b42a-494b-afcd-b68666945cd3 Microsoft-Windows-Firewall
e5fc4a0f-7198-492f-9b0f-88fdcbfded48 Microsoft-Windows Networking VPN
e5c16d49-2464-4382-bb20-97a4b5465db9 Microsoft-Windows-WiFiNetworkManager



Collect logs remotely from Windows 10 Holographic or Windows 10 Mobile devices

For holographic or mobile devices already enrolled in MDM, you can remotely collect MDM logs through the MDM channel using the DiagnosticLog CSP.

You can use the DiagnosticLog CSP to enable the ETW provider. The provider ID is 3DA494E4-0FE2-415C-B895-FB5265C5C83B. The following examples show how to enable the ETW provider:

Add a collector node

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Add>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                   <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">node</Format>
                </Meta>
            </Item>
        </Add>
        <Final/>
    </SyncBody>
</SyncML>

Add the ETW provider to the trace

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Add>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM/Providers/3DA494E4-0FE2-415C-B895-FB5265C5C83B</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">node</Format>
                </Meta>
            </Item>
        </Add>
        <Final/>
    </SyncBody>
</SyncML>

Start collector trace logging

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM/TraceControl</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">chr</Format>
                </Meta>
                <Data>START</Data>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

Stop collector trace logging

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM/TraceControl</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">chr</Format>
                </Meta>
                <Data>STOP</Data>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

After the logs are collected on the device, you can retrieve the files through the MDM channel using the FileDownload portion of the DiagnosticLog CSP. For details, see DiagnosticLog CSP.

View logs

For best results, ensure that the PC or VM on which you are viewing logs matches the build of the OS from which the logs were collected.

  1. Open eventvwr.msc.

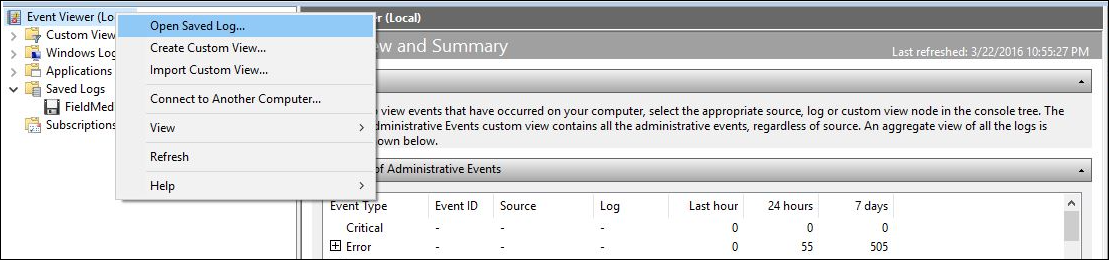

  2. Right-click on Event Viewer(Local) and select Open Saved Log.

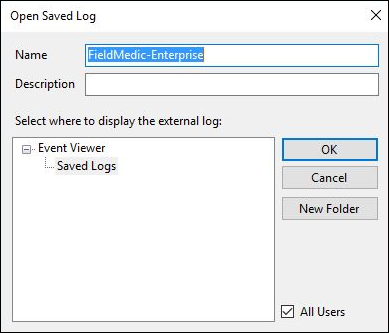

    event viewer screenshot

  3. Navigate to the etl file that you got from the device and then open the file.

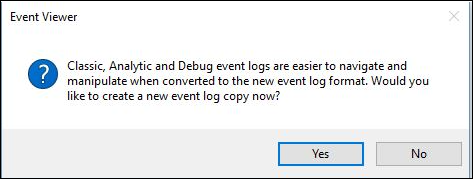

  4. Click Yes when prompted to save it to the new log format.

    prompt

    diagnose mdm failures

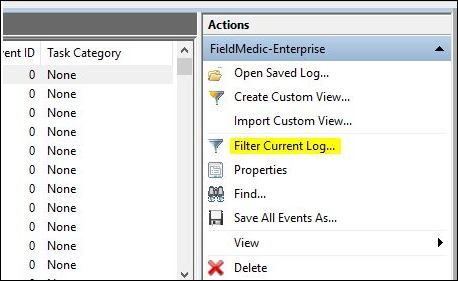

  5. The new view contains traces from the channel. Click on Filter Current Log from the Actions menu.

    event viewer

  6. Add a filter to Event sources by selecting DeviceManagement-EnterpriseDiagnostics-Provider and click OK.

    event filter

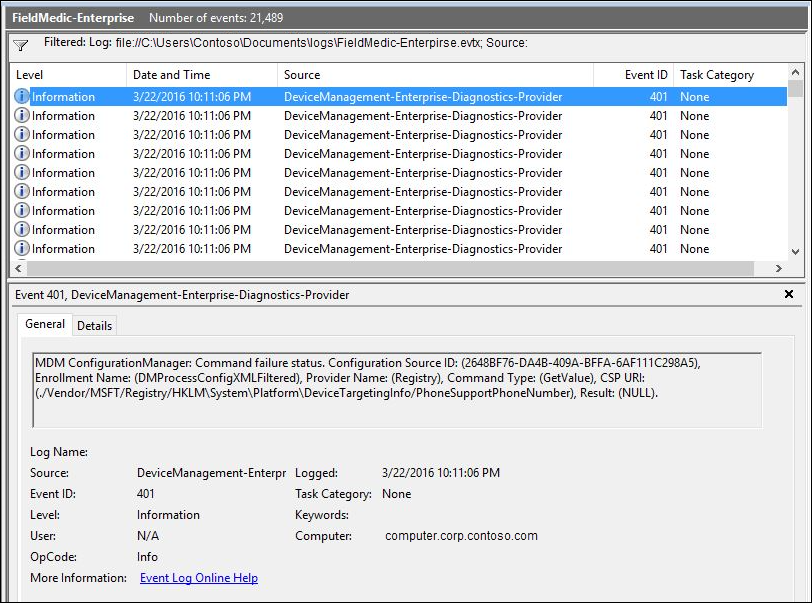

  7. Now you are ready to start reviewing the logs.

    event viewer

Collect device state data

Here's an example of how to collect current MDM device state data using the DiagnosticLog CSP, version 1.3, which was added in Windows 10, version 1607. You can collect the file from the device using the same FileDownload node in the CSP as you do for the etl files.

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
  <SyncBody>
    <Exec>
      <CmdID>2</CmdID>
      <Item>
        <Target>
          <LocURI>./Vendor/MSFT/DiagnosticLog/DeviceStateData/MdmConfiguration</LocURI>
        </Target>
        <Meta>
           <Format xmlns="syncml:metinf">chr</Format>
        </Meta>
        <Data>SNAP</Data>
      </Item>
    </Exec>
    <Final/>
  </SyncBody>
</SyncML>
