Messaging CSP

The Messaging configuration service provider is used to configure the ability to get text messages audited on a mobile device. This CSP was added in Windows 10, version 1703.

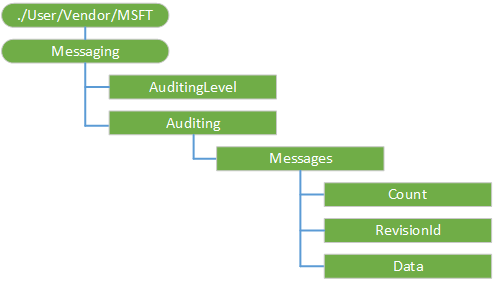

The following diagram shows the Messaging configuration service provider in tree format.

messaging csp

./User/Vendor/MSFT/Messaging

Root node for the Messaging configuration service provider.

AuditingLevel

Turns on the "Text" auditing feature.

The following list shows the supported values:

  • 0 (Default) - Off
  • 1 - On

Supported operations are Get and Replace.

Auditing

Node for auditing.

Supported operation is Get.

Messages

Node for messages.

Supported operation is Get.

Count

The number of messages to return in the Data setting. The default is 100.

Supported operations are Get and Replace.

RevisionId

Retrieves messages whose revision ID is greater than RevisionId.

Supported operations are Get and Replace.

Data

The JSON string of text messages on the device.

Supported operations are Get and Replace.

SyncML example

 <SyncML xmlns="SYNCML:SYNCML1.2">
  <SyncBody>
    <Replace>
      <CmdID>2</CmdID>
      <Item>
        <Target>
          <LocURI>
            ./User/Vendor/MSFT/Messaging/Auditing/Messages/Count
          </LocURI>
        </Target>
        <Meta>
          <Format xmlns="syncml:metinf">int</Format>
          <Type>text/plain</Type>
        </Meta>
        <Data>100</Data>
      </Item>
    </Replace>
    <Replace>
      <CmdID>3</CmdID>
      <Item>
        <Target>
          <LocURI>
            ./User/Vendor/MSFT/Messaging/Auditing/Messages/RevisionId
          </LocURI>
        </Target>
        <Meta>
          <Format xmlns="syncml:metinf">chr</Format>
          <Type>text/plain</Type>
        </Meta>
        <Data>0</Data>
      </Item>
    </Replace>
    <Get>
      <CmdID>4</CmdID>
      <Item>
        <Target>
          <LocURI>
            ./User/Vendor/MSFT/Messaging/Auditing/Messages/Data
          </LocURI>
        </Target>
      </Item>
    </Get>
    <Final/>
  </SyncBody>
</SyncML>
