Diagnostic Data Viewer Overview
Applies to
- Windows 10, version 1803
Introduction
The Diagnostic Data Viewer is a Windows app that lets you review the diagnostic data your device is sending to Microsoft, grouping the info into simple categories based on how it's used by Microsoft.
Install and Use the Diagnostic Data Viewer
You must turn on data viewing and download the app before you can use the Diagnostic Data Viewer to review your device's diagnostic data.
Turn on data viewing
Before you can use this tool, you must turn on data viewing in the Settings panel. Turning on data viewing lets Windows store your device's diagnostic data until you turn it off. Turning off data viewing stops Windows from collecting your diagnostic data and clears the existing diagnostic data from your device.
To turn on data viewing
-
Go to Start, select Settings > Privacy > Diagnostics & feedback.
-

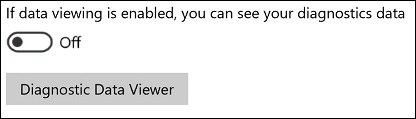

Under Diagnostic data, turn on the If data viewing is enabled, you can see your diagnostics data option.
Download the Diagnostic Data Viewer
Download the app from the Microsoft Store Diagnostic Data Viewer page.
Start the Diagnostic Data Viewer
You must start this app from the Settings panel.
To start the Diagnostic Data Viewer
-
Go to Start, select Settings > Privacy > Diagnostics & feedback.
-

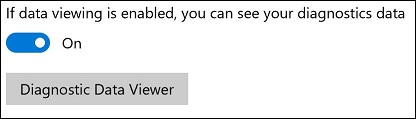

Under Diagnostic data, select the Diagnostic Data Viewer button.
-OR-Go to Start and search for Diagnostic Data Viewer.
-
Close the Diagnostic Data Viewer app, use your device as you normally would for a few days, and then open Diagnostic Data Viewer again to review the updated list of diagnostic data.
Important
Turning on data viewing can use up to 1GB of disk space on your system drive. We strongly recommend that your turn off data viewing when you're done using the Diagnostic Data Viewer. For info about turning off data viewing, see the Turn off data viewing section in this article.
Use the Diagnostic Data Viewer
The Diagnostic Data Viewer provides you with the following features to view and filter your device's diagnostic data.
-
View your diagnostic events. In the left column, you can review your diagnostic events. These events reflect activities that occurred and were sent to Microsoft.
Selecting an event opens the detailed JSON view, which provides the exact details uploaded to Microsoft. Microsoft uses this info to continually improve the Windows operating system.
-
Search your diagnostic events. The Search box at the top of the screen lets you search amongst all of the diagnostic event details. The returned search results include any diagnostic event that contains the matching text.
Selecting an event opens the detailed JSON view, with the matching text highlighted.
-
Filter your diagnostic event categories. The apps Menu button opens the detailed menu. In here, you'll find a list of diagnostic event categories, which define how the events are used by Microsoft.
Selecting a check box lets you filter between the diagnostic event categories.
-
Help to make your Windows experience better. Microsoft only needs diagnostic data from a small amount of devices to make big improvements to the Windows operating system and ultimately, your experience. If you’re a part of this small device group and you experience issues, Microsoft will collect the associated event diagnostic data, allowing your info to potentially help fix the issue for others.
To signify your contribution, you’ll see this icon (
) if your device is part of the group. In addition, if any of your diagnostic data events are sent from your device to Microsoft to help make improvements, you’ll see this icon (
). -
Provide diagnostic event feedback. The Feedback icon opens the Feedback Hub app, letting you provide feedback about the Diagnostic Data Viewer and the diagnostic events.
Selecting a specific event in the Diagnostic Data Viewer automatically fills in the field in the Feedback Hub. You can add your comments to the box labeled, Give us more detail (optional).
Important
All content in the Feedback Hub is publicly viewable. Therefore, make sure you don't put any personal info into your feedback comments.
Turn off data viewing
When you're done reviewing your diagnostic data, you should turn of data viewing.
To turn off data viewing
-
Go to Start, select Settings > Privacy > Diagnostics & feedback.
-
Under Diagnostic data, turn off the If data viewing is enabled, you can see your diagnostics data option.
View additional diagnostic data in the View problem reports tool
You can review additional Windows Error Reporting diagnostic data in the View problem reports tool. This tool provides you with a summary of various crash reports that are sent to Microsoft as part of Windows Error Reporting. We use this data to find and fix specific issues that are hard to replicate and to improve the Windows operating system.
To view your Windows Error Reporting diagnostic data
-
Go to Start, select Control Panel > All Control Panel Items > Security and Maintenance > Problem Reports.
-OR-
Go to Start and search for Problem Reports.The Review problem reports tool opens, showing you your Windows Error Reporting reports, along with a status about whether it was sent to Microsoft.
