Technical information for 84" Surface Hub
Measurements
| Pricing | Starting at $21,999 |
| Size | 46.12” x 86.7” x 4.15” (1171.5mm x 2202.9mm x 105.4mm) |
| Storage/RAM | SSD 128GB with 8GB RAM |
| Processor | 4th Generation Intel® Core™ i7 |
| Graphics | NVIDIA Quadro K2200 |
| Ports | Internal PC • (1) USB 3.0 (bottom) + (1) USB 3.0 (side access) • (4) USB 2.0 • Ethernet 1000 Base-T • DisplayPort Video Output • 3.5mm Stereo Out • RJ11 Connector for system-level control Alternate PC • (2) USB 2.0 type B output • connection for Camera, Sensors, Microphone, Speakers • (2) DisplayPort Video Input Guest PC • DisplayPort Video Input • HDMI Video Input • VGA Video Input • 3.5mm Stereo Input • (1) USB 2.0 type B Touchback™ Output |
| Sensors | (2) Passive Infrared Presence Sensors, Ambient Light Sensors |
| Speakers | (2) Front-facing stereo speakers |
| Microphone | High-Performance, 4-Element Array |
| Camera | (2) Wide angle HD cameras 1080p @ 30fps |
| Pen | (2) Powered, active, subpixel accuracy |
| Physical side buttons | Power, Input Select, Volume, Brightness |
| Software | Windows 10 + Office (Word, PowerPoint, Excel) |
| What’s in the box | • Surface Hub 84” • (2) Surface Hub Pens • Power Cable • Setup Guide • Safety and Warranty documents • Wireless All-in-One Keyboard |
| Mounting features | 4X VESA standard, 1200mm x 600mm pattern, 8X M8 X 1.25 threaded mounting locations |
| Display height from floor | Recommended height of 54 inches (139.7 cm) to center of screen |
| Product weight | Approx. 280 lb. (127 kg.) |
| Product shipping weight | Approx. 580 lb. (263 kg.) |
| Product dimensions HxWxD | 46 x 86.9 x 4.1 inches (116.8 x 220.6 x 10.4 cm) |
| Product shipping dimensions HxWxD | 66.14 x 88.19 x 24.4 inches (168 x 224 x 62 cm) |
| Product thickness | Touch surface to mounting surface: ≤ 3.1 inches (7.8 cm) |
| Orientation | Landscape only. Display cannot be used in a portrait orientation. |
| BTU | 3070.8 BTU/h |
| Image resolution | 3840 x 2160 |
| Frame rate | 120Hz |
| Contrast Ratio | 1400:1 |
| EDID preferred timing, replacement PC | 3840 x 2140, 120Hz vertical refresh |
| EDID preferred timing, wired connect | 1920 x 1080, 60Hz vertical refresh |
| Input voltage | 110/230v nominal, 90-265v max |
| Input power, operating | 900W max |
| Input power, standby | 5W nominal, 1-10W max |
Replacement PC connections
| Connector and location | Label | Description |
|---|---|---|
| Switch, bottom I/O |  |
Switches the function between using internal PC or external PC. |
| Display port, bottom I/O |  |
Provides input for replacement PC. |
| Display port, bottom I/O | |
Provides second input for replacement PC. |
| USB type B, bottom I/O |  |
Provides USB connection for replacement PC to internal peripherals. |
| USB type B, bottom I/O | |
Provides USB connection for integrated hub. |
Wired connect connections
| Connector and location | Label | Description |
|---|---|---|
| Display port, bottom I/O |  |
Provides input for wired connect PC. |
| HDMI, bottom I/O |  |
Provides HDMI input for wired connect PC. |
| VGA, bottom I/O |  |
Provides VGA input for wired connect PC. |
| 3.5mm, bottom I/O |  |
Provides analog audio input. |
| USB type B, bottom I/O | |
Provides USB connection for video ingest touchback. |
Additional connections
| Connector and location | Label | Description |
|---|---|---|
| USB type A, side I/O | |
Provides 1 USB 3.0 connection for USB devices. Wake-on USB capable. |
| USB type A, bottom I/O with blue insulator | |
Provides USB 3.0 connection. |
| 3.5mm, bottom I/O |  |
Provides analog audio out. |
| Display port, bottom I/O |  |
Provides mirrored video out function to another display. |
| IEC/EN60320-C13 receptacle with hard switch |  |
Provides AC input and compliance with EU power requirements. |
| RJ45, bottom I/O |  |
Connects to Ethernet. |
| RJ11, bottom I/O |  |
Connects to room control systems. |
Diagrams of ports and clearances
Top view of 84" Surface Hub

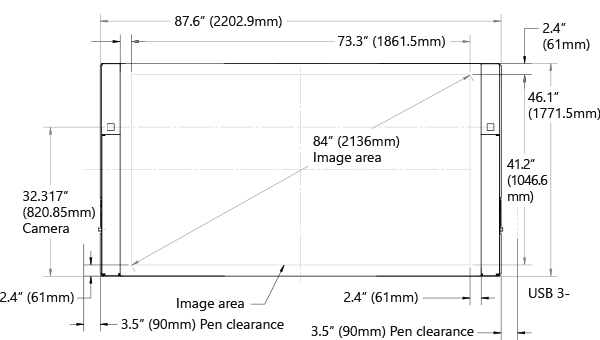

Front view of 84" Surface Hub
Bottom view of 84" Surface Hub
Replacement PC ports on 84" Surface Hub
Rear view of 84" Surface Hub
Clearances for 84" Surface Hub
Removable lifting handles on 84” Surface Hub
Wall mount threads on back of 84” Surface Hub

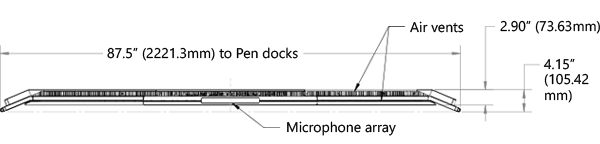

Lifting handles in top view of 84” Surface Hub
Side view of 84” Surface Hub
