Diagnose MDM failures in Windows 10

To help diagnose enrollment or device management issues in Windows 10 devices managed by an MDM server, you can examine the MDM logs collected from the desktop. The following sections describe the procedures for collecting MDM logs.

Download the MDM Diagnostic Information log from Windows 10 PCs

On your managed device go to Settings > Accounts > Access work or school.
Click your work or school account, then click Info.
At the bottom of the Settings page, click Create report.
A window opens that shows the path to the log files. Click Export.
In File Explorer, navigate to c:\Users\Public\Documents\MDMDiagnostics to see the report.

Use command to collect logs directly from Windows 10 PCs

You can also collect the MDM Diagnostic Information logs using the following command:

mdmdiagnosticstool.exe -area DeviceEnrollment;DeviceProvisioning;Autopilot -cab c:\users\public\documents\MDMDiagReport.cab

In File Explorer, navigate to c:\Users\Public\Documents\MDMDiagnostics to see the report.

Understanding cab structure

The cab file will have logs according to the areas that were used in the command. This explanation is based on DeviceEnrollment, DeviceProvisioning and Autopilot areas. It applies to the cab files collected via command line or Feedback Hub

DiagnosticLogCSP_Collector_Autopilot_*: Autopilot etls
DiagnosticLogCSP_Collector_DeviceProvisioning_*: Provisioning etls (Microsoft-Windows-Provisioning-Diagnostics-Provider)
MDMDiagHtmlReport.html: Summary snapshot of MDM space configurations and policies. Includes, management url, MDM server device ID, certificates, policies.
MdmDiagLogMetadata, json: mdmdiagnosticstool metadata file, contains command-line arguments used to run the tool
MDMDiagReport.xml: contains a more detail view into the MDM space configurations, e.g enrollment variables
MdmDiagReport_RegistryDump.reg: contains dumps from common MDM registry locations
MdmLogCollectorFootPrint.txt: mdmdiagnosticslog tool logs from running the command
*.evtx: Common event viewer logs microsoft-windows-devicemanagement-enterprise-diagnostics-provider-admin.evtx main one that contains MDM events.

Collect logs directly from Windows 10 PCs

Starting with the Windows 10, version 1511, MDM logs are captured in the Event Viewer in the following location:

Applications and Services Logs > Microsoft > Windows > DeviceManagement-Enterprise-Diagnostic-Provider

Here's a screenshot:

In this location, the Admin channel logs events by default. However, if you need more details logs you can enable Debug logs by choosing Show Analytic and Debug logs option in View menu in Event Viewer.

To collect Admin logs

Right click on the Admin node.
Select Save all events as.
Choose a location and enter a filename.
Click Save.
Choose Display information for these languages and then select English.
Click Ok.

For more detailed logging, you can enable Debug logs. Right click on the Debug node and then click Enable Log.

To collect Debug logs

Right click on the Debug node.
Select Save all events as.
Choose a location and enter a filename.
Click Save.
Choose Display information for these languages and then select English.
Click Ok.

You can open the log files (.evtx files) in the Event Viewer on a Windows 10 PC running the November 2015 update.

Collect logs remotely from Windows 10 PCs

When the PC is already enrolled in MDM, you can remotely collect logs from the PC through the MDM channel if your MDM server supports this. The DiagnosticLog CSP can be used to enable an event viewer channel by full name. Here are the Event Viewer names for the Admin and Debug channels:

Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FAdmin
Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FDebug

Example: Enable the Debug channel logging

<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FDebug/State</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">bool</Format>
                </Meta>
                <Data>true</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

Example: Export the Debug logs

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider%2FDebug/Export</LocURI>
                </Target>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

Collect logs remotely from Windows 10 Holographic

For holographic already enrolled in MDM, you can remotely collect MDM logs through the MDM channel using the DiagnosticLog CSP.

You can use the DiagnosticLog CSP to enable the ETW provider. The provider ID is 3DA494E4-0FE2-415C-B895-FB5265C5C83B. The following examples show how to enable the ETW provider:

Add a collector node

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Add>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                   <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">node</Format>
                </Meta>
            </Item>
        </Add>
        <Final/>
    </SyncBody>
</SyncML>

Add the ETW provider to the trace

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Add>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM/Providers/3DA494E4-0FE2-415C-B895-FB5265C5C83B</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">node</Format>
                </Meta>
            </Item>
        </Add>
        <Final/>
    </SyncBody>
</SyncML>

Start collector trace logging

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM/TraceControl</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">chr</Format>
                </Meta>
                <Data>START</Data>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

Stop collector trace logging

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/MDM/TraceControl</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">chr</Format>
                </Meta>
                <Data>STOP</Data>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

After the logs are collected on the device, you can retrieve the files through the MDM channel using the FileDownload portion of the DiagnosticLog CSP. For details, see DiagnosticLog CSP.

View logs

For best results, ensure that the PC or VM on which you are viewing logs matches the build of the OS from which the logs were collected.

Open eventvwr.msc.

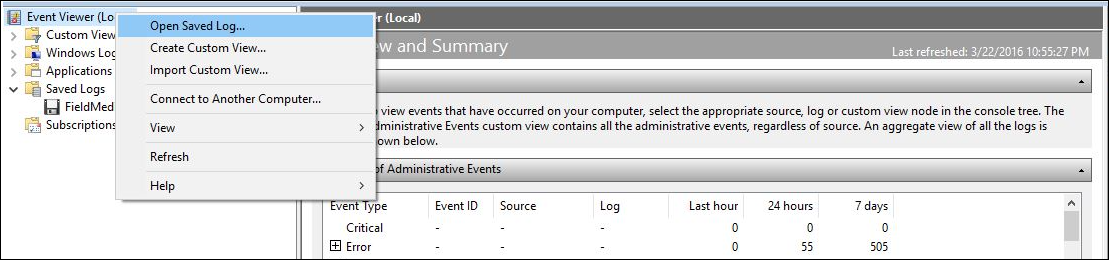

Right-click on Event Viewer(Local) and select Open Saved Log.
Navigate to the etl file that you got from the device and then open the file.
Click Yes when prompted to save it to the new log format.

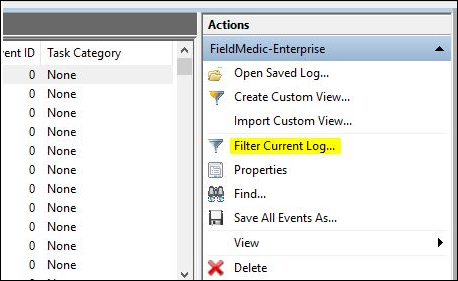

The new view contains traces from the channel. Click on Filter Current Log from the Actions menu.
Add a filter to Event sources by selecting DeviceManagement-EnterpriseDiagnostics-Provider and click OK.
Now you are ready to start reviewing the logs.

Collect device state data

Here's an example of how to collect current MDM device state data using the DiagnosticLog CSP, version 1.3, which was added in Windows 10, version 1607. You can collect the file from the device using the same FileDownload node in the CSP as you do for the etl files.

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
  <SyncBody>
    <Exec>
      <CmdID>2</CmdID>
      <Item>
        <Target>
          <LocURI>./Vendor/MSFT/DiagnosticLog/DeviceStateData/MdmConfiguration</LocURI>
        </Target>
        <Meta>
           <Format xmlns="syncml:metinf">chr</Format>
        </Meta>
        <Data>SNAP</Data>
      </Item>
    </Exec>
    <Final/>
  </SyncBody>
</SyncML>
