UEFI CSP
The UEFI configuration service provider (CSP) interfaces to UEFI's Device Firmware Configuration Interface (DFCI) to make BIOS configuration changes. This CSP was added in Windows 10, version 1809.
Note
The UEFI CSP version published in Windows 10, version 1803 is replaced with this one (version 1809).
Note
The production UEFI CSP is present in 1809, but it depends upon the Device Firmware Configuration Interface (DFCI) and UEFI firmware to comply with this interface.

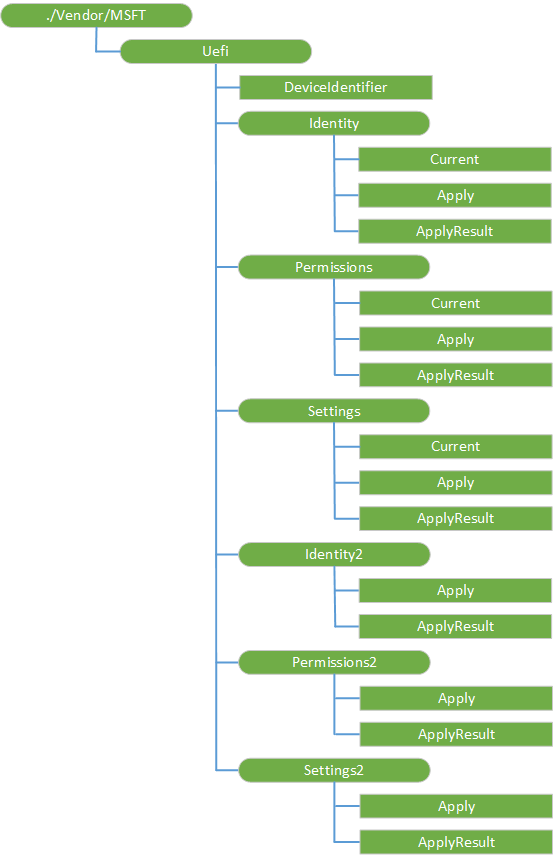

The following diagram shows the UEFI CSP in tree format.
The following list describes the characteristics and parameters.
DeviceIdentifier
Retrieves XML from UEFI that describes the device identifier.
Supported operation is Get.
Identity
Node for identity certificate operations.
Supported operation is Get.
Identity/Current
Retrieves XML from UEFI that describes the current UEFI identity certificate information.
Supported operation is Get.
Identity/Apply
Applies an identity information package to UEFI. Input is the signed package in base64 encoded format.
Value type is Base64. Supported operation is Replace.
Identity/Result
Retrieves the binary result package of the previous Identity/Apply operation.
Supported operation is Get.
Permissions
Node for settings permission operations..
Permissions/Current
Retrieves XML from UEFI that describes the current UEFI settings permissions.
Supported operation is Get.
Permissions/Apply
Apply a permissions information package to UEFI. Input is the signed package in base64 encoded format.
Value type is Base64. Supported operation is Replace.
Permissions/Result
Retrieves the binary result package of the previous Permissions/Apply operation. This binary package contains XML describing the action taken for each individual permission.
Supported operation is Get.
Settings
Node for device settings operations.
Settings/Current
Retrieves XML from UEFI that describes the current UEFI settings.
Supported operation is Get.
Settings/Apply
Apply a settings information package to UEFI. Input is the signed package in base64 encoded format.
Value type is Base64. Supported operation is Replace.
Settings/Result
Retrieves the binary result package of the previous Settings/Apply operation. This binary package contains XML describing the action taken for each individual setting.
Supported operation is Get.
Identity2
Node for identity certificate operations. Alternate endpoint for sending a second identity package without an OS restart.
Identity2/Apply
Apply an identity information package to UEFI. Input is the signed package in base64 encoded format. Alternate location for sending two identity packages in the same session.
Value type is Base64. Supported operation is Replace.
Identity2/Result
Retrieves the binary result package of the previous Identity2/Apply operation.
Supported operation is Get.
Permissions2
Node for settings permission operations. Alternate endpoint for sending a second permission package without an OS restart.
Permissions2/Apply
Apply a permissions information package to UEFI. Input is the signed package in base64 encoded format. Alternate location for sending two permissions information packages in the same session.
Value type is Base64. Supported operation is Replace.
Permissions2/Result
Retrieves the binary result package from the previous Permissions2/Apply operation. This binary package contains XML describing the action taken for each individual permission.
Supported operation is Get.
Settings2
Nodefor device settings operations. Alternate endpoint for sending a second settings package without an OS restart.
Settings2/Apply
Apply a settings information package to UEFI. Input is the signed package in base64 encoded format. Alternate location for sending two settings information packages in the same session.
Value type is Base64. Supported operation is Replace.
Settings2/Result
Retrieves the binary result package of previous Settings2/Apply operation. This binary package contains XML describing the action taken for each individual setting.
Supported operation is Get.
