Implement Quality of Service (QoS) on Surface Hub

Quality of Service (QoS) is a combination of network technologies that allows the administrators to optimize the experience of real time audio/video and application sharing communications.

Configuring QoS for Skype for Business on the Surface Hub can be done using your mobile device management (MDM) provider or through a provisioning package.

This procedure explains how to configure QoS for Surface Hub using Microsoft Intune.

  1. In Intune, create a custom policy.

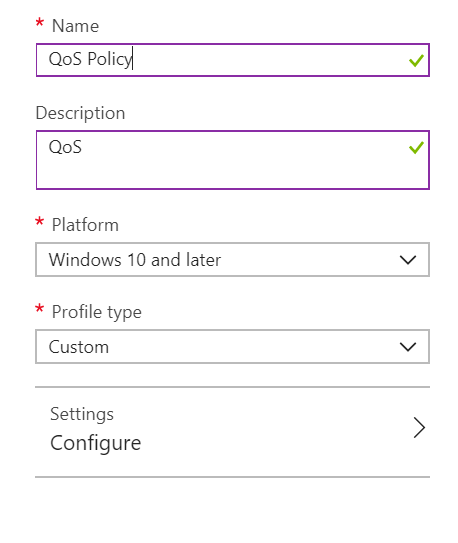

    Screenshot of custom policy creation dialog in Intune

  2. In Custom OMA-URI Settings, select Add. For each setting that you add, you will enter a name, description (optional), data type, OMA-URI, and value.

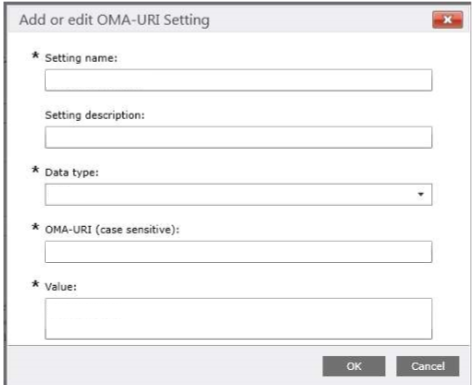

    Screenshot of a blank OMA-URI setting dialog box

  3. Add the following custom OMA-URI settings:

    Name Data type OMA-URI
    ./Device/Vendor/MSFT/NetworkQoSPolicy    		 Value
    Audio Source Port String /HubAudio/SourcePortMatchCondition Get the values from your Skype administrator
    Audio DSCP Integer /HubAudio/DSCPAction 46
    Video Source Port String /HubVideo/SourcePortMatchCondition Get the values from your Skype administrator
    Video DSCP Integer /HubVideo/DSCPAction 34
    Audio Process Name String /HubAudio/AppPathNameMatchCondition Microsoft.PPISkype.Windows.exe
    Video Process Name String /HubVideo/AppPathNameMatchCondition Microsoft.PPISkype.Windows.exe

    Important

    Each OMA-URI path begins with ./Device/Vendor/MSFT/NetworkQoSPolicy. The full path for the audio source port setting, for example, will be ./Device/Vendor/MSFT/NetworkQoSPolicy/HubAudio/SourcePortMatchCondition.

  4. When the policy has been created, deploy it to the Surface Hub.

Warning

Currently, you cannot configure the setting IPProtocolMatchCondition in the NetworkQoSPolicy CSP. If this setting is configured, the policy will fail to apply.
