Deploy catalog files to support code integrity policies

Applies to

• Windows 10
• Windows Server 2016

Catalog files can be important in your deployment of code integrity polices if you have unsigned line-of-business (LOB) applications for which the process of signing is difficult. To prepare to create code integrity policies that allow these trusted applications but block unsigned code (most malware is unsigned), you create a catalog file that contains information about the trusted applications. After you sign and distribute the catalog, your trusted applications can be handled by code integrity policies in the same way as any other signed application. With this foundation, you can more easily block all unsigned applications, allowing only signed applications to run.

For more description of catalog files, see Reviewing your applications: application signing and catalog files in "Requirements and deployment planning guidelines for Device Guard."

Create catalog files

The creation of a catalog file is a necessary step for adding an unsigned application to a code integrity policy.

To create a catalog file, you use a tool called Package Inspector. You must also have a code integrity policy deployed in audit mode on the computer on which you run Package Inspector, because Package Inspector does not always detect installation files that have been removed from the computer during the installation process.

Note

  When you establish a naming convention it makes it easier to detect deployed catalog files in the future. In this guide, *-Contoso.cat is used as the example naming convention. For more information about why this practice is helpful to inventory or detect catalog files, see Inventory catalog files with System Center Configuration Manager, later in this topic.

1. Be sure that a code integrity policy is currently deployed in audit mode on the computer on which you will run Package Inspector.

   Package Inspector does not always detect installation files that have been removed from the computer during the installation process. To ensure that these binaries are also trusted, deploy a code integrity policy in audit mode. You can use the code integrity policy that you created and audited in Create a code integrity policy from a golden computer and Audit code integrity policies.

   Note

     This process should not be performed on a system with an enforced Device Guard policy, only with a policy in audit mode. If a policy is currently being enforced, you will not be able to install and run the application.

2. Start Package Inspector, and then start scanning a local drive, for example, drive C:

   PackageInspector.exe Start C:

   Note

     Package inspector can monitor installations on any local drive. Specify the appropriate drive on the local computer.

3. Copy the installation media to the local drive (typically drive C).

   By copying the installation media to the local drive, you ensure that Package Inspector detects and catalogs the actual installer. If you skip this step, the future code integrity policy may trust the application to run but not to be installed.

4. Install the application. Install it to the same drive that the application installer is located on (the drive you are scanning). Also, while Package Inspector is running, do not run any installations or updates that you don't want to capture in the catalog.

   Important

     Every binary that is run while Package Inspector is running will be captured in the catalog. Ensure that only trusted applications are run during this time.

5. Start the application.

6. Ensure that product updates are installed, and downloadable content associated with the application is downloaded.

7. Close and reopen the application.

   This step is necessary to ensure that the scan has captured all binaries.

8. As appropriate, with Package Inspector still running, repeat the process for another application that you want in the catalog. Copy the installation media to the local drive, install the application, ensure it is updated, and then close and reopen the application.

9. When you have confirmed that the previous steps are complete, use the following commands to generate the catalog and definition files on your computer's desktop. The filenames used in these example commands are LOBApp-Contoso.cat (catalog file) and LOBApp.cdf (definition file)—substitute different filenames as appropriate.

   For the last command, which stops Package Inspector, be sure to type the drive letter of the drive you have been scanning, for example, C:.

   $ExamplePath=$env:userprofile+"\Desktop"

   $CatFileName=$ExamplePath+"\LOBApp-Contoso.cat"

   $CatDefName=$ExamplePath+"\LOBApp.cdf"

   PackageInspector.exe Stop C: -Name $CatFileName -cdfpath $CatDefName

Note

  Package Inspector catalogs the hash values for each discovered binary file. If the applications that were scanned are updated, complete this process again to trust the new binaries’ hash values.

When finished, the files will be saved to your desktop. You can double-click the *.cat file to see its contents, and you can view the *.cdf file with a text editor.

To trust this catalog file within a code integrity policy, the catalog must first be signed. Then, the signing certificate can be added to the code integrity policy, and the catalog file can be distributed to the individual client computers.

For information about signing catalog files by using a certificate and SignTool.exe, a free tool available in the Windows SDK, see the next section, Catalog signing with SignTool.exe.

For information about adding the signing certificate to a code integrity policy, see Add a catalog signing certificate to a code integrity policy.

Catalog signing with SignTool.exe

In this section, you sign a catalog file you generated by using PackageInspector.exe, as described in the previous section, Create catalog files. In this example, you need the following:

• SignTool.exe, found in the Windows software development kit (SDK—Windows 7 or later)

• The catalog file that you generated in the Create catalog files section, or another catalog file that you have created

• An internal certification authority (CA) code signing certificate or purchased code signing certificate

If you do not have a code signing certificate, see Optional: Create a code signing certificate for code integrity policies for a walkthrough of how to create one. That topic uses an example certificate name of ContosoDGSigningCert, and the procedure that follows uses that example certificate name to sign the catalog file that you created in Create catalog files, earlier in this topic. If you are using an alternate certificate or catalog file, update the following steps with the appropriate variables and certificate.

To sign the existing catalog file, copy each of the following commands into an elevated Windows PowerShell session.

1. Initialize the variables that will be used:

   $ExamplePath=$env:userprofile+"\Desktop"

   $CatFileName=$ExamplePath+"\LOBApp-Contoso.cat"

   Note

     This example specifies the catalog file you created in the Create catalog files section. If you are signing another catalog file, update the $ExamplePath and $CatFileName variables with the correct information.

2. Import the code signing certificate that will be used to sign the catalog file. Import it to the signing user’s personal store. This example uses the certificate name from Optional: Create a code signing certificate for code integrity policies.

3. Sign the catalog file with Signtool.exe:

   <path to signtool.exe> sign /n "ContosoDGSigningCert" /fd sha256 /v $CatFileName

   Note

     The <Path to signtool.exe> variable should be the full path to the Signtool.exe utility. ContosoDGSigningCert represents the subject name of the certificate that you will use to sign the catalog file. This certificate should be imported to your personal certificate store on the computer on which you are attempting to sign the catalog file.

   Note

     For additional information about Signtool.exe and all additional switches, visit the MSDN Sign Tool page.

4. Verify the catalog file digital signature. Right-click the catalog file, and then click Properties. On the Digital Signatures tab, verify that your signing certificate exists with a sha256 algorithm, as shown in Figure 1.

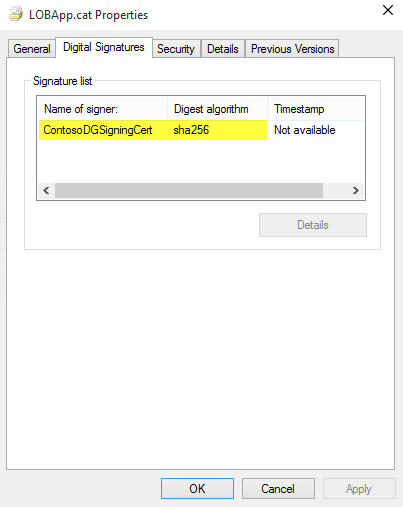

   Figure 1. Verify that the signing certificate exists

5. Copy the catalog file to C:\Windows\System32\catroot\{F750E6C3-38EE-11D1-85E5-00C04FC295EE}.

   For testing purposes, you can manually copy signed catalog files to their intended folder. For large-scale implementations, to copy the appropriate catalog files to all desired computers, we recommend that you use Group Policy File Preferences or an enterprise systems management product such as System Center Configuration Manager. Doing this also simplifies the management of catalog versions.

Add a catalog signing certificate to a code integrity policy

After the catalog file is signed, add the signing certificate to a code integrity policy, as described in the following steps.

1. If you have not already verified the catalog file digital signature, right-click the catalog file, and then click Properties. On the Digital Signatures tab, verify that your signing certificate exists with the algorithm you expect.

2. If you already have an XML policy file that you want to add the signing certificate to, skip to the next step. Otherwise, use New-CIPolicy to create a code integrity policy that you will later merge into another policy (not deploy as-is). This example creates a policy called CatalogSignatureOnly.xml in the location C:\PolicyFolder:

   New-CIPolicy -Level PcaCertificate -FilePath C:\PolicyFolder\CatalogSignatureOnly.xml –UserPEs

   Note

     Include the -UserPEs parameter to ensure that the policy includes user mode code integrity.

3. Use Add-SignerRule to add the signing certificate to the code integrity policy, filling in the correct path and filenames for and :

   Add-SignerRule -FilePath <policypath> -CertificatePath <certpath> -User

If you used step 2 to create a new code integrity policy, and want information about merging policies together, see Merge code integrity policies.

Deploy catalog files with Group Policy

To simplify the management of catalog files, you can use Group Policy preferences to deploy catalog files to the appropriate computers in your organization. The following process walks you through the deployment of a signed catalog file called LOBApp-Contoso.cat to a test OU called DG Enabled PCs with a GPO called Contoso DG Catalog File GPO Test.

Note

  This walkthrough requires that you have previously created a signed catalog file and have a computer running Windows 10 on which to test a Group Policy deployment. For more information about how to create a catalog file, see Create catalog files, earlier in this topic. Also, before you begin testing of a catalog file with the code integrity policy it supports, review Add a catalog signing certificate to a code integrity policy.

To deploy a catalog file with Group Policy:

1. From either a domain controller or a client computer that has Remote Server Administration Tools (RSAT) installed, open the Group Policy Management Console (GPMC) by running GPMC.MSC or by searching for Group Policy Management.

2. Create a new GPO: right-click an OU, for example, the DG Enabled PCs OU, and then click Create a GPO in this domain, and Link it here, as shown in Figure 2.

   Note

     You can use any OU name. Also, security group filtering is an option when you consider different ways of combining code integrity policies (or keeping them separate), as discussed in Planning and getting started on the Device Guard deployment process.

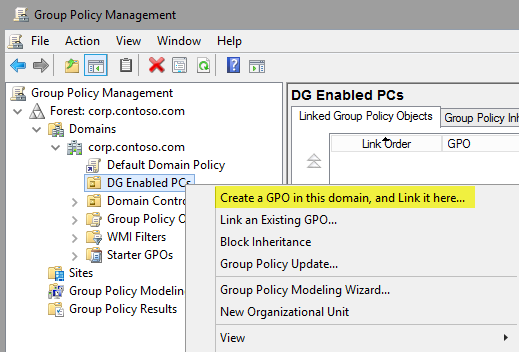

Figure 2. Create a new GPO

3. Give the new GPO a name, for example, Contoso DG Catalog File GPO Test, or any name you prefer.

4. Open the Group Policy Management Editor: right-click the new GPO, and then click Edit.

5. Within the selected GPO, navigate to Computer Configuration\Preferences\Windows Settings\Files. Right-click Files, point to New, and then click File, as shown in Figure 3.

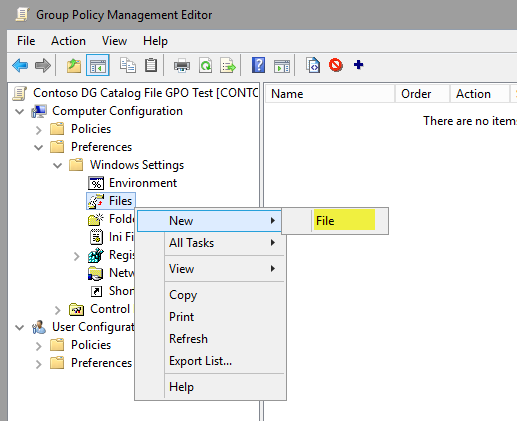

   Figure 3. Create a new file

6. Configure the catalog file share.

   To use this setting to provide consistent deployment of your catalog file (in this example, LOBApp-Contoso.cat), the source file should be on a share that is accessible to the computer account of every deployed computer. This example uses a share (on a computer running Windows 10) called \\Contoso-Win10\Share. The catalog file being deployed is copied to this share.

7. To keep versions consistent, in the New File Properties dialog box (Figure 4), select Replace from the Action list so that the newest version is always used.

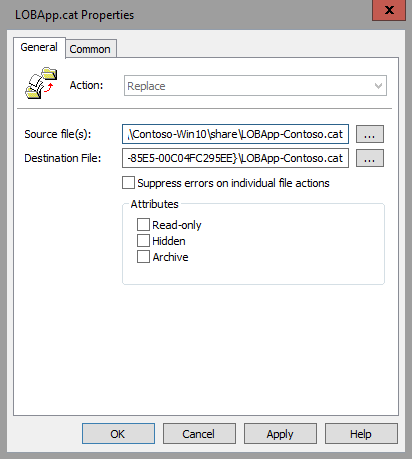

   Figure 4. Set the new file properties

8. In the Source file(s) box, type the name of your accessible share, with the catalog file name included (for example, \\Contoso-Win10\share\LOBApp-Contoso.cat).

9. In the Destination File box, type a path and file name, for example:

   C:\Windows\System32\catroot\{F750E6C3-38EE-11D1-85E5-00C04FC295EE}\LOBApp-Contoso.cat

   For the catalog file name, use the name of the catalog you are deploying.

10. On the Common tab of the New File Properties dialog box, select the Remove this item when it is no longer applied option. Doing this ensures that the catalog file is removed from every system, in case you ever need to stop trusting this application.

11. Click OK to complete file creation.

12. Close the Group Policy Management Editor, and then update the policy on the test computer running Windows 10, by running GPUpdate.exe. When the policy has been updated, verify that the catalog file exists in C:\Windows\System32\catroot\{F750E6C3-38EE-11D1-85E5-00C04FC295EE} on the computer running Windows 10.

Before you begin testing the deployed catalog file, make sure that the catalog signing certificate has been added to an appropriate code integrity policy, as described in Add a catalog signing certificate to a code integrity policy.

Deploy catalog files with System Center Configuration Manager

As an alternative to Group Policy, you can use System Center Configuration Manager to deploy catalog files to the managed computers in your environment. This approach can simplify the deployment and management of multiple catalog files as well as provide reporting around which catalog each client or collection has deployed. In addition to the deployment of these files, System Center Configuration Manager can also be used to inventory the currently deployed catalog files for reporting and compliance purposes. Complete the following steps to create a new deployment package for catalog files:

Note

  The following example uses a network share named \\Shares\CatalogShare as a source for the catalog files. If you have collection specific catalog files, or prefer to deploy them individually, use whichever folder structure works best for your organization.

1. Open the Configuration Manager console, and select the Software Library workspace.

2. Navigate to Overview\Application Management, right-click Packages, and then click Create Package.

3. Name the package, set your organization as the manufacturer, and select an appropriate version number.



   Figure 5. Specify information about the new package

4. Click Next, and then select Standard program as the program type.

5. On the Standard Program page, select a name, and then set the Command Line property to XCopy \\Shares\CatalogShare C:\Windows\System32\catroot\{F750E6C3-38EE-11D1-85E5-00C04FC295EE} /H /K /E /Y.

6. On the Standard Program page, select the following options (Figure 6):

   • In Name, type a name such as Contoso Catalog File Copy Program.

   • In Command line, browse to the program location.

   • In Startup folder, type C:\Windows\System32.

   • From the Run list, select Hidden.

   • From the Program can run list, select Whether or not a user is logged on.

   • From the Drive mode list, select Runs with UNC name.



   Figure 6. Specify information about the standard program

7. Accept the defaults for the rest of the wizard, and then close the wizard.

After you create the deployment package, deploy it to a collection so that the clients will receive the catalog files. In this example, you deploy the package you just created to a test collection:

1. In the Software Library workspace, navigate to Overview\Application Management\Packages, right-click the catalog file package, and then click Deploy.

2. On the General page, select the test collection to which the catalog files will be deployed, and then click Next.

3. On the Content page, click Add to select the distribution point that will serve content to the selected collection, and then click Next.

4. On the Deployment Settings page, select Required in the Purpose box.

5. On the Scheduling page, click New.

6. In the Assignment Schedule dialog box, select Assign immediately after this event, set the value to As soon as possible, and then click OK.

7. On the Scheduling page, click Next.

8. On the User Experience page (Figure 7), set the following options, and then click Next:

   • Select the Software installation check box.

   • Select the Commit changes at deadline or during a maintenance window (requires restarts) check box.

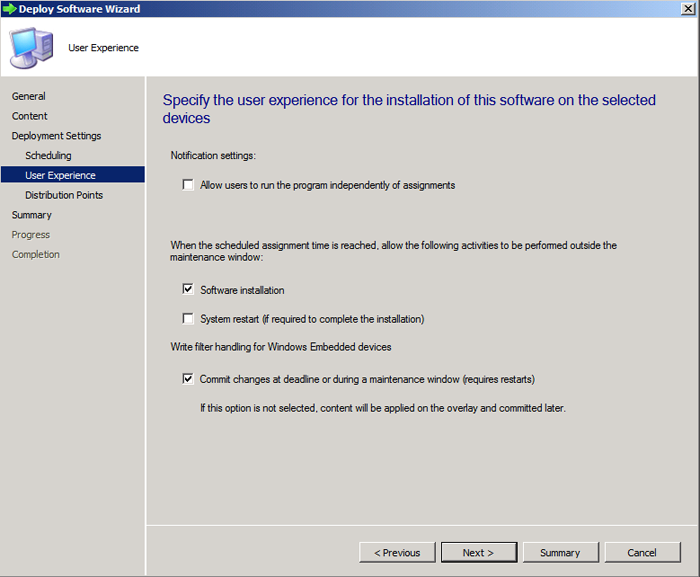

   Figure 7. Specify the user experience

9. On the Distribution Points page, in the Deployment options box, select Run program from distribution point, and then click Next.

10. On the Summary page, review the selections, and then click Next.

11. Close the wizard.

Before you begin testing the deployed catalog file, make sure that the catalog signing certificate has been added to an appropriate code integrity policy, as described in Add a catalog signing certificate to a code integrity policy.

Inventory catalog files with System Center Configuration Manager

When catalog files have been deployed to the computers within your environment, whether by using Group Policy or System Center Configuration Manager, you can inventory them with the software inventory feature of System Center Configuration Manager. The following process walks you through the enablement of software inventory to discover catalog files on your managed systems through the creation and deployment of a new client settings policy.

Note

  A standard naming convention for your catalog files will significantly simplify the catalog file software inventory process. In this example, -Contoso has been added to all catalog file names.

1. Open the Configuration Manager console, and select the Administration workspace.

2. Navigate to Overview\Client Settings, right-click Client Settings, and then click Create Custom Client Device Settings.

3. Name the new policy, and under Select and then configure the custom settings for client devices, select the Software Inventory check box, as shown in Figure 8.



   Figure 8. Select custom settings

4. In the navigation pane, click Software Inventory, and then click Set Types, as shown in Figure 9.



   Figure 9. Set the software inventory

5. In the Configure Client Setting dialog box, click the Start button to open the Inventories File Properties dialog box.

6. In the Name box, type a name such as *Contoso.cat, and then click Set.

   Note

     When typing the name, follow your naming convention for catalog files.

7. In the Path Properties dialog box, select Variable or path name, and then type C:\Windows\System32\catroot\{F750E6C3-38EE-11D1-85E5-00C04FC295EE} in the box, as shown in Figure 10.



   Figure 10. Set the path properties

8. Click OK.

9. Now that you have created the client settings policy, right-click the new policy, click Deploy, and then choose the collection on which you would like to inventory the catalog files.

At the time of the next software inventory cycle, when the targeted clients receive the new client settings policy, you will be able to view the inventoried files in the built-in System Center Configuration Manager reports or Resource Explorer. To view the inventoried files on a client within Resource Explorer, complete the following steps:

1. Open the Configuration Manager console, and select the Assets and Compliance workspace.

2. Navigate to Overview\Devices, and search for the device on which you want to view the inventoried files.

3. Right-click the computer, point to Start, and then click Resource Explorer.

4. In Resource Explorer, navigate to Software\File Details to view the inventoried catalog files.

Note

  If nothing is displayed in this view, navigate to Software\Last Software Scan in Resource Explorer to verify that the client has recently completed a software inventory scan.

Related topics

• Introduction to Device Guard: virtualization-based security and code integrity policies

• Planning and getting started on the Device Guard deployment process

• Deploy Device Guard: deploy code integrity policies
