DiagnosticLog CSP

The DiagnosticLog configuration service provider (CSP) is used for generating and collecting diagnostic information from the device: Event Tracing for Windows (ETW) log files and current MDM configured state of the device.

DiagnosticLog CSP supports the following type of event tracing:

• Collector-based tracing
• Channel-based tracing

Collector-based tracing

This type of event tracing simultaneously collects event data from a collection of registered ETW providers.

An event collector is a container of registered ETW providers. Users can add or delete a collector node and register or unregister multiple providers in this collector.

The CollectorName must be unique within the CSP and must not be a valid event channel name or a provider GUID.

The DiagnosticLog CSP maintains a log file for each collector node and the log file is overwritten if a start command is triggered again on the same collector node.

For each collector node, the user can:

• Start or stop the session with all registered and enabled providers
• Query session status
• Change trace log file mode
• Change trace log file size limit

The configurations log file mode and log file size limit does not take effect while trace session is in progress. These are applied when user stops the current session and then starts it again for this collector.

For each registered provider in this collector, the user can:

• Specify keywords to filter events from this provider
• Change trace level to filter events from this provider
• Enable or disable the provider in the trace session

The changes on State, Keywords and TraceLevel takes effect immediately while trace session is in progress.

Note

  Microsoft-WindowsPhone-Enterprise-Diagnostics-Provider (GUID - 3da494e4-0fe2-415C-b895-fb5265c5c83b) has the required debug resource files built into Windows OS, which will allow the logs files to be decoded on the remote machine. Any other logs may not have the debug resources required to decode.



Channel-based tracing

The type of event tracing exports event data from a specific channel. This is only supported on the desktop.

Users can add or delete a channel node using the full name, such as Microsoft-Windows-AppModel-Runtime/Admin.

The DiagnosticLog CSP maintains a log file for each channel node and the log file is overwritten if a start command is triggered again on the same channel node.

For each channel node, the user can:

• Export channel event data into a log file (.evtx)
• Enable or disable the channel from Event Log service to allow or disallow event data being written into the channel
• Specify an XPath query to filter events while exporting the channel event data

For more information about using DiagnosticLog to collect logs remotely from a PC or mobile device, see Diagnose MDM failures in Windows 10.

Here are the links to the DDFs:

• DiagnosticLog CSP version 1.2
• DiagnosticLog CSP version 1.3

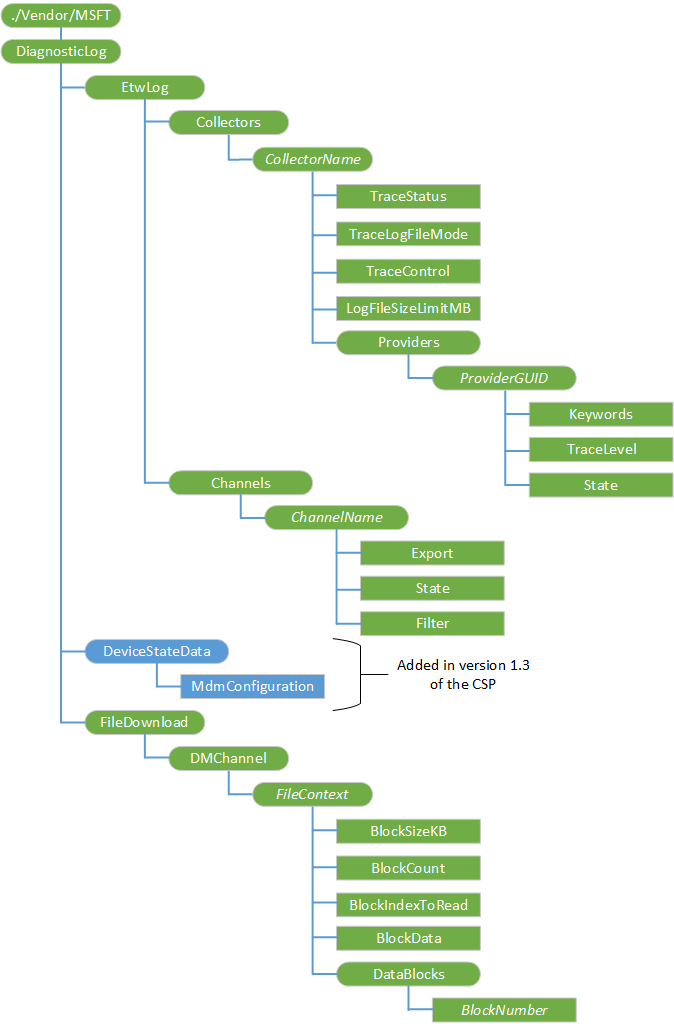

The following diagram shows the DiagnosticLog configuration service provider in tree format.

./Vendor/MSFT/DiagnosticLog
The root node for the DiagnosticLog configuration service provider.

The following steps describe the process for gathering diagnostics using this CSP.

1. Specify a CollectorName for the container of the target ETW providers.

2. (Optional) Set logging and log file parameters using the following options:

   • TraceLogFileMode
   • LogFileSizeLimitMB

   Each of these are described later in this topic.

3. Indicate one or more target ETW providers by supplying its ProviderGUID to the Add operation of EtwLog/Collectors/CollectorName/Providers/ProviderGUID.

4. (Optional) Set logging and log file parameters using the following options:

   • TraceLevel
   • Keywords

   Each of these are described later in this topic.

5. Start logging using TraceControl EXECUTE command “START”

6. Perform actions on the target device that will generate activity in the log files.

7. Stop logging using TraceControl EXECUTE command “STOP”

8. Collect the log file located in the %temp% folder using the method described in Reading a log file

EtwLog
Node to contain the Error Tracing for Windows log.

The supported operation is Get.

EtwLog/Collectors
Interior node to contain dynamic child interior nodes for active providers.

The supported operation is Get.

EtwLog/Collectors/****CollectorName
Dynamic nodes to represent active collector configuration.

Supported operations are Add, Delete, and Get.

Add a collector

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Add>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">node</Format>
                </Meta>
            </Item>
        </Add>
        <Final/>
    </SyncBody>
</SyncML>

Delete a collector

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Delete>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement</LocURI>
                </Target>
            </Item>
        </Delete>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Collectors/CollectorName/TraceStatus
Specifies whether the current logging status is running.

The data type is an integer.

The supported operation is Get.

The following table represents the possible values:

Value	Description
0	Stopped
1	Started



EtwLog/Collectors/CollectorName/TraceLogFileMode
Specifies the log file logging mode.

The data type is an integer.

Supported operations are Get and Replace.

The following table lists the possible values:

Value	Description
EVENT_TRACE_FILE_MODE_SEQUENTIAL (0x00000001)	Writes events to a log file sequentially; stops when the file reaches its maximum size.
EVENT_TRACE_FILE_MODE_CIRCULAR (0x00000002)	Writes events to a log file. After the file reaches the maximum size, the oldest events are replaced with incoming events.



EtwLog/Collectors/CollectorName/TraceControl
Specifies the logging and report action state.

The data type is a string.

The following table lists the possible values:

Value	Description
START	Start log tracing.
STOP	Stop log tracing



The supported operation is Execute.

After you have added a logging task, you can start a trace by running an Execute command on this node with the value START.

To stop the trace, running an execute command on this node with the value STOP.

Start collector trace logging

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/TraceControl</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">chr</Format>
                </Meta>
                <Data>START</Data>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

Stop collector trace logging

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/TraceControl</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">chr</Format>
                </Meta>
                <Data>STOP</Data>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Collectors/CollectorName/LogFileSizeLimitMB
Sets the log file size limit, in MB.

The data type is an integer.

Valid values are 1-2048. The default value is 4.

Supported operations are Get and Replace.

EtwLog/Collectors/CollectorName/Providers
Interior node to contain dynamic child interior nodes for active providers.

The supported operation is Get.

EtwLog/Collectors/CollectorName/Providers/****ProviderGUID
Dynamic nodes to represent active provider configuration per provider GUID.

Note

  Microsoft-WindowsPhone-Enterprise-Diagnostics-Provider (GUID - 3da494e4-0fe2-415C-b895-fb5265c5c83b) has the required debug resource files built into Windows OS, which will allow the logs files to be decoded on the remote machine. Any other logs may not have the debug resources required to decode.



Supported operations are Add, Delete, and Get.

Add a provider

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Add>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/Providers/3da494e4-0fe2-415C-b895-fb5265c5c83b</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">node</Format>
                </Meta>
            </Item>
        </Add>
        <Final/>
    </SyncBody>
</SyncML>

Delete a provider

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Delete>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/Providers/3da494e4-0fe2-415C-b895-fb5265c5c83b</LocURI>
                </Target>
            </Item>
        </Delete>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Collectors/CollectorName/Providers/ProvderGUID/TraceLevel
Specifies the level of detail included in the trace log.

The data type is an integer.

Supported operations are Get and Replace.

The following table lists the possible values.

Value	Description
1 – TRACE_LEVEL_CRITICAL	Abnormal exit or termination events
2 – TRACE_LEVEL_ERROR	Severe error events
3 – TRACE_LEVEL_WARNING	Warning events such as allocation failures
4 – TRACE_LEVEL_INFORMATION	Non-error events, such as entry or exit events
5 – TRACE_LEVEL_VERBOSE	Detailed information



Set provider TraceLevel

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/Providers/3da494e4-0fe2-415C-b895-fb5265c5c83b/TraceLevel</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">int</Format>
                </Meta>
                <Data>1</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Collectors/CollectorName/Providers/ProvderGUID/Keywords
Specifies the provider keywords to be used as MatchAnyKeyword for this provider.

the data type is a string.

Supported operations are Get and Replace.

Default value is 0 meaning no keyword.

Get provider Keywords

<SyncML xmlns="SYNCML:SYNCML1.2">
  <SyncBody>
    <Get>
      <CmdID>1</CmdID>
      <Item>
        <Target>
          <LocURI>
            ./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/Providers/3da494e4-0fe2-415C-b895-fb5265c5c83b/Keywords
          </LocURI>
        </Target>
      </Item>
    </Get>
    <Final/>
  </SyncBody>
</SyncML>

Set provider Keywords

<SyncML xmlns="SYNCML:SYNCML1.2">
  <SyncBody>
    <Replace>
      <CmdID>4</CmdID>
      <Item>
        <Target>
          <LocURI>
            ./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/Providers/3da494e4-0fe2-415C-b895-fb5265c5c83b/Keywords
          </LocURI>
        </Target>
        <Meta>
          <Format xmlns="syncml:metinf">chr</Format>
          <Type>text/plain</Type>
        </Meta>
        <Data>12345678FFFFFFFF</Data>
      </Item>
    </Replace>
    <Final/>
  </SyncBody>
</SyncML>

EtwLog/Collectors/CollectorName/Providers/ProvderGUID/State
Specifies if this provider is enabled in the trace session.

The data type is a boolean.

Supported operations are Get and Replace. This change will be effective during active trace session.

The following table lists the possible values. Default value is TRUE.

Value	Description
TRUE	Provider is enabled in the trace session.
FALSE	Provider is disables in the trace session.



Set provider State

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Collectors/DeviceManagement/Providers/3da494e4-0fe2-415C-b895-fb5265c5c83b/State</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">bool</Format>
                </Meta>
                <Data>false</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Channels
Interior node to contain dynamic child interior nodes for registered channels.

The supported operation is Get.

EtwLog/Channels/****ChannelName
Dynamic nodes to represent a registered channel. The node name must be a valid Windows event log channel name, such as "Microsoft-Client-Licensing-Platform%2FAdmin"

Supported operations are Add, Delete, and Get.

Add a channel

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Add>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Client-Licensing-Platform%2FAdmin</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">node</Format>
                </Meta>
            </Item>
        </Add>
        <Final/>
    </SyncBody>
</SyncML>

Delete a channel

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Delete>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Client-Licensing-Platform%2FAdmin</LocURI>
                </Target>
            </Item>
        </Delete>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Channels/ChannelName/Export
Node to trigger the command to export channel event data into the log file.

The supported operation is Execute.

Export channel event data

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Exec>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Client-Licensing-Platform%2FAdmin/Export</LocURI>
                </Target>
            </Item>
        </Exec>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Channels/ChannelName/Filter
Specifies the XPath query string to filter the events while exporting.

The data type is a string.

Supported operations are Get and Replace.

Default value is empty string.

Get channel Filter

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Get>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Client-Licensing-Platform%2FAdmin/Filter</LocURI>
                </Target>
            </Item>
        </Get>
        <Final/>
    </SyncBody>
</SyncML>

EtwLog/Channels/ChannelName/State
Specifies if the Channel is enabled or disabled.

The data type is a boolean.

Supported operations are Get and Replace.

The following table lists the possible values.

Value	Description
TRUE	Channel is enabled.
FALSE	Channel is disabled.



Get channel State

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Get>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Client-Licensing-Platform%2FAdmin/State</LocURI>
                </Target>
            </Item>
        </Get>
        <Final/>
    </SyncBody>
</SyncML>

Set channel State

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>2</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/EtwLog/Channels/Microsoft-Client-Licensing-Platform%2FAdmin/State</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">bool</Format>
                </Meta>
                <Data>false</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

DeviceStateData
Added in version 1.3 of the CSP in Windows 10, version 1607. Node for all types of device state data that are exposed.

DeviceStateData/MdmConfiguration
Added in version 1.3 of the CSP in Windows 10, version 1607. Triggers the snapping of device management state data with SNAP.

The supported value is Execute.

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
  <SyncBody>
    <Exec>
      <CmdID>2</CmdID>
      <Item>
        <Target>
          <LocURI>./Vendor/MSFT/DiagnosticLog/DeviceStateData/MdmConfiguration</LocURI>
        </Target>
        <Meta>
           <Format xmlns="syncml:metinf">chr</Format>
        </Meta>
        <Data>SNAP</Data>
      </Item>
    </Exec>
    <Final/>
  </SyncBody>
</SyncML>

FileDownload
Node to contain child nodes for log file transportation protocols and corresponding actions.

FileDownload/DMChannel
Node to contain child nodes using DM channel for transport protocol.

FileDownload/DMChannel/****FileContext
Dynamic interior nodes that represents per log file context.

FileDownload/DMChannel/FileContext/BlockSizeKB
Sets the log read buffer, in KB.

The data type is an integer.

Valid values are 1-16. The default value is 4.

Supported operations are Get and Replace.

Set BlockSizeKB

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/FileDownload/DMChannel/DeviceManagement/BlockSizeKB</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">int</Format>
                </Meta>
                <Data>1</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

Get BlockSizeKB

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Get>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/FileDownload/DMChannel/DeviceManagement/BlockSizeKB</LocURI>
                </Target>
            </Item>
        </Get>
        <Final/>
    </SyncBody>
</SyncML>

FileDownload/DMChannel/FileContext/BlockCount
Represents the total read block count for the log file.

The data type is an integer.

The only supported operation is Get.

Get BlockCount

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Get>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/FileDownload/DMChannel/DeviceManagement/BlockCount</LocURI>
                </Target>
            </Item>
        </Get>
        <Final/>
    </SyncBody>
</SyncML>

FileDownload/DMChannel/FileContext/BlockIndexToRead
Represents the read block start location.

The data type is an integer.

Supported operations are Get and Replace.

Set BlockIndexToRead at 0

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/FileDownload/DMChannel/DeviceManagement/BlockIndexToRead</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">int</Format>
                </Meta>
                <Data>0</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

Set BlockIndexToRead at 1

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Replace>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/FileDownload/DMChannel/DeviceManagement/BlockIndexToRead</LocURI>
                </Target>
                <Meta>
                    <Format xmlns="syncml:metinf">int</Format>
                </Meta>
                <Data>1</Data>
            </Item>
        </Replace>
        <Final/>
    </SyncBody>
</SyncML>

FileDownload/DMChannel/FileContext/BlockData
The data type is Base64.

The only supported operation is Get.

Get BlockData

<?xml version="1.0"?>
<SyncML xmlns="SYNCML:SYNCML1.2">
    <SyncBody>
        <Get>
            <CmdID>1</CmdID>
            <Item>
                <Target>
                    <LocURI>./Vendor/MSFT/DiagnosticLog/FileDownload/DMChannel/DeviceManagement/BlockData</LocURI>
                </Target>
            </Item>
        </Get>
        <Final/>
    </SyncBody>
</SyncML>

FileDownload/DMChannel/FileContext/DataBlocks
Node to transfer the selected log file block to the DM server.

FileDownload/DMChannel/FileContext/DataBlocks/****BlockNumber
The data type is Base64.

The only supported operation is Get.

Reading a log file

1. Enumerate log file under ./Vendor/MSFT/DiagnosticLog/FileDownload/DMChannel
2. Select a log file in the Enumeration result
3. Set BlockSizeKB per DM server payload limitation
4. Get BlockCount to determine total read request
5. Set BlockIndexToRead to initialize read start point
6. Get BlockData for upload log block
7. Increase BlockIndexToRead
8. Repeat step 5 to 7 until BlockIndexToRead == (BlockIndexToRead – 1)
