RemoteRing CSP

The RemoteRing configuration service provider can be used to remotely trigger a device to produce an audible ringing sound regardless of the volume that is set on the device.

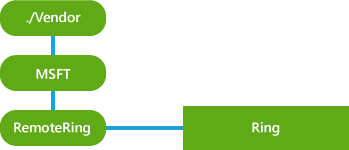

The following diagram shows the RemoteRing configuration service provider in tree format.

provisioning-csp-remotering

Ring
Required. The node accepts requests to ring the device.

The supported operation is Exec.

Examples

The following sample shows how to initiate a remote ring on the device.

<Exec>
  <CmdID>5</CmdID>
    <Item>
    <Target>
      <LocURI>./Vendor/MSFT/RemoteRing/Ring </LocURI>
    </Target>
    </Item>
</Exec>
