Surface Asset Tag Tool

Surface Asset Tag is a command line interface (CLI) utility that allows you to view, assign, and modify an assigned asset tag value for Surface devices. It works on Surface Pro 3 and all newer Surface devices.

System requirements

• Surface Pro 3 or later

• UEFI firmware version 3.9.150.0 or later

Using Surface Asset Tag

To run Surface Asset Tag:

1. On the Surface device, download Surface Asset Tag.zip from the Microsoft Download Center, extract the zip file, and save AssetTag.exe in desired folder (in this example, C:\assets).

2. Open a command console as an Administrator and run AssetTag.exe, entering the full path to the tool.

3. Restart Surface.

Asset Tag tool commands

In the following examples, AssetTag.exe is saved in a directory on a local machine (C:\assets).

To get the proposed asset tag, run AssetTag -g.

Example

C:\assets\AssetTag.exe -g

To clear the proposed asset tag, run AssetTag -s.

Example

C:\assets\AssetTag.exe -s

To set the proposed asset tag, run AssetTag -s testassettag12.

Example

C:\assets\AssetTag.exe -s testassettag12

Note

The asset tag value must contain between 1 and 36 characters. Valid characters include A-Z, a-z, 0-9, period (.) and hyphen (-).

Managing asset tags

You can view the existing asset tag in the UEFI settings under Device Information (Control Panel > Recovery > Advanced Startup > Restart now.)

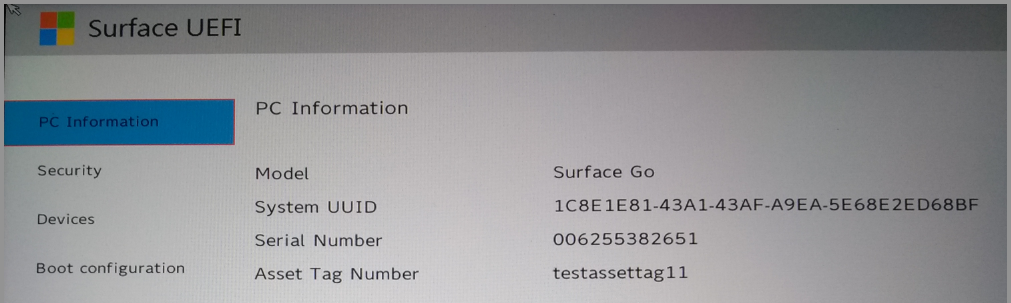

The figure below shows the results of running the Asset Tag Tool on Surface Go.

Figure 1. Results of running Surface Asset Tag tool on Surface Go

Alternately, you can use WMI to query the existing asset tag on a device:

(Get-WmiObject -query “Select * from Win32_SystemEnclosure”)

Example

C:\Windows\System32> (Get-WmiObject -query “Select * from Win32_SystemEnclosure”)

Using PowerShell

You can use the script below as a way of getting the proposed value and interpreting any errors.

AssetTag -g \> $asset\_tag 2\> $error\_message
$asset\_tag\_return\_code = $LASTEXITCODE
$asset\_tag = $asset\_tag.Trim(“\`r\`n”)

if ($asset\_tag\_return\_code -eq 0) {
Write-Output (“Good Tag = ” + $asset\_tag)
} else {
Write-Output (
“Failure: Code = ” + $asset\_tag\_return\_code +
“Tag = ” + $asset\_tag +
“Message = ” + $error\_message)

}
