Windows Deployment Services (WDS) boot.wim support
Applies to:
- Windows 10
- Windows 11
The operating system deployment functionality of Windows Deployment Services (WDS) is being partially deprecated. Starting with Windows 11, workflows that rely on boot.wim from installation media or on running Windows Setup in WDS mode will no longer be supported.

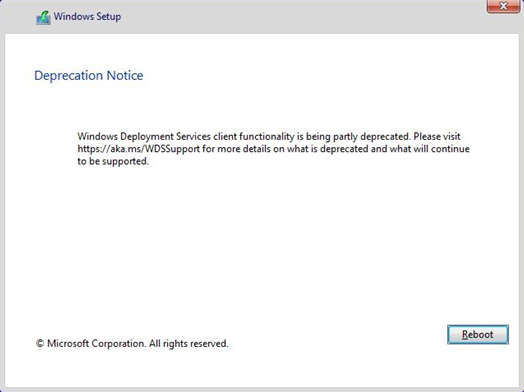

When you PXE-boot from a WDS server that uses the boot.wim file from installation media as its boot image, Windows Setup automatically launches in WDS mode. This workflow is deprecated for Windows 11 and newer boot images. The following deprecation message is displayed:
Deployment scenarios affected
The table below provides support details for specific deployment scenarios. Boot.wim is the boot.wim file obtained from the Windows source files for each specified version of Windows.
| Windows Version being deployed | Boot.wim from Windows 10 | Boot.wim from Windows Server 2016 | Boot.wim from Windows Server 2019 | Boot.wim from Windows Server 2022 | Boot.wim from Windows 11 |
|---|---|---|---|---|---|
| Windows 10 | Supported, using a boot image from matching or newer version. | Supported, using a boot image from Windows 10, version 1607 or later. | Supported, using a boot image from Windows 10, version 1809 or later. | Not supported. | Not supported. |
| Windows Server 2016 | Supported, using a boot image from Windows 10, version 1607 or later. | Supported. | Not supported. | Not supported. | Not supported. |
| Windows Server 2019 | Supported, using a boot image from Windows 10, version 1809 or later. | Supported. | Supported. | Not supported. | Not supported. |
| Windows Server 2022 | Deprecated, with a warning message. | Deprecated, with a warning message. | Deprecated, with a warning message. | Deprecated, with a warning message. | Not supported. |
| Windows 11 | Not supported, blocked. | Not supported, blocked. | Not supported, blocked. | Not supported, blocked. | Not supported, blocked. |
Reason for the change
Alternatives to WDS, such as Microsoft Configuration Manager and Microsoft Deployment Toolkit (MDT) provide a better, more flexible, and feature-rich experience for deploying Windows images.
Note
Microsoft Deployment Toolkit (MDT) only supports deployment of Windows 10. It doesn't support deployment of Windows 11. For more information, see Supported platforms.
Not affected
WDS PXE boot isn't affected by this change. You can still use WDS to PXE boot devices with custom boot images, but you can't use boot.wim as the boot image and run Windows Setup in WDS mode.
You can still run Windows Setup from a network share. Workflows that use a custom boot.wim, such as MDT or Configuration Manager aren't affected by this change.
Summary
- Windows 11 workflows that rely on boot.wim from installation media will be blocked. You can't perform an end to end deployment of Windows 11 using only WDS.
- Windows 10, Windows Server 2019, and previous operating system versions aren't affected by this change.
- Windows Server 2022 workflows that rely on boot.wim from installation media will show a non-blocking deprecation notice. The notice can be dismissed, and currently the workflow isn't blocked.
- Windows Server workflows after Windows Server 2022 that rely on boot.wim from installation media are blocked.
If you currently use WDS with boot.wim from installation media for end-to-end operating system deployment, and your OS version isn't supported, deprecated, or blocked, it's recommended that you use deployment tools such as MDT, Configuration Manager, or a non-Microsoft solution with a custom boot.wim image.
