5154(S): The Windows Filtering Platform has permitted an application or service to listen on a port for incoming connections.

Applies to

• Windows 10
• Windows Server 2016

Subcategory: Audit Filtering Platform Connection

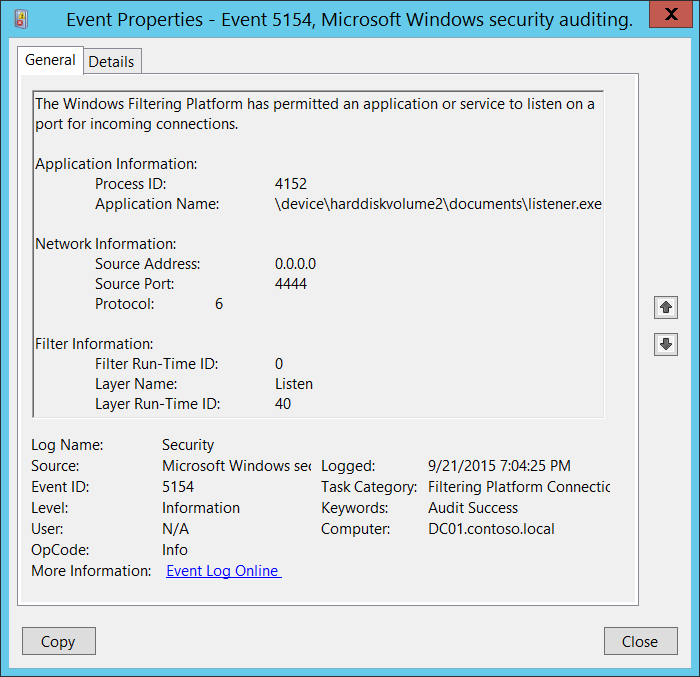

Event Description:

This event generates every time Windows Filtering Platform permits an application or service to listen on a port.

Note

  For recommendations, see Security Monitoring Recommendations for this event.

Event XML:

- <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
- <System>
 <Provider Name="Microsoft-Windows-Security-Auditing" Guid="{54849625-5478-4994-A5BA-3E3B0328C30D}" />
 <EventID>5154</EventID>
 <Version>0</Version>
 <Level>0</Level>
 <Task>12810</Task>
 <Opcode>0</Opcode>
 <Keywords>0x8020000000000000</Keywords>
 <TimeCreated SystemTime="2015-09-22T02:04:25.757462900Z" />
 <EventRecordID>287929</EventRecordID>
 <Correlation />
 <Execution ProcessID="4" ThreadID="3968" />
 <Channel>Security</Channel>
 <Computer>DC01.contoso.local</Computer>
 <Security />
 </System>
- <EventData>
 <Data Name="ProcessId">4152</Data>
 <Data Name="Application">\\device\\harddiskvolume2\\documents\\listener.exe</Data>
 <Data Name="SourceAddress">0.0.0.0</Data>
 <Data Name="SourcePort">4444</Data>
 <Data Name="Protocol">6</Data>
 <Data Name="FilterRTID">0</Data>
 <Data Name="LayerName">%%14609</Data>
 <Data Name="LayerRTID">40</Data>
 </EventData>
 </Event>

Required Server Roles: None.

Minimum OS Version: Windows Server 2008, Windows Vista.

Event Versions: 0.

Field Descriptions:

Application Information:

• Process ID [Type = Pointer]: hexadecimal Process ID of the process which was permitted to listen on the port. Process ID (PID) is a number used by the operating system to uniquely identify an active process. To see the PID for a specific process you can, for example, use Task Manager (Details tab, PID column):



  If you convert the hexadecimal value to decimal, you can compare it to the values in Task Manager.

  You can also correlate this process ID with a process ID in other events, for example, “4688: A new process has been created” Process Information\New Process ID.

• Application Name [Type = UnicodeString]: full path and the name of the executable for the process.

  Logical disk is displayed in format \device\harddiskvolume#. You can get all local volume numbers by using diskpart utility. The command to get volume numbers using diskpart is “list volume”:

Network Information:

• Source Address [Type = UnicodeString]: local IP address on which application requested to listen on the port.

  • IPv4 Address

  • IPv6 Address

  • :: - all IP addresses in IPv6 format

  • 0.0.0.0 - all IP addresses in IPv4 format

  • 127.0.0.1 , ::1 - localhost

• Source Port [Type = UnicodeString]: source TCP\UDP port number which was requested for listening by application.

• Protocol [Type = UInt32]: protocol number. For example:

  • 6 – TCP.

  • 17 – UDP.

    More information about possible values for this field: https://technet.microsoft.com/en-us/library/cc959827.aspx.

Filter Information:

• Filter Run-Time ID [Type = UInt64]: unique filter ID which allows application to listen on the specific port. By default Windows firewall won't prevent a port from being listened by an application and if this application doesn’t match any filters you will get value 0 in this field.

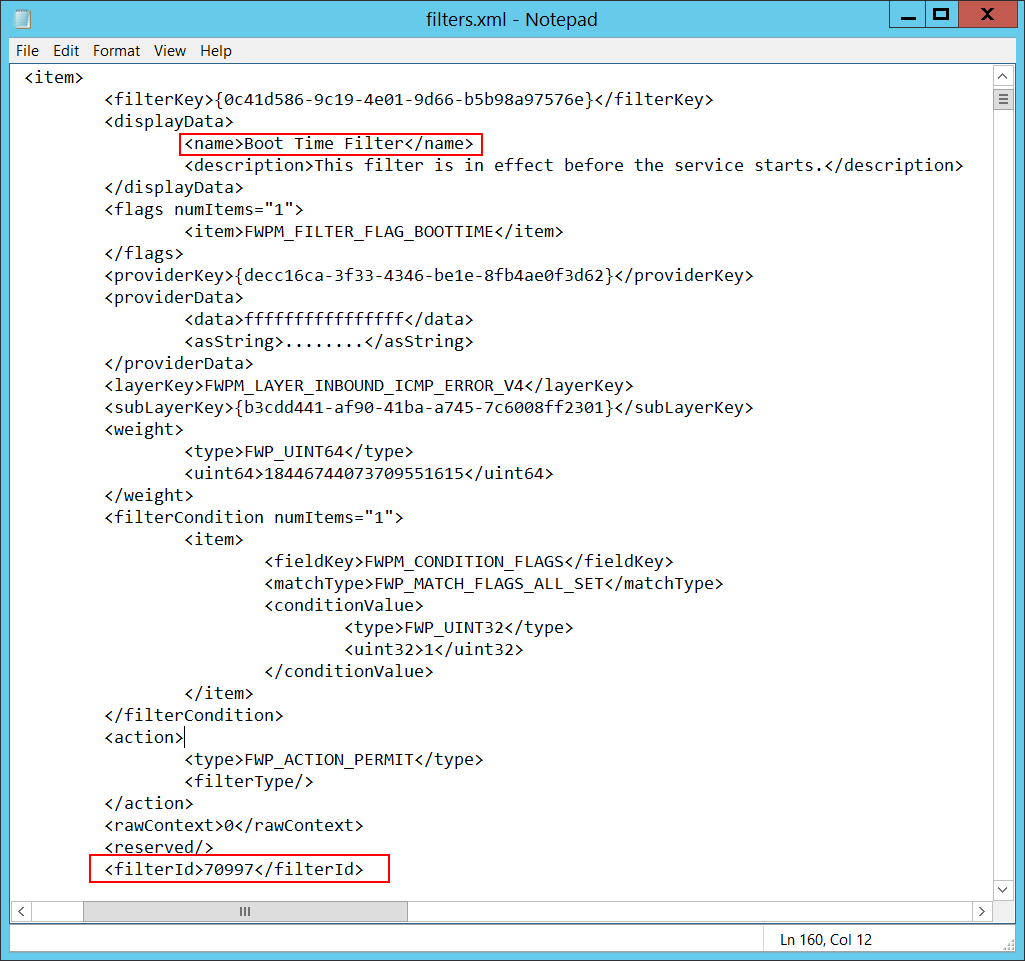

  To find specific Windows Filtering Platform filter by ID you need to execute the following command: netsh wfp show filters. As result of this command filters.xml file will be generated. You need to open this file and find specific substring with required filter ID (<filterId>), for example:

• Layer Name [Type = UnicodeString]: Application Layer Enforcement layer name.

• Layer Run-Time ID [Type = UInt64]: Windows Filtering Platform layer identifier. To find specific Windows Filtering Platform layer ID you need to execute the following command: netsh wfp show state. As result of this command wfpstate.xml file will be generated. You need to open this file and find specific substring with required layer ID (<layerId>), for example:

Security Monitoring Recommendations

For 5154(S): The Windows Filtering Platform has permitted an application or service to listen on a port for incoming connections.

• If you have a “whitelist” of applications that are associated with certain operating systems or server roles, and that are expected to listen on specific ports, monitor this event for “Application Name” and other relevant information.

• If a certain application is allowed to listen only on specific port numbers, monitor this event for “Application Name” and “Network Information\Source Port.”

• If a certain application is allowed to listen only on a specific IP address, monitor this event for “Application Name” and “Network Information\Source Address.”

• If a certain application is allowed to use only TCP or UDP protocols, monitor this event for “Application Name” and the protocol number in “Network Information\Protocol.”

• If you have a pre-defined application which should be used to perform the operation that was reported by this event, monitor events with “Application” not equal to your defined application.

• You can monitor to see if “Application” is not in a standard folder (for example, not in System32 or Program Files) or is in a restricted folder (for example, Temporary Internet Files).

• If you have a pre-defined list of restricted substrings or words in application names (for example, “mimikatz” or “cain.exe”), check for these substrings in “Application.”

• Typically this event has an informational purpose.
