Prepare for deployment with MDT

Applies to

  • Windows 10

This topic will walk you through the steps necessary to create the server structure required to deploy the Windows 10 operating system using the Microsoft Deployment Toolkit (MDT). It covers the installation of the necessary system prerequisites, the creation of shared folders and service accounts, and the configuration of security permissions in the file system and in Active Directory.

For the purposes of this topic, we will use two computers: DC01 and MDT01

  • Both servers are running Windows Server 2012 R2. You can also use a later version of Windows Server.
  • DC01 is a domain controller and DNS server for contoso.com, representing the fictitious Contoso Corporation.
  • MDT01 is a domain member server in contoso.com and has a D: drive that will be used for data.
    • The data drive requires at least 100GB of disk space.

For more details on requirements for the proof of concept environment used in this guide, see Deploy Windows 10 with the Microsoft Deployment Toolkit.

Install Windows ADK for Windows 10

These steps assume that you have the MDT01 member server running and configured as a domain member server.

On MTD01, visit the Download and install the Windows ADK page and download the following to the D:\Downloads\ADK folder on MDT01 (you will need to create the folder):

Tip

You might need to temporarily disable IE Enhanced Security Configuration for administrators in order to download files from the Internet to the server. This setting can be disabled by using Server Manager (Local Server/Properties).

  1. On MDT01, sign in as an administrator in the CONTOSO domain.
    • For the purposes of this guide, we are using a Domain Admin account of admin with a password of pass@word3. You can use your own administrator username and password as long as you properly adjust all steps in this guide that use login these credentials.
  2. Start the ADK Setup (D:\Downloads\ADK\adksetup.exe), click Next twice to accept the default installation parameters, click Accept to accept the license agreement, and then on the Select the features you want to install page accept the default list of features by clicking Install. This will install deployment tools and the USMT.
  3. Start the WinPE Setup (D:\Downloads\ADK\adkwinpesetup.exe), click Next twice to accept the default installation parameters, click Accept to accept the license agreement, and then on the Select the features you want to install page click Install. This will install Windows PE for x86, AMD64, ARM, and ARM64.
  4. Extract the WSIM 1903 update (D:\Downloads\ADK\WSIM1903.zip) and then run the UpdateWSIM.bat file.
    • You can confirm that the update is applied by viewing properties of the ImageCat.exe and ImgMgr.exe files at C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\WSIM and verifying that the Details tab displays a File version of 10.0.18362.144.

Install MDT

Note

MDT installation requires the following:

  • The Windows ADK for Windows 10 (installed in the previous procedure)
  • Windows PowerShell (version 5.1 is recommended)
  • Microsoft .NET Framework
  1. Visit the MDT resource page and click Download MDT.
  2. Save the MicrosoftDeploymentToolkit_x64.msi file to the D:\Downloads\MDT folder on MDT01.
    • Note: As of the publishing date for this guide, the current version of MDT is 8456, but a later version should also work.
  3. Install MDT (D:\Downloads\MDT\MicrosoftDeploymentToolkit_x64.exe) with the default settings.

Create the OU structure

Note

: The following procedures are performed on DC01.

To create the OU structure, you can use the Active Directory Users and Computers console (dsa.msc), or you can use Windows PowerShell.

To use Windows PowerShell, copy the following commands into a text file and save it as c:\ou.ps1. Be sure that you are viewing file extensions and that you save the file with the .ps1 extension.

$oulist = Import-csv -Path c:\oulist.txt
ForEach($entry in $oulist){
    $ouname = $entry.ouname
    $oupath = $entry.oupath
    New-ADOrganizationalUnit -Name $ouname -Path $oupath -WhatIf
    Write-Host -ForegroundColor Green "OU $ouname is created in the location $oupath"
}

Next, copy the following list of OU names and paths into a text file and save it as c:\oulist.txt

OUName,OUPath
Contoso,"DC=CONTOSO,DC=COM"
Accounts,"OU=Contoso,DC=CONTOSO,DC=COM"
Computers,"OU=Contoso,DC=CONTOSO,DC=COM"
Groups,"OU=Contoso,DC=CONTOSO,DC=COM"
Admins,"OU=Accounts,OU=Contoso,DC=CONTOSO,DC=COM"
Service Accounts,"OU=Accounts,OU=Contoso,DC=CONTOSO,DC=COM"
Users,"OU=Accounts,OU=Contoso,DC=CONTOSO,DC=COM"
Servers,"OU=Computers,OU=Contoso,DC=CONTOSO,DC=COM"
Workstations,"OU=Computers,OU=Contoso,DC=CONTOSO,DC=COM"
Security Groups,"OU=Groups,OU=Contoso,DC=CONTOSO,DC=COM"

Lastly, open an elevated Windows PowerShell prompt on DC01, navigate to the c:\ directory and run the ou.ps1 script:

.\ou.ps1

This will create an OU structure as shown below.

OU structure

To use the Active Directory Users and Computers console (instead of PowerShell):

  1. On DC01, using Active Directory User and Computers, in the contoso.com domain level, create a top-level OU named Contoso.
  2. In the Contoso OU, create the following OUs:
    1. Accounts
    2. Computers
    3. Groups
  3. In the Contoso / Accounts OU, create the following underlying OUs:
    1. Admins
    2. Service Accounts
    3. Users
  4. In the Contoso / Computers OU, create the following underlying OUs:
    1. Servers
    2. Workstations
  5. In the Contoso / Groups OU, create the following OU:
    1. Security Groups

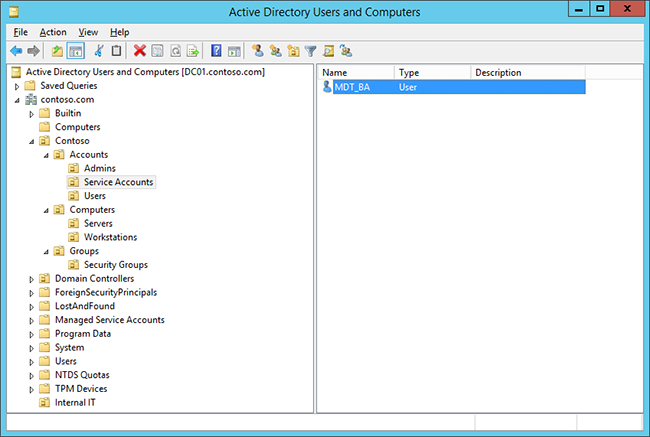

The final result of either method is shown below (the MDT_BA account will be created next).

Create the MDT service account

When creating a reference image, you need an account for MDT. The MDT build account is used for Windows Preinstallation Environment (Windows PE) to connect to MDT01.

To create an MDT build account, open an elevalted Windows PowerShell prompt on DC01 and enter the following (copy and paste the entire command noticing the scroll bar at the bottom):

New-ADUser -Name MDT_BA -UserPrincipalName MDT_BA -path "OU=Service Accounts,OU=Accounts,OU=Contoso,DC=CONTOSO,DC=COM" -Description "MDT Build Account" -AccountPassword (ConvertTo-SecureString "pass@word3" -AsPlainText -Force) -ChangePasswordAtLogon $false -PasswordNeverExpires $true -Enabled $true

If you have the Active Directory Users and Computers console open you can refresh the view and see this new account in the Contoso\Accounts\Service Accounts OU as shown in the screenshot above.

Create and share the logs folder

By default MDT stores the log files locally on the client. In order to capture a reference image, you will need to enable server-side logging and, to do that, you will need to have a folder in which to store the logs. For more information, see Create a Windows 10 reference image.

  1. On MDT01, sign in as CONTOSO\admin.

  2. Create and share the D:\Logs folder by running the following commands in an elevated Windows PowerShell prompt:

    New-Item -Path D:\Logs -ItemType directory
    New-SmbShare -Name Logs$ -Path D:\Logs -ChangeAccess EVERYONE
    icacls D:\Logs /grant '"MDT_BA":(OI)(CI)(M)'

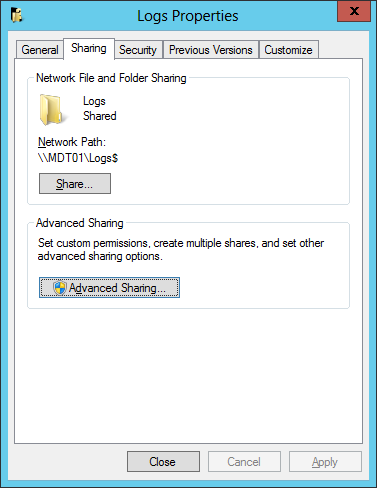

See the following example:

Logs folder

Use CMTrace to read log files (optional)

The log files in MDT Lite Touch are formatted to be read by Configuration Manager Trace (CMTrace), which is available as part of the Microsoft System 2012 R2 Center Configuration Manager Toolkit. You should also download this tool.

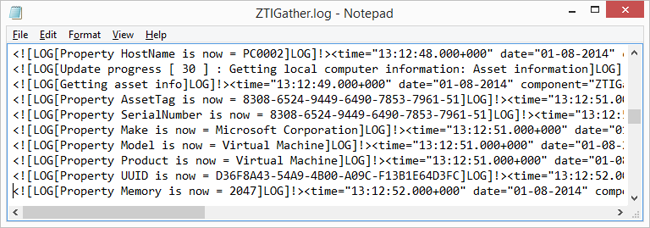

You can use Notepad (example below):

figure 8

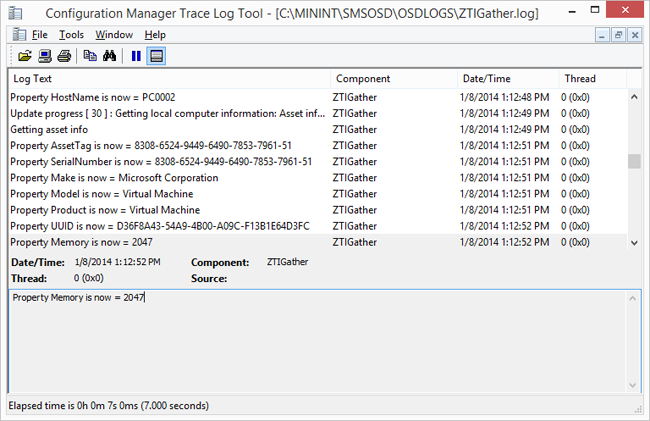

Alternatively, CMTrace formatting makes the logs much easier to read. See the same log file below, opened in CMTrace:

figure 9

Next steps

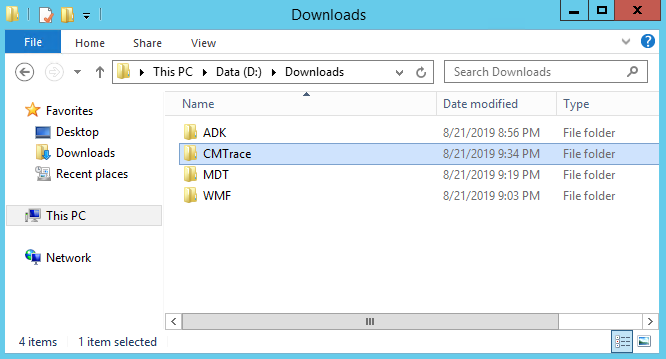

The following is an example of files that have been downloaded and installed (including optional CMTrace) on MDT at this point in the lab.

downloads

When you have completed all the steps in this section to prepare for deployment, see Create a Windows 10 reference image.
