Microsoft Defender ATP SIEM alert API fields

Applies to:

• Microsoft Defender Advanced Threat Protection (Microsoft Defender ATP)

Want to experience Microsoft Defender ATP? Sign up for a free trial.

Understand what data fields are exposed as part of the alerts API and how they map to Microsoft Defender Security Center.

Alert API fields and portal mapping

The following table lists the available fields exposed in the alerts API payload. It shows examples for the populated values and a reference on how data is reflected on the portal.

The ArcSight field column contains the default mapping between the Microsoft Defender ATP fields and the built-in fields in ArcSight. You can download the mapping file from the portal when you enable the SIEM integration feature and you can modify it to match the needs of your organization. For more information, see Enable SIEM integration in Microsoft Defender ATP.

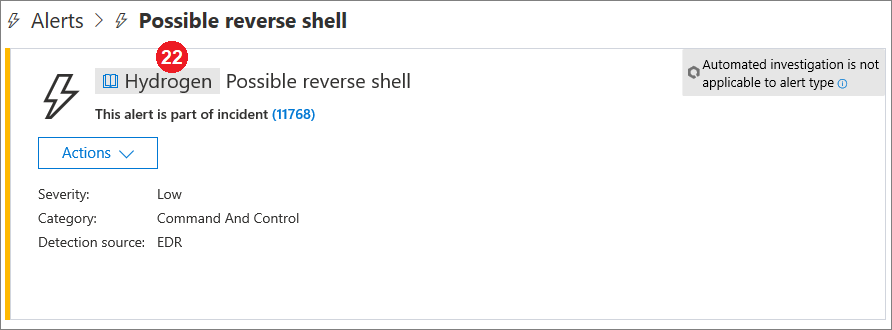

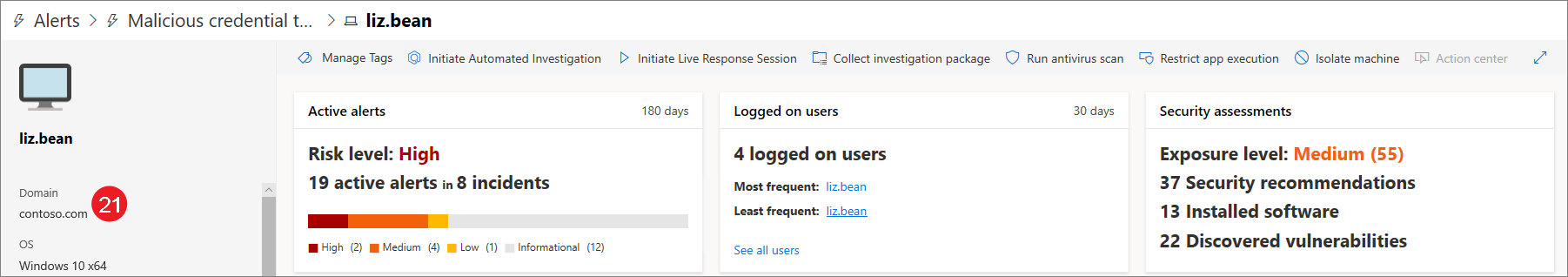

Field numbers match the numbers in the images below.

[!div class="mx-tableFixed"]

Portal label	SIEM field name	ArcSight field	Example value	Description
1	AlertTitle	name	Windows Defender AV detected 'Mikatz' high-severity malware	Value available for every alert.
2	Severity	deviceSeverity	High	Value available for every alert.
3	Category	deviceEventCategory	Malware	Value available for every alert.
4	Detection source	sourceServiceName	Antivirus	Windows Defender Antivirus or Microsoft Defender ATP. Value available for every alert.
5	MachineName	sourceHostName	desktop-4a5ngd6	Value available for every alert.
6	FileName	fileName	Robocopy.exe	Available for alerts associated with a file or process.
7	FilePath	filePath	C:\Windows\System32\Robocopy.exe	Available for alerts associated with a file or process.
8	UserDomain	sourceNtDomain	CONTOSO	The domain of the user context running the activity, available for Microsoft Defender ATP behavioral based alerts.
9	UserName	sourceUserName	liz.bean	The user context running the activity, available for Microsoft Defender ATP behavioral based alerts.
10	Sha1	fileHash	3da065e07b990034e9db7842167f70b63aa5329	Available for alerts associated with a file or process.
11	Sha256	deviceCustomString6	ebf54f745dc81e1958f75e4ca91dd0ab989fc9787bb6b0bf993e2f5	Available for Windows Defender AV alerts.
12	Md5	deviceCustomString5	db979c04a99b96d370988325bb5a8b21	Available for Windows Defender AV alerts.
13	ThreatName	deviceCustomString1	HackTool:Win32/Mikatz!dha	Available for Windows Defender AV alerts.
14	IpAddress	sourceAddress	218.90.204.141	Available for alerts associated to network events. For example, 'Communication to a malicious network destination'.
15	Url	requestUrl	down.esales360.cn	Available for alerts associated to network events. For example, 'Communication to a malicious network destination'.
16	RemediationIsSuccess	deviceCustomNumber2	TRUE	Available for Windows Defender AV alerts. ArcSight value is 1 when TRUE and 0 when FALSE.
17	WasExecutingWhileDetected	deviceCustomNumber1	FALSE	Available for Windows Defender AV alerts. ArcSight value is 1 when TRUE and 0 when FALSE.
18	AlertId	externalId	636210704265059241_673569822	Value available for every alert.
19	LinkToWDATP	flexString1	https://securitycenter.windows.com/alert/636210704265059241_673569822	Value available for every alert.
20	AlertTime	deviceReceiptTime	2017-05-07T01:56:59.3191352Z	The time the activity relevant to the alert occurred. Value available for every alert.
21	MachineDomain	sourceDnsDomain	contoso.com	Domain name not relevant for AAD joined machines. Value available for every alert.
22	Actor	deviceCustomString4	BORON	Available for alerts related to a known actor group.
21+5	ComputerDnsName	No mapping	liz-bean.contoso.com	The machine fully qualified domain name. Value available for every alert.
	LogOnUsers	sourceUserId	contoso\liz-bean; contoso\jay-hardee	The domain and user of the interactive logon user/s at the time of the event. Note: For machines on Windows 10 version 1607, the domain information will not be available.
	InternalIPv4List	No mapping	192.168.1.7, 10.1.14.1	List of IPV4 internal IPs for active network interfaces.
	InternalIPv6List	No mapping	fd30:0000:0000:0001:ff4e:003e:0009:000e, FE80:CD00:0000:0CDE:1257:0000:211E:729C	List of IPV6 internal IPs for active network interfaces.
Internal field	LastProcessedTimeUtc	No mapping	2017-05-07T01:56:58.9936648Z	Time when event arrived at the backend. This field can be used when setting the request parameter for the range of time that alerts are retrieved.
	Not part of the schema	deviceVendor		Static value in the ArcSight mapping - 'Microsoft'.
	Not part of the schema	deviceProduct		Static value in the ArcSight mapping - 'Microsoft Defender ATP'.
	Not part of the schema	deviceVersion		Static value in the ArcSight mapping - '2.0', used to identify the mapping versions.
