Deploy Windows 10 using PXE and Configuration Manager

Applies to

  • Windows 10

In this topic, you will learn how to deploy Windows 10 using Microsoft System Center 2012 R2 Configuration Manager deployment packages and task sequences. This topic will walk you through the process of deploying the Windows 10 Enterprise image to a Unified Extensible Firmware Interface (UEFI) machine named PC0001.

For the purposes of this topic, we will use two additional machines: DC01 and CM01. DC01 is a domain controller and CM01 is a machine running Windows Server 2012 R2 Standard. DC01, CM01, and PC0001 are all members of the domain contoso.com for the fictitious Contoso Corporation. For more details on the setup for this topic, please see Deploy Windows 10 with the Microsoft Deployment Toolkit.

  1. Start the PC0001 machine. At the Pre-Boot Execution Environment (PXE) boot menu, press Enter to allow it to PXE boot.

    figure 31

    Figure 31. PXE booting PC0001.

  2. On the Welcome to the Task Sequence Wizard page, type in the password Passw0rd! and click Next.

  3. On the Select a task sequence to run page, select Windows 10 Enterprise x64 RTM and click Next.

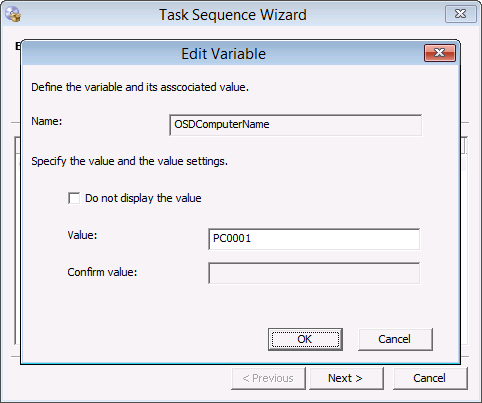

  4. On the Edit Task Sequence Variables page, double-click the OSDComputerName variable, and in the Value field, type PC0001 and click OK. Then click Next.

figure 32

Figure 32. Typing in the computer name.
