Demonstrate Autopilot deployment

Applies to

Windows 10

To get started with Windows Autopilot, you should try it out with a virtual machine (VM) or you can use a physical device that will be wiped and then have a fresh install of Windows 10.

In this topic you'll learn how to set-up a Windows Autopilot deployment for a VM using Hyper-V.

The following video provides an overview of the process:

Prerequisites

These are the things you'll need to complete this lab:

Windows 10 installation media	Windows 10 Professional or Enterprise (ISO file) for a supported version of Windows 10, semi-annual channel. If you do not already have an ISO to use, a link is provided to download an evaluation version of Windows 10 Enterprise.
Internet access	If you are behind a firewall, see the detailed networking requirements. Otherwise, just ensure that you have a connection to the Internet.
Hyper-V or a physical device running Windows 10	The guide assumes that you will use a Hyper-V VM, and provides instructions to install and configure Hyper-V if needed. To use a physical device, skip the steps to install and configure Hyper-V.
An account with Azure AD Premium license	This guide will describe how to obtain a free 30-day trial Azure AD Premium subscription that can be used to complete the lab.

Procedures

A summary of the sections and procedures in the lab is provided below. Follow each section in the order it is presented, skipping the sections that do not apply to you. Optional procedures are provided in the appendix.

If you already have Hyper-V and a Windows 10 VM, you can skip directly to the Capture the hardware ID step. The VM must be running Windows 10, version 1903 or a later version.

Verify support for Hyper-V
Enable Hyper-V
Create a demo VM
    Set ISO file location
    Determine network adapter name
    Use Windows PowerShell to create the demo VM
    Install Windows 10
Capture the hardware ID
Reset the VM back to Out-Of-Box-Experience (OOBE)
Verify subscription level
Configure company branding
Configure Microsoft Intune auto-enrollment
Register your VM
    Autopilot registration using Intune
    Autopilot registration using MSfB
Create and assign a Windows Autopilot deployment profile
    Create a Windows Autopilot deployment profile using Intune
       Create a device group
       Create the deployment profile
    Create a Windows Autopilot deployment profile using MSfB
See Windows Autopilot in action
Remove devices from Autopilot
    Delete (deregister) Autopilot device
Appendix A: Verify support for Hyper-V
Appendix B: Adding apps to your profile
    Add a Win32 app
       Prepare the app for Intune
       Create app in Intune
       Assign the app to your Intune profile
    Add Office 365
       Create app in Intune
       Assign the app to your Intune profile
Glossary

Verify support for Hyper-V

If you don't already have Hyper-V, we must first enable this on a computer running Windows 10 or Windows Server (2012 R2 or later).

If you are not sure that your device supports Hyper-V, or you have problems installing Hyper-V, see appendix A below for details on verifying that Hyper-V can be successfully installed.

Enable Hyper-V

To enable Hyper-V, open an elevated Windows PowerShell prompt and run the following command:

Enable-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V -All

This command works on all operating systems that support Hyper-V, but on Windows Server operating systems you must type an additional command (below) to add the Hyper-V Windows PowerShell module and the Hyper-V Manager console. The following command will also install Hyper-V if it isn't already installed, so if you're using Windows Server, you can just type the following command instead of using the Enable-WindowsOptionalFeature command:

Install-WindowsFeature -Name Hyper-V -IncludeManagementTools

When you are prompted to restart the computer, choose Yes. The computer might restart more than once.

Alternatively, you can install Hyper-V using the Control Panel in Windows under Turn Windows features on or off for a client operating system, or using Server Manager's Add Roles and Features Wizard on a server operating system, as shown below:

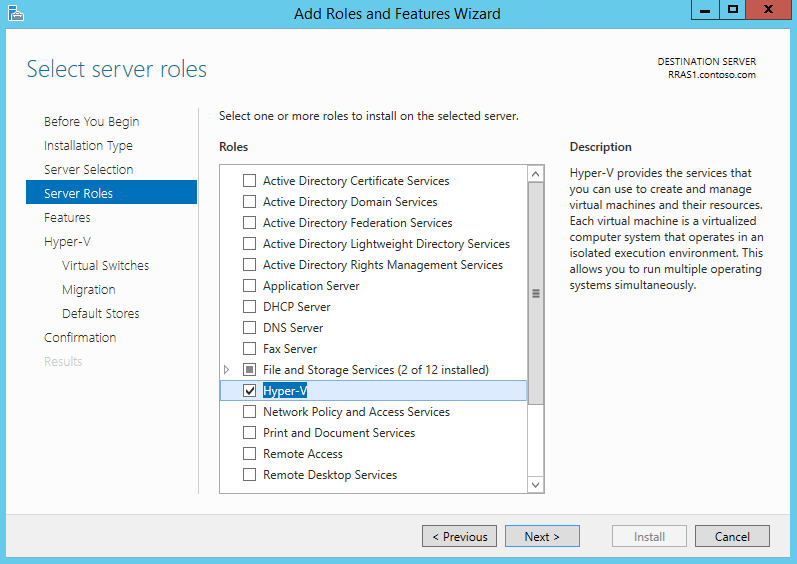

If you choose to install Hyper-V using Server Manager, accept all default selections. Also be sure to install both items under Role Administration Tools\Hyper-V Management Tools.

After installation is complete, open Hyper-V Manager by typing virtmgmt.msc at an elevated command prompt, or by typing Hyper-V in the Start menu search box.

To read more about Hyper-V, see Introduction to Hyper-V on Windows 10 and Hyper-V on Windows Server.

Create a demo VM

Now that Hyper-V is enabled, we need to create a VM running Windows 10. We can create a VM and virtual network using Hyper-V Manager, but it is simpler to use Windows PowerShell.

To use Windows PowerShell, we just need to know two things:

The location of the Windows 10 ISO file.

In the example, we assume the location is c:\iso\win10-eval.iso.
The name of the network interface that connects to the Internet.

In the example, we use a Windows PowerShell command to determine this automatically.

After we have set the ISO file location and determined the name of the appropriate network interface, we can install Windows 10.

Set ISO file location

You can download an ISO file for an evaluation version of the latest release of Windows 10 Enterprise from Evaluation Center.

When asked to select a platform, choose 64 bit.

After you download this file, the name will be extremely long (ex: 19042.508.200927-1902.20h2_release_svc_refresh_CLIENTENTERPRISEEVAL_OEMRET_x64FRE_en-us.iso).

So that it is easier to type and remember, rename the file to win10-eval.iso.
Create a directory on your computer named c:\iso and move the win10-eval.iso file there, so the path to the file is c:\iso\win10-eval.iso.
If you wish to use a different name and location for the file, you must modify the Windows PowerShell commands below to use your custom name and directory.

Determine network adapter name

The Get-NetAdaper cmdlet is used below to automatically find the network adapter that is most likely to be the one you use to connect to the Internet. You should test this command first by running the following at an elevated Windows PowerShell prompt:

(Get-NetAdapter |?{$_.Status -eq "Up" -and !$_.Virtual}).Name

The output of this command should be the name of the network interface you use to connect to the Internet. Verify that this is the correct interface name. If it is not the correct interface name, you'll need to edit the first command below to use your network interface name.

For example, if the command above displays Ethernet but you wish to use Ethernet2, then the first command below would be New-VMSwitch -Name AutopilotExternal -AllowManagementOS $true -NetAdapterName Ethernet2.

Use Windows PowerShell to create the demo VM

All VM data will be created under the current path in your PowerShell prompt. Consider navigating into a new folder before running the following commands.

New-VMSwitch -Name AutopilotExternal -AllowManagementOS $true -NetAdapterName (Get-NetAdapter |?{$_.Status -eq "Up" -and !$_.Virtual}).Name
New-VM -Name WindowsAutopilot -MemoryStartupBytes 2GB -BootDevice VHD -NewVHDPath .\VMs\WindowsAutopilot.vhdx -Path .\VMData -NewVHDSizeBytes 80GB -Generation 2 -Switch AutopilotExternal
Add-VMDvdDrive -Path c:\iso\win10-eval.iso -VMName WindowsAutopilot
Start-VM -VMName WindowsAutopilot

After entering these commands, connect to the VM that you just created and wait for a prompt to press a key and boot from the DVD. You can connect to the VM by double-clicking it in Hyper-V Manager.

See the sample output below. In this sample, the VM is created under the c:\autopilot directory and the vmconnect.exe command is used (which is only available on Windows Server). If you installed Hyper-V on Windows 10, use Hyper-V Manager to connect to your VM.

PS C:\autopilot> dir c:\iso


    Directory: C:\iso


Mode                LastWriteTime         Length Name
----                -------------         ------ ----
-a----        3/12/2019   2:46 PM     4627343360 win10-eval.iso

PS C:\autopilot> (Get-NetAdapter |?{$.Status -eq "Up" -and !$.Virtual}).Name
Ethernet
PS C:\autopilot> New-VMSwitch -Name AutopilotExternal -AllowManagementOS $true -NetAdapterName (Get-NetAdapter |?{$.Status -eq "Up" -and !$.Virtual}).Name

Name              SwitchType NetAdapterInterfaceDescription
----              ---------- ------------------------------
AutopilotExternal External   Intel(R) Ethernet Connection (2) I218-LM

PS C:\autopilot> New-VM -Name WindowsAutopilot -MemoryStartupBytes 2GB -BootDevice VHD -NewVHDPath .\VMs\WindowsAutopilot.vhdx -Path .\VMData -NewVHDSizeBytes 80GB -Generation 2 -Switch AutopilotExternal

Name             State CPUUsage(%) MemoryAssigned(M) Uptime   Status             Version
----             ----- ----------- ----------------- ------   ------             -------
WindowsAutopilot Off   0           0                 00:00:00 Operating normally 8.0

PS C:\autopilot> Add-VMDvdDrive -Path c:\iso\win10-eval.iso -VMName WindowsAutopilot
PS C:\autopilot> Start-VM -VMName WindowsAutopilot
PS C:\autopilot> vmconnect.exe localhost WindowsAutopilot
PS C:\autopilot> dir

    Directory: C:\autopilot

Mode                LastWriteTime         Length Name
----                -------------         ------ ----
d-----        3/12/2019   3:15 PM                VMData
d-----        3/12/2019   3:42 PM                VMs

PS C:\autopilot>

Install Windows 10

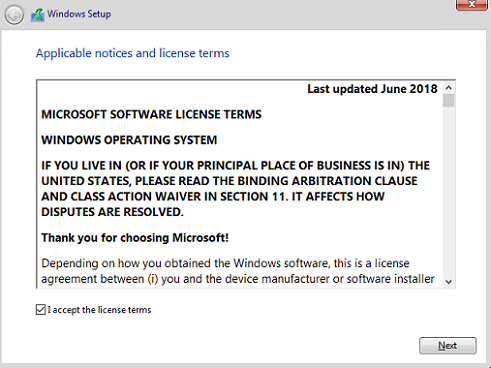

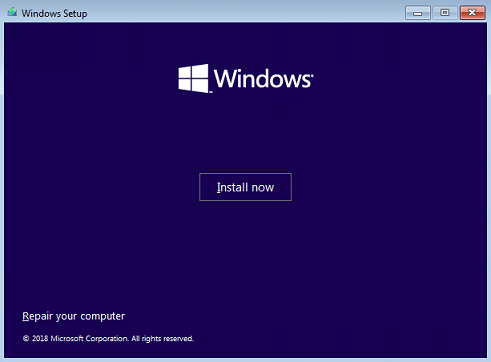

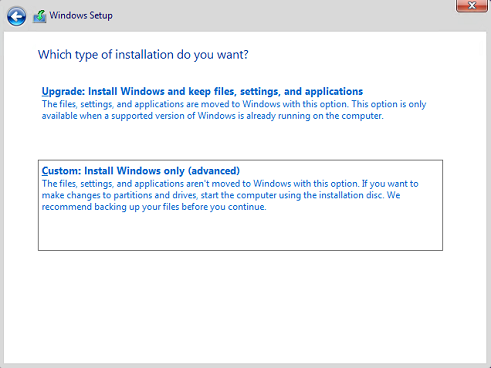

Ensure the VM booted from the installation ISO, click Next then click Install now and complete the Windows installation process. See the following examples:

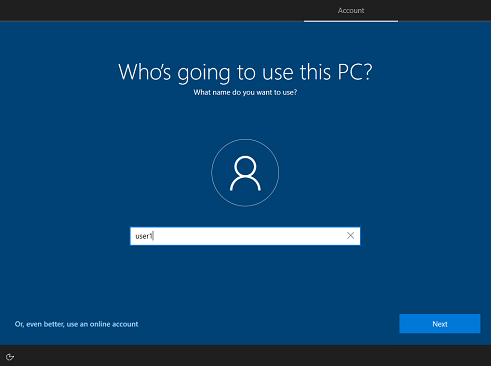

After the VM restarts, during OOBE, it's fine to select Set up for personal use or Domain join instead and then choose an offline account on the Sign in screen. This will offer the fastest way to the desktop. For example:

Once the installation is complete, sign in and verify that you are at the Windows 10 desktop, then create your first Hyper-V checkpoint. Checkpoints are used to restore the VM to a previous state.

To create a checkpoint, open an elevated Windows PowerShell prompt on the computer running Hyper-V (not on the VM) and run the following:

Checkpoint-VM -Name WindowsAutopilot -SnapshotName "Finished Windows install"

Click on the WindowsAutopilot VM in Hyper-V Manager and verify that you see Finished Windows Install listed in the Checkpoints pane.

Capture the hardware ID

Follow these steps to run the PowerShell script:

On the client VM: Open an elevated Windows PowerShell prompt and run the following commands. These commands are the same regardless of whether you are using a VM or a physical device:

md c:\HWID
Set-Location c:\HWID
Set-ExecutionPolicy -Scope Process -ExecutionPolicy Unrestricted -Force
Install-Script -Name Get-WindowsAutopilotInfo -Force
$env:Path += ";C:\Program Files\WindowsPowerShell\Scripts"
Get-WindowsAutopilotInfo.ps1 -OutputFile AutopilotHWID.csv

When you are prompted to install the NuGet package, choose Yes.

See the sample output below. A dir command is issued at the end to show the file that was created.

PS C:\> md c:\HWID

     Directory: C:\


Mode                 LastWriteTime         Length Name
----                 -------------         ------ ----
d-----        11/13/2020   3:00 PM                HWID


PS C:\Windows\system32> Set-Location c:\HWID
PS C:\HWID> Set-ExecutionPolicy -Scope Process -ExecutionPolicy Unrestricted -Force
PS C:\HWID> Install-Script -Name Get-WindowsAutopilotInfo -Force

NuGet provider is required to continue
PowerShellGet requires NuGet provider version '2.8.5.201' or newer to interact with NuGet-based repositories. The NuGet
 provider must be available in 'C:\Program Files\PackageManagement\ProviderAssemblies' or
'C:\Users\user1\AppData\Local\PackageManagement\ProviderAssemblies'. You can also install the NuGet provider by running
 'Install-PackageProvider -Name NuGet -MinimumVersion 2.8.5.201 -Force'. Do you want PowerShellGet to install and
import the NuGet provider now?
[Y] Yes  [N] No  [S] Suspend  [?] Help (default is "Y"): Y
PS C:\HWID> $env:Path += ";C:\Program Files\WindowsPowerShell\Scripts"
PS C:\HWID> Get-WindowsAutopilotInfo.ps1 -OutputFile AutopilotHWID.csv
Gathered details for device with serial number: 1804-7078-6805-7405-0796-0675-17
PS C:\HWID> dir


    Directory: C:\HWID


Mode                 LastWriteTime         Length Name
----                 -------------         ------ ----
-a----        11/13/2020   3:01 PM           8184 AutopilotHWID.csv


PS C:\HWID>

Verify that there is an AutopilotHWID.csv file in the c:\HWID directory that is about 8 KB in size. This file contains the complete 4K HH.

Note

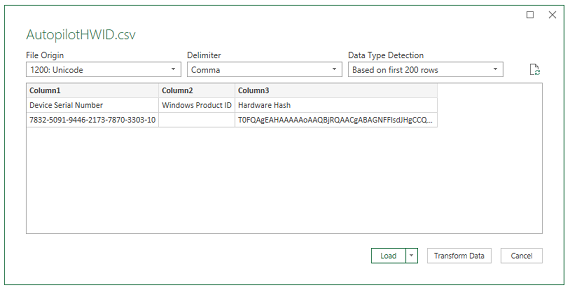

Although the .csv extension might be associated with Microsoft Excel, you cannot view the file properly by double-clicking it. To correctly parse the comma delimiters and view the file in Excel, you must use the Data > From Text/CSV function in Excel to import the appropriate data columns. You don't need to view the file in Excel unless you are curious. The file format will be validated when it is imported into Autopilot. An example of the data in this file is shown below.

You will need to upload this data into Intune to register your device for Autopilot, so the next step is to transfer this file to the computer you will use to access the Azure portal. If you are using a physical device instead of a VM, you can copy the file to a USB stick. If you’re using a VM, you can right-click the AutopilotHWID.csv file and copy it, then right-click and paste the file to your desktop (outside the VM).

If you have trouble copying and pasting the file, just view the contents in Notepad on the VM and copy the text into Notepad outside the VM. Do not use another text editor to do this.

Note

When copying and pasting to or from VMs, avoid clicking other things with your mouse cursor between the copy and paste process as this can empty or overwrite the clipboard and require that you start over. Go directly from copy to paste.

Reset the VM back to Out-Of-Box-Experience (OOBE)

With the hardware ID captured in a file, prepare your Virtual Machine for Windows Autopilot deployment by resetting it back to OOBE.

On the Virtual Machine, go to Settings > Update & Security > Recovery and click on Get started under Reset this PC. Select Remove everything and Just remove my files. If you are asked How would you like to reinstall Windows, select Local reinstall. Finally, click on Reset.

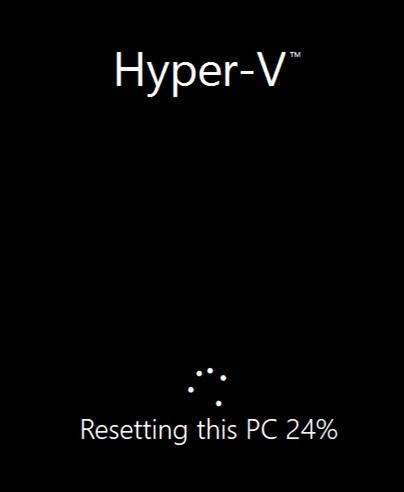

Resetting the VM or device can take a while. Proceed to the next step (verify subscription level) during the reset process.

Verify subscription level

For this lab, you need an AAD Premium subscription. You can tell if you have a Premium subscription by navigating to the MDM enrollment configuration blade. See the following example:

Azure Active Directory > Mobility (MDM and MAM) > Microsoft Intune

If the configuration blade shown above does not appear, it's likely that you don't have a Premium subscription. Auto-enrollment is a feature only available in AAD Premium.

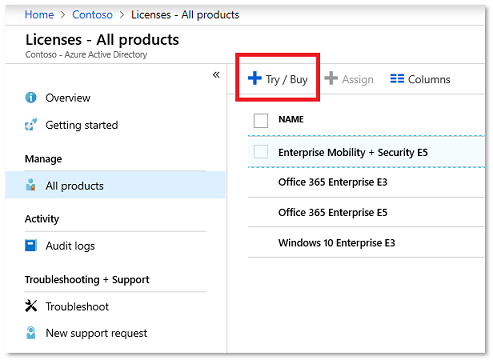

To convert your Intune trial account to a free Premium trial account, navigate to Azure Active Directory > Licenses > All products > Try / Buy and select Free trial for Azure AD Premium, or EMS E5.

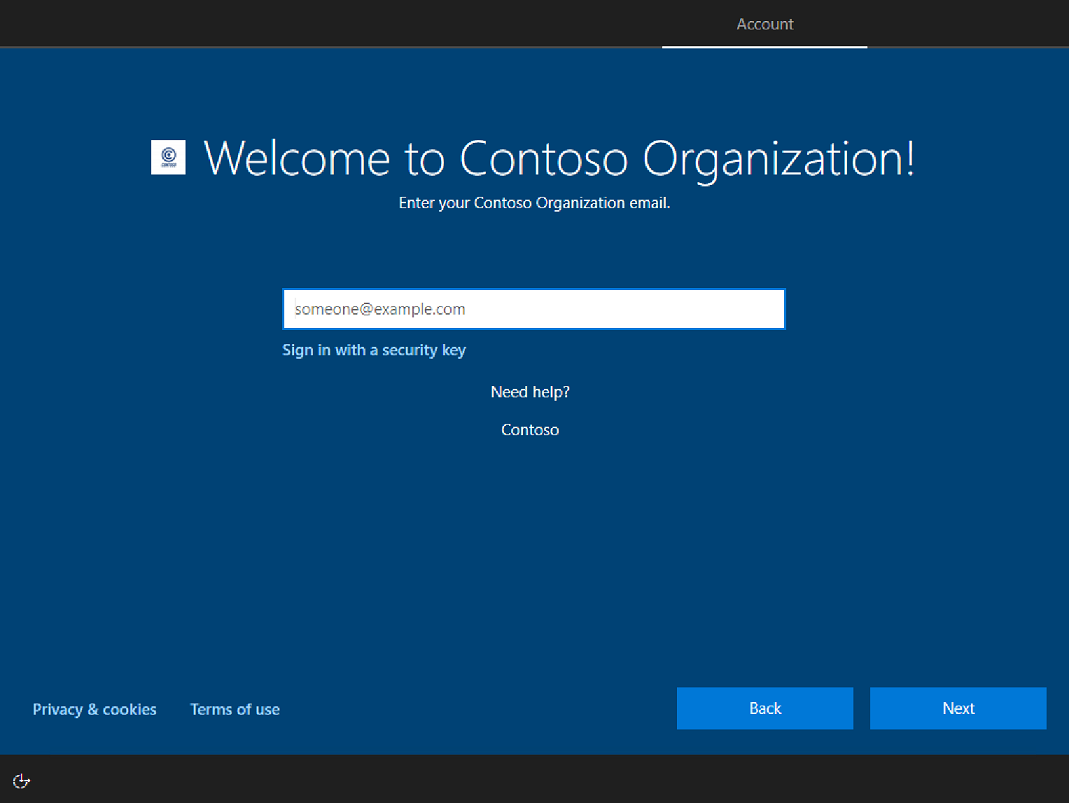

Configure company branding

If you already have company branding configured in Azure Active Directory, you can skip this step.

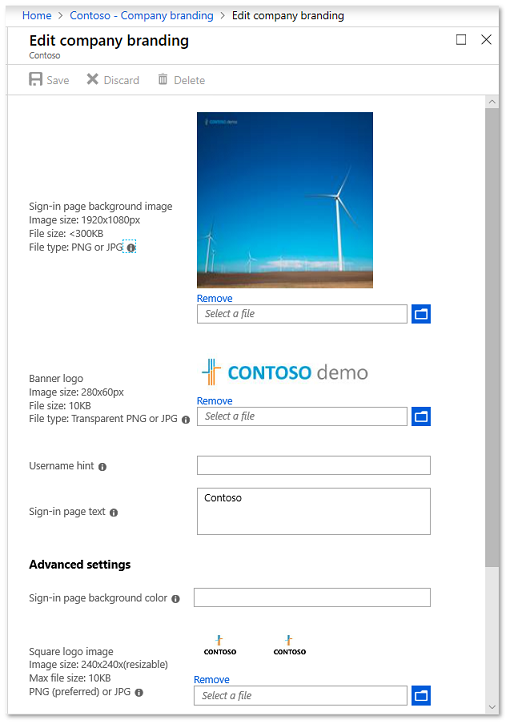

Navigate to Company branding in Azure Active Directory, click on Configure and configure any type of company branding you'd like to see during the OOBE.

When you are finished, click Save.

Configure Microsoft Intune auto-enrollment

If you already have MDM auto-enrollment configured in Azure Active Directory, you can skip this step.

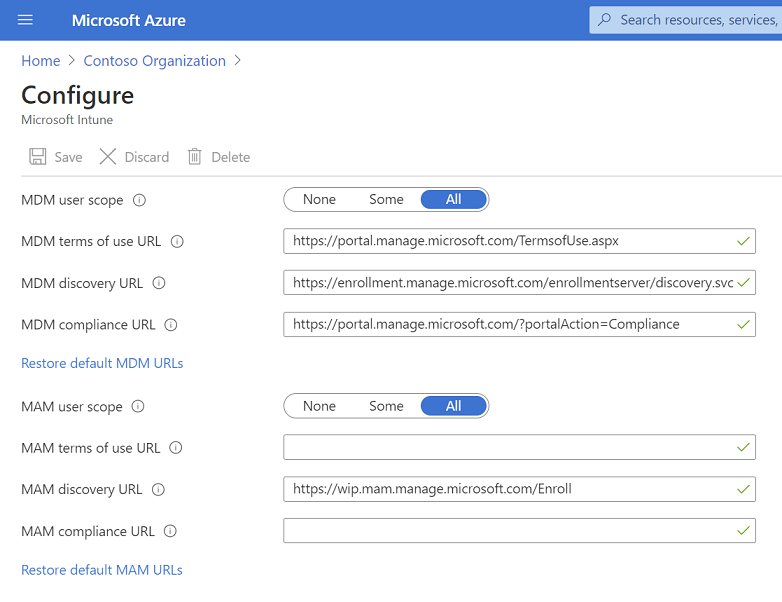

Open Mobility (MDM and MAM) in Azure Active Directory and select Microsoft Intune. If you do not see Microsoft Intune, click Add application and choose Intune.

For the purposes of this demo, select All under the MDM user scope and click Save.

Register your VM

Your VM (or device) can be registered either via Intune or Microsoft Store for Business (MSfB). Both processes are shown here, but only pick one for purposes of this lab. We highly recommend using Intune rather than MSfB.

Autopilot registration using Intune

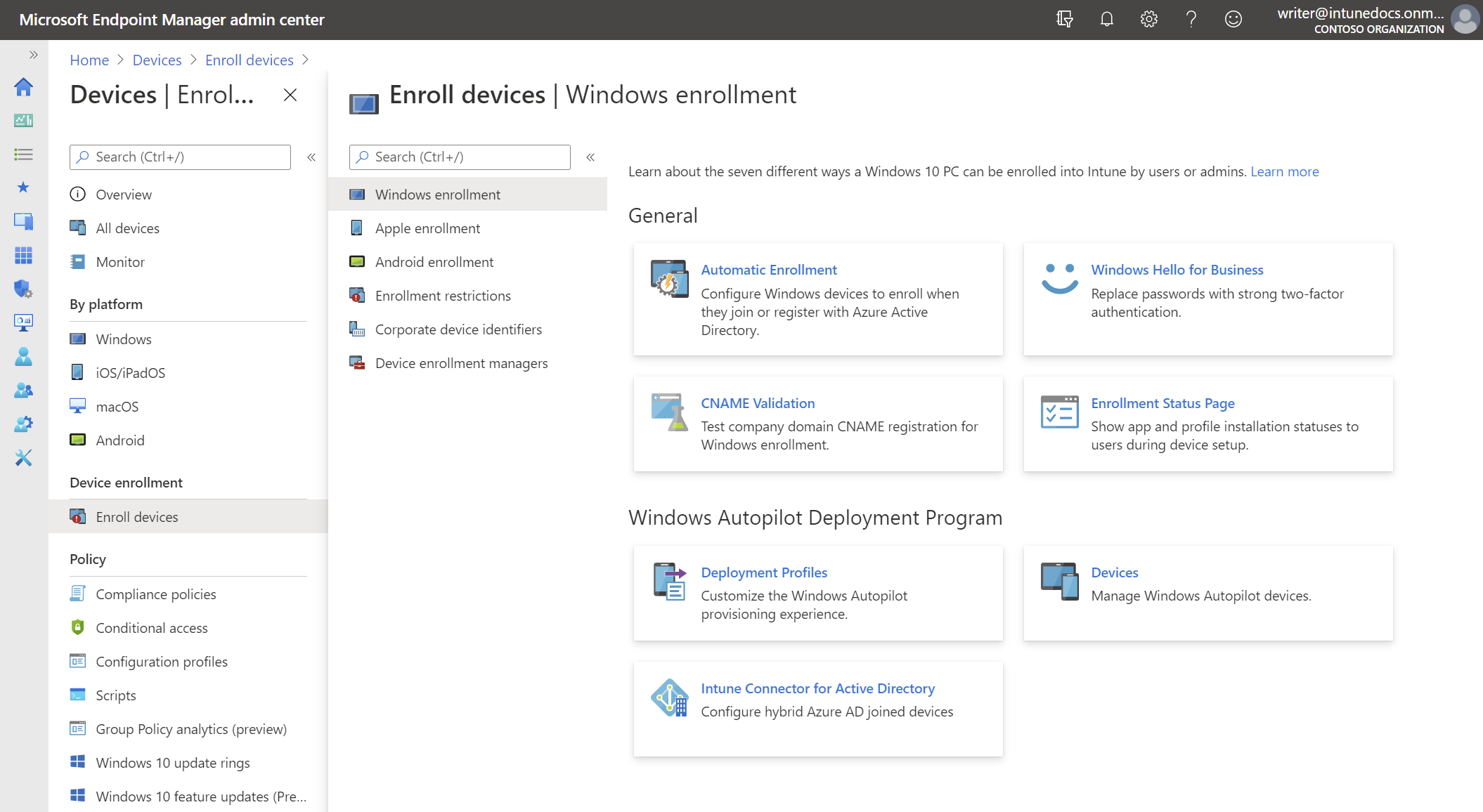

In the Microsoft Endpoint Manager admin center, choose Devices > Device enrollment | Enroll devices > Windows enrollment > Windows Autopilot Deployment Program | Devices and then on the Windows Autopilot devices page, choose Import.

Note

If menu items like Windows enrollment are not active for you, then look to the far-right blade in the UI. You might need to provide Intune configuration privileges in a challenge window that appeared.

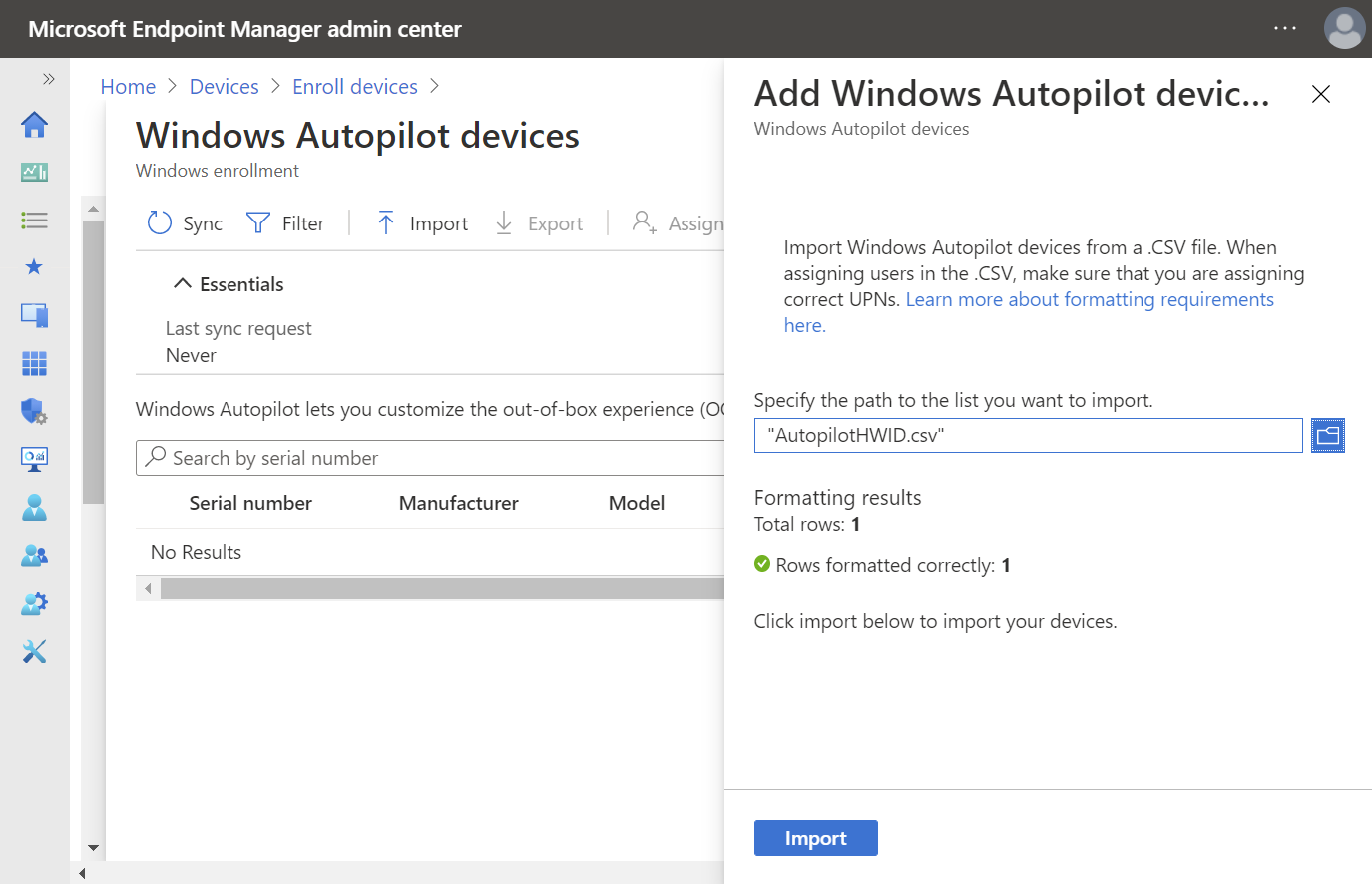

Under Add Windows Autopilot devices in the far right pane, browse to the AutopilotHWID.csv file you previously copied to your local computer. The file should contain the serial number and 4K HH of your VM (or device). It's okay if other fields (Windows Product ID) are left blank.

You should receive confirmation that the file is formatted correctly before uploading it, as shown above.
Click Import and wait until the import process completes. This can take up to 15 minutes.

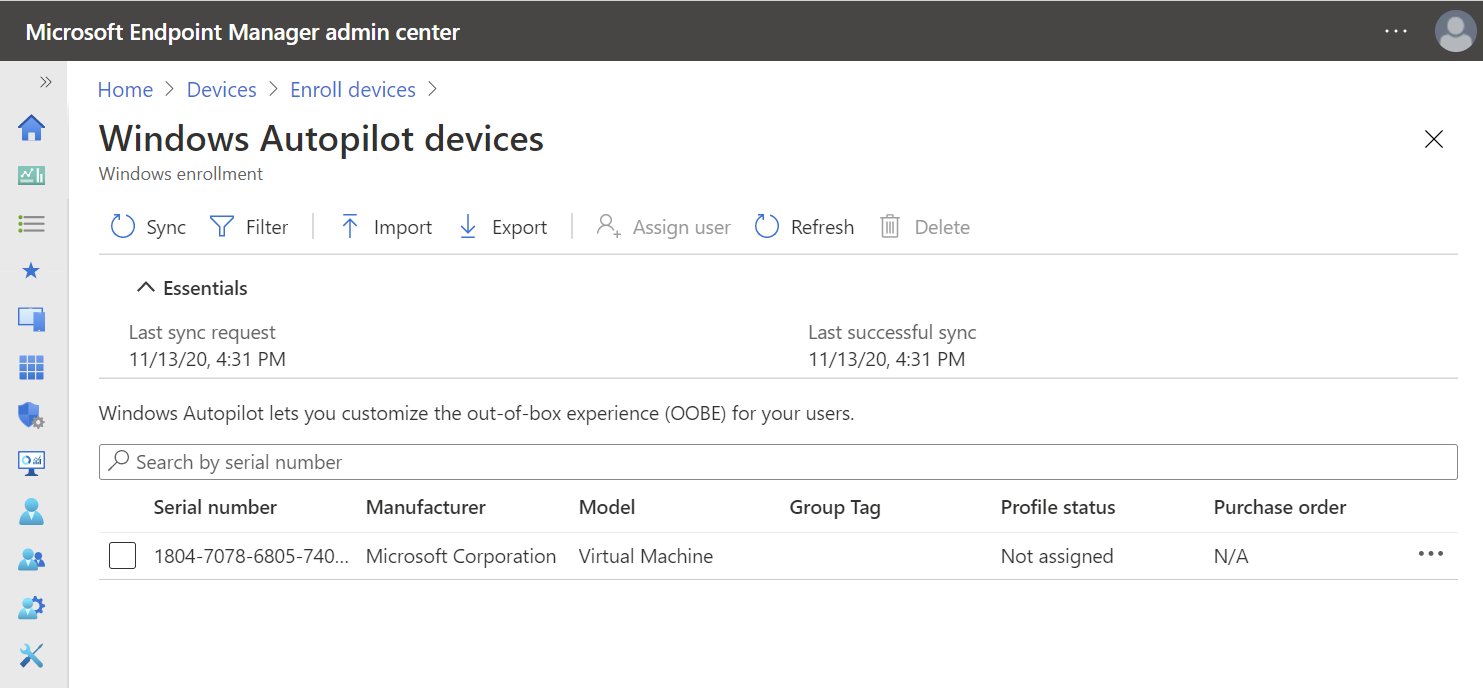

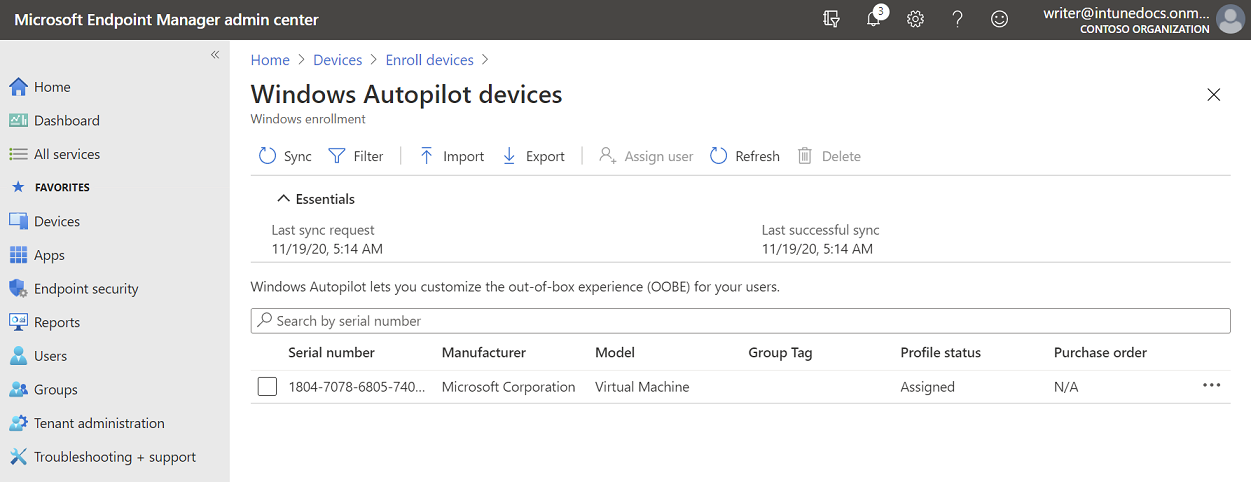

Click Refresh to verify your VM or device has been added. See the following example.

Autopilot registration using MSfB

Optional: see the following video for an overview of the process.

First, you need a MSfB account. You can use the same one you created above for Intune, or follow these instructions to create a new one.

Next, sign in to Microsoft Store for Business using your test account by clicking Sign in on the upper-right-corner of the main page.

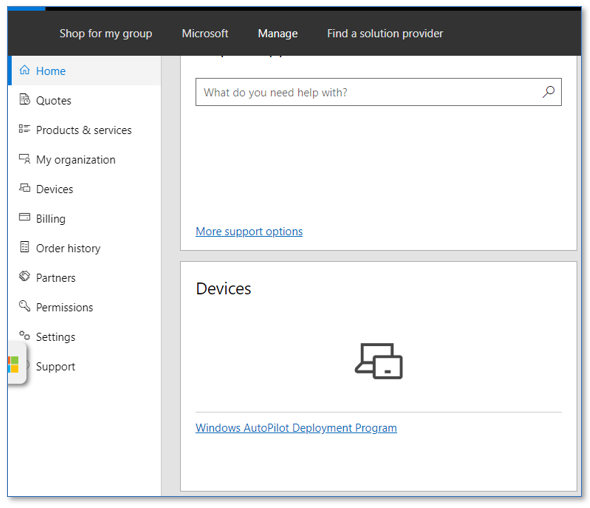

Select Manage from the top menu, then click the Windows Autopilot Deployment Program link under the Devices card. See the following example:

Click the Add devices link to upload your CSV file. A message will appear indicating your request is being processed. Wait a few moments before refreshing to see your new device has been added.

Create and assign a Windows Autopilot deployment profile

Pick one:

Create profiles using Intune
Create profiles using MSfB

Create a Windows Autopilot deployment profile using Intune

Create a device group

The Autopilot deployment profile wizard will ask for a device group, so we must create one first. To create a device group:

In the Microsoft Endpoint Manager admin center, choose Groups > New group.
In the Group blade:
1. For Group type, choose Security.
2. Type a Group name and Group description (ex: Autopilot Lab).
3. Azure AD roles can be assigned to the group: No
4. For Membership type, choose Assigned.

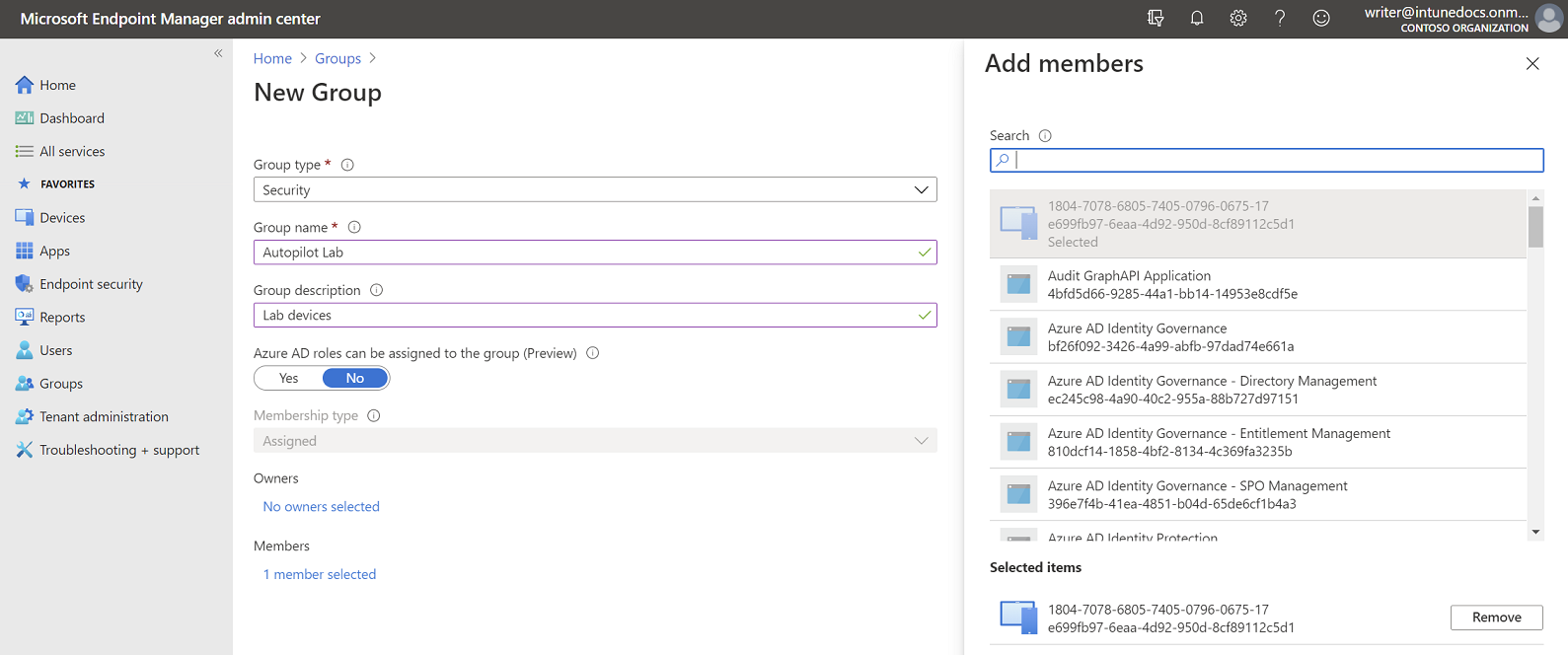

Click Members and add the Autopilot VM to the group. See the following example:

[!div class="mx-imgBorder"]
Click Create.

Create the deployment profile

To create a Windows Autopilot profile, scroll back to the left hand pane and click Devices, then under Enroll devices | Windows enrollment select Deployment Profiles.

Click on Create profile and then select Windows PC.

On the Create profile blade, use the following values:

Setting	Value
Name	Autopilot Lab profile
Description	Lab
Convert all targeted devices to Autopilot	No

Click Next to continue with the Out-of-box experience (OOBE) settings:

Setting	Value
Deployment mode	User-driven
Join to Azure AD as	Azure AD joined
Microsoft Software License Terms	Hide
Privacy Settings	Hide
Hide change account options	Hide
User account type	Standard
Allow White Glove OOBE	No
Language (Region)	Operating system default
Automatically configure keyboard	Yes
Apply device name template	No

Click Next to continue with the Assignments settings:

Setting	Value
Assign to	Selected groups

Click Select groups to include.
Click the Autopilot Lab group, and then click Select.

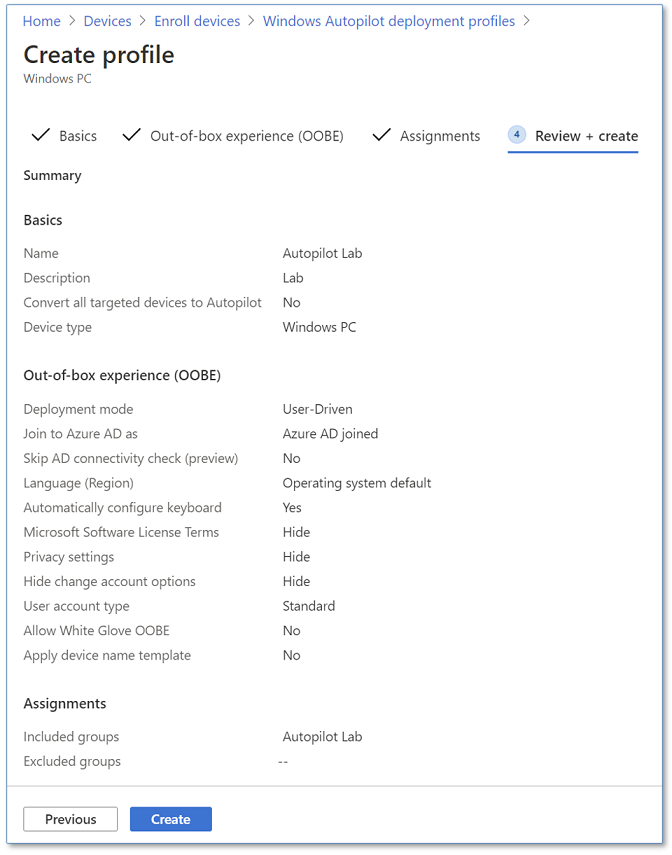

Click Next to continue and then click Create. See the following example:

Click on OK and then click on Create.

Create a Windows Autopilot deployment profile using MSfB

If you have already created and assigned a profile via Intune by using the steps immediately above, then skip this section.

A video is available that covers the steps required to create and assign profiles in MSfB. These steps are also summarized below.

First, sign in to the Microsoft Store for Business using the Intune account you initially created for this lab.

Click Manage from the top menu, then click Devices from the left navigation tree.

Click the Windows Autopilot Deployment Program link in the Devices tile.

To CREATE the profile:

Select your device from the Devices list:

On the Autopilot deployment dropdown menu, select Create new profile:

Name the profile, choose your desired settings, and then click Create:

The new profile is added to the Autopilot deployment list.

To ASSIGN the profile:

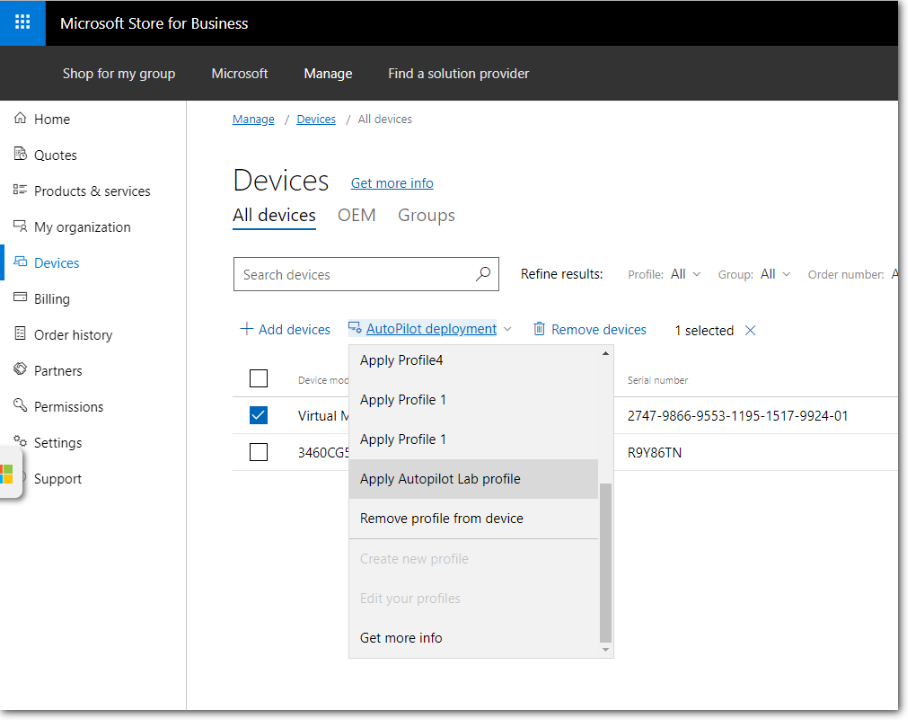

To assign (or reassign) the profile to a device, select the checkboxes next to the device you registered for this lab, then select the profile you want to assign from the Autopilot deployment dropdown menu as shown:

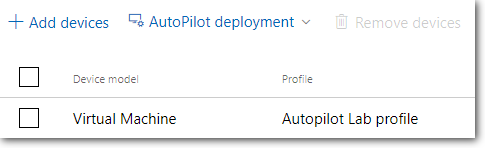

Confirm the profile was successfully assigned to the intended device by checking the contents of the Profile column:

See Windows Autopilot in action

If you shut down your VM after the last reset, it's time to start it back up again, so it can progress through the Autopilot OOBE experience but do not attempt to start your device again until the PROFILE STATUS for your device in Intune has changed from Not assigned to Assigning and finally Assigned:

Also, make sure to wait at least 30 minutes from the time you've configured company branding, otherwise these changes might not show up.

Ensure your device has an internet connection.
Turn on the device
Verify that the appropriate OOBE screens (with appropriate Company Branding) appear. You should see the region selection screen, the keyboard selection screen, and the second keyboard selection screen (which you can skip).

Soon after reaching the desktop, the device should show up in Intune as an enabled Autopilot device. Go into the Intune Azure portal, and select Devices > All devices, then Refresh the data to verify that your device has changed from disabled to enabled, and the name of the device is updated.

Once you select a language and a keyboard layout, your company branded sign-in screen should appear. Provide your Azure Active Directory credentials and you're all done.

Windows Autopilot will now take over to automatically join your device into Azure Active Directory and enroll it to Microsoft Intune. Use the checkpoint you've created to go through this process again with different settings.

Remove devices from Autopilot

To use the device (or VM) for other purposes after completion of this lab, you will need to remove (deregister) it from Autopilot via either Intune or MSfB, and then reset it. Instructions for deregistering devices can be found at Enroll Windows devices in Intune by using Windows Autopilot and Remove devices by using wipe, retire, or manually unenrolling the device and below.

Delete (deregister) Autopilot device

You need to delete (or retire, or factory reset) the device from Intune before deregistering the device from Autopilot. To delete the device from Intune (not Azure Active Directory), log into the MEM admin center, then navigate to Intune > Devices > All Devices. Select the device you want to delete, then click the Delete button along the top menu.

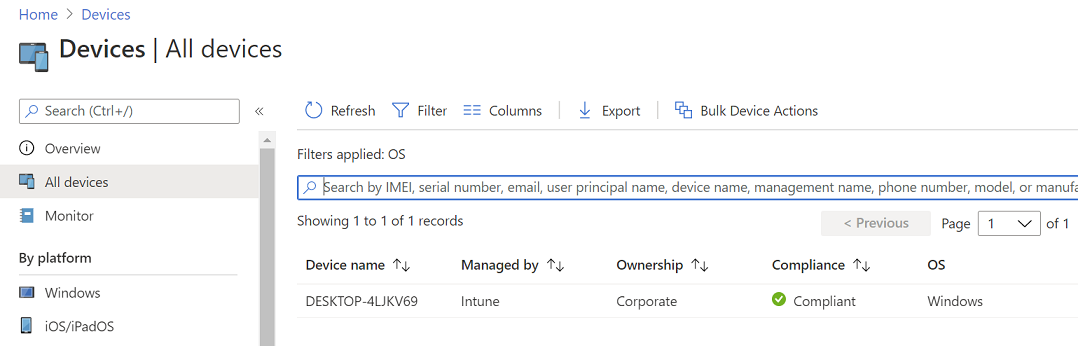

This will remove the device from Intune management, and it will disappear from Intune > Devices > All devices. But this does not yet deregister the device from Autopilot, so the device should still appear under Intune > Device Enrollment > Windows Enrollment > Windows Autopilot Deployment Program > Devices.

The Intune > Devices > All Devices list and the Intune > Device Enrollment > Windows Enrollment > Windows Autopilot Deployment Program > Devices list mean different things and are two completely separate datastores. The former (All devices) is the list of devices currently enrolled into Intune.

To remove the device from the Autopilot program, select the device and click Delete. You will get a popup dialog box to confirm deletion.

At this point, your device has been unenrolled from Intune and also deregistered from Autopilot. After several minutes, click the Sync button, followed by the Refresh button to confirm the device is no longer listed in the Autopilot program:

Once the device no longer appears, you are free to reuse it for other purposes.

If you also (optionally) want to remove your device from AAD, navigate to Azure Active Directory > Devices > All Devices, select your device, and click the delete button:

Appendix A: Verify support for Hyper-V

Starting with Windows 8, the host computer's microprocessor must support second level address translation (SLAT) to install Hyper-V. See Hyper-V: List of SLAT-Capable CPUs for Hosts for more information.

To verify your computer supports SLAT, open an administrator command prompt, type systeminfo, press ENTER, scroll down, and review the section displayed at the bottom of the output, next to Hyper-V Requirements. See the following example:

C:>systeminfo

...
Hyper-V Requirements:      VM Monitor Mode Extensions: Yes
                           Virtualization Enabled In Firmware: Yes
                           Second Level Address Translation: Yes
                           Data Execution Prevention Available: Yes

In this example, the computer supports SLAT and Hyper-V.

You can also identify Hyper-V support using tools provided by the processor manufacturer, the msinfo32 tool, or you can download the Coreinfo utility and run it, as shown in the following example:

C:>coreinfo -v

Coreinfo v3.31 - Dump information on system CPU and memory topology
Copyright (C) 2008-2014 Mark Russinovich
Sysinternals - www.sysinternals.com

Intel(R) Core(TM) i7-2600 CPU @ 3.40GHz
Intel64 Family 6 Model 42 Stepping 7, GenuineIntel
Microcode signature: 0000001B
HYPERVISOR      -       Hypervisor is present
VMX             *       Supports Intel hardware-assisted virtualization
EPT             *       Supports Intel extended page tables (SLAT)

Appendix B: Adding apps to your profile

Add a Win32 app

Prepare the app for Intune

Before we can pull an application into Intune to make it part of our AP profile, we need to "package" the application for delivery using the IntuneWinAppUtil.exe command-line tool. After downloading the tool, gather the following three bits of information to use the tool:

The source folder for your application
The name of the setup executable file
The output folder for the new file

For the purposes of this lab, we'll use the Notepad++ tool as our Win32 app.

Download the Notepad++ msi package here and then copy the file to a known location, such as C:\Notepad++msi.

Run the IntuneWinAppUtil tool, supplying answers to the three questions, for example:

After the tool finishes running, you should have an .intunewin file in the Output folder, which you can now upload into Intune using the following steps.

Create app in Intune

Log into the Azure portal and select Intune.

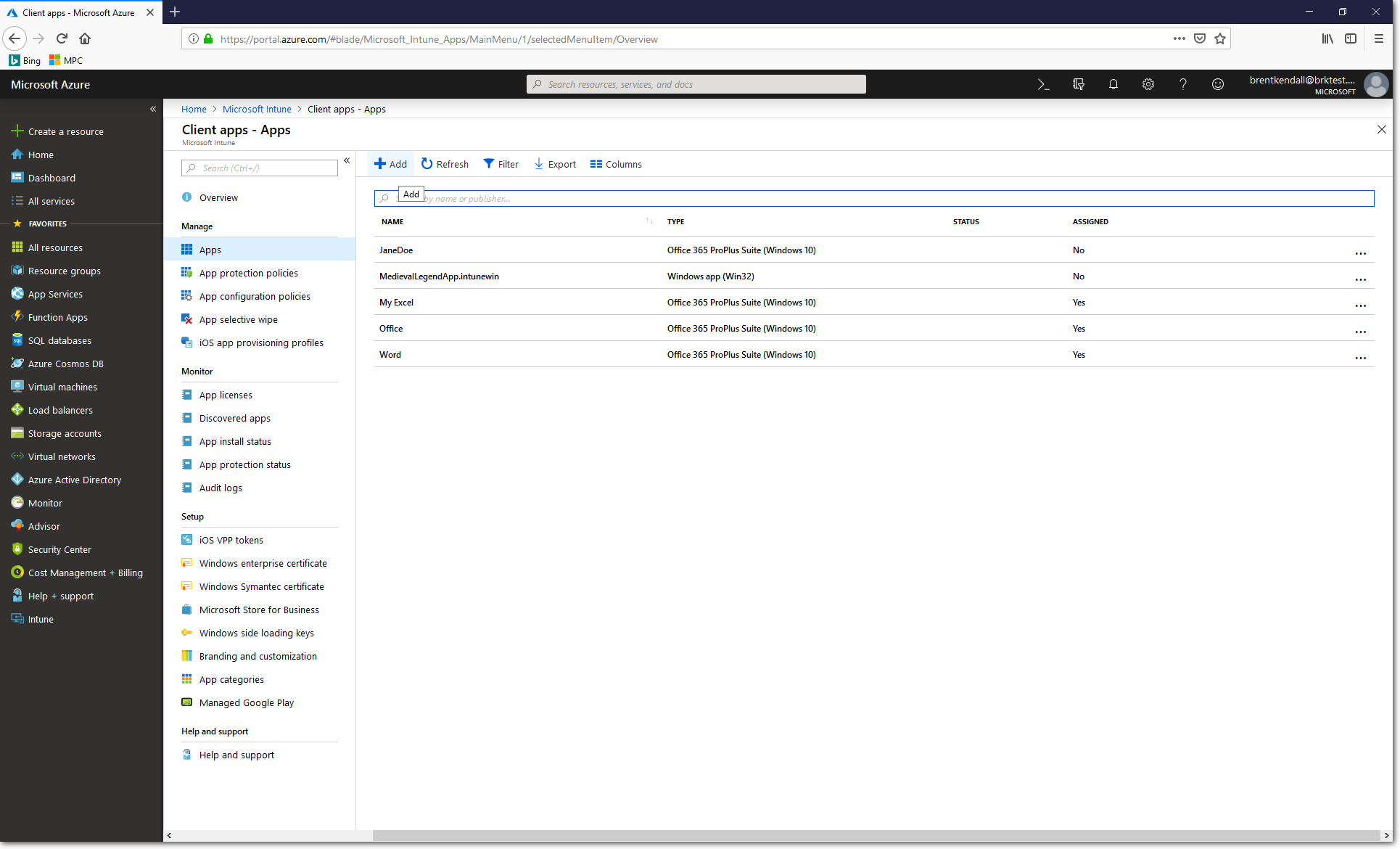

Navigate to Intune > Clients apps > Apps, and then click the Add button to create a new app package.

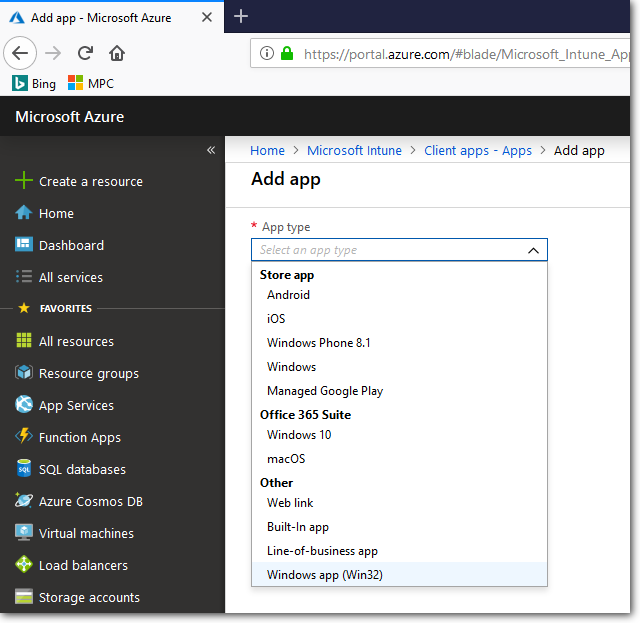

Under App Type, select Windows app (Win32):

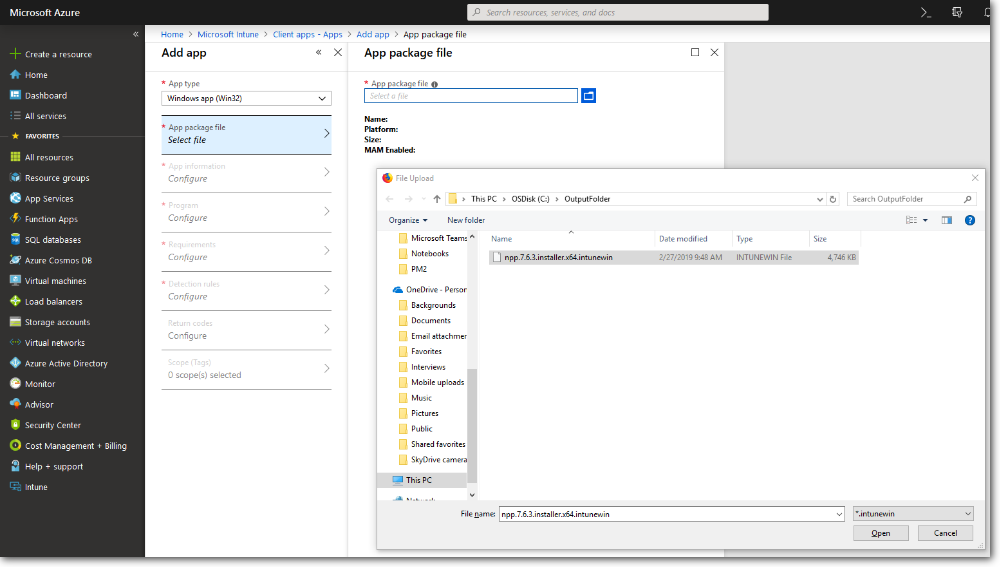

On the App package file blade, browse to the npp.7.6.3.installer.x64.intunewin file in your output folder, open it, then click OK:

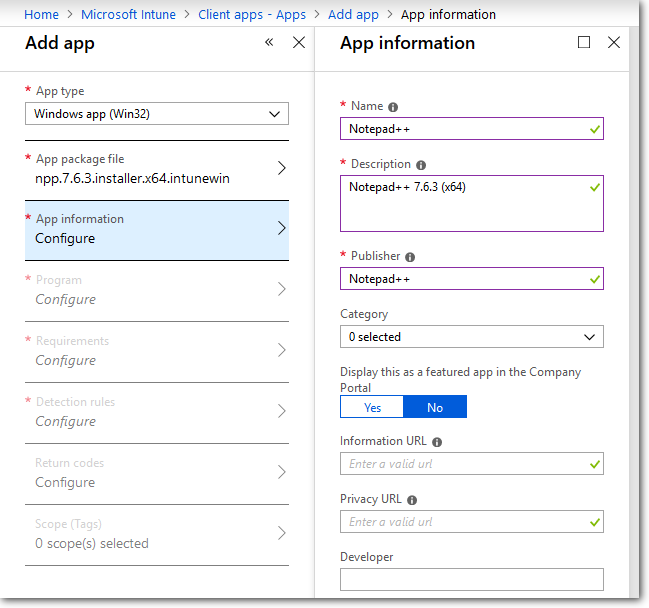

On the App Information Configure blade, provide a friendly name, description, and publisher, such as:

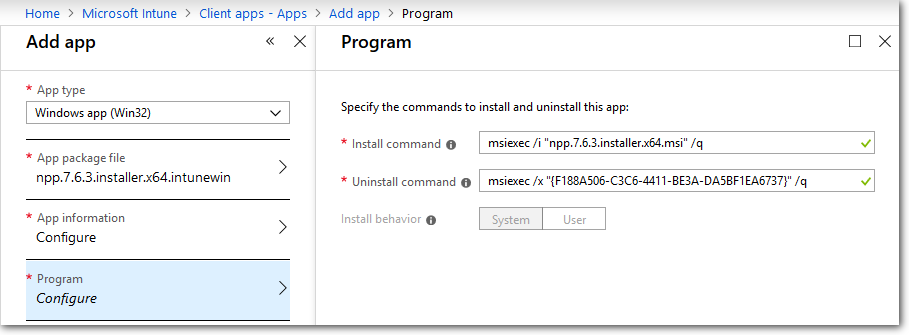

On the Program Configuration blade, supply the install and uninstall commands:

Install:  msiexec /i "npp.7.6.3.installer.x64.msi" /q
Uninstall:  msiexec /x "{F188A506-C3C6-4411-BE3A-DA5BF1EA6737}" /q

Simply using an install command like "notepad++.exe /S" will not actually install Notepad++; it will only launch the app. To actually install the program, we need to use the .msi file instead. Notepad++ doesn't actually have an .msi version of their program, but we got an .msi version from a third party provider.

Click OK to save your input and activate the Requirements blade.

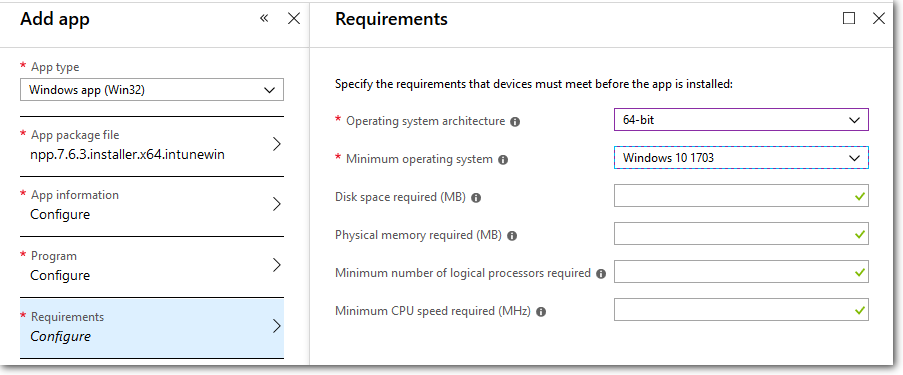

On the Requirements Configuration blade, specify the OS architecture and the Minimum OS version:

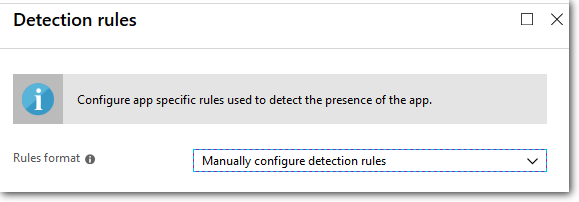

Next, configure the Detection rules. For our purposes, we will select manual format:

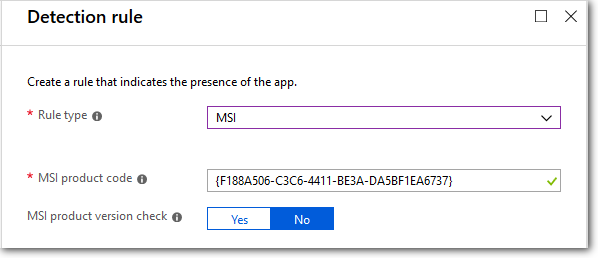

Click Add to define the rule properties. For Rule type, select MSI, which will automatically import the right MSI product code into the rule:

Click OK twice to save, as you back out to the main Add app blade again for the final configuration.

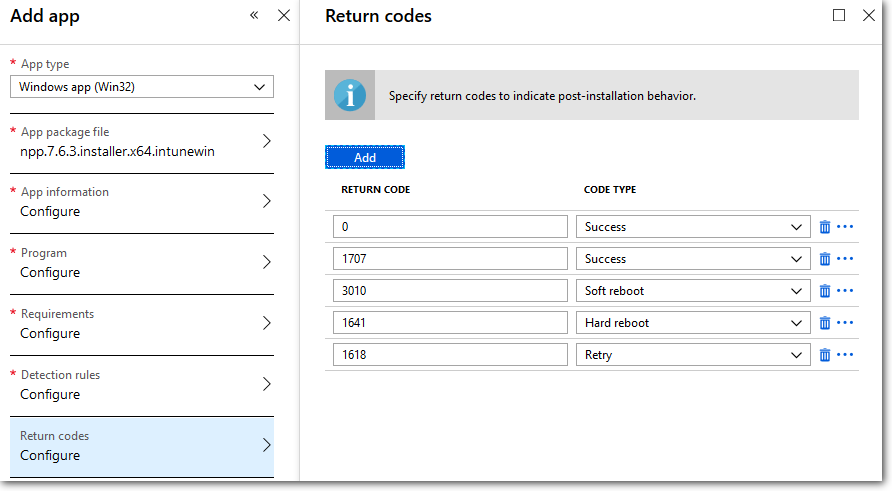

Return codes: For our purposes, leave the return codes at their default values:

Click OK to exit.

You may skip configuring the final Scope (Tags) blade.

Click the Add button to finalize and save your app package.

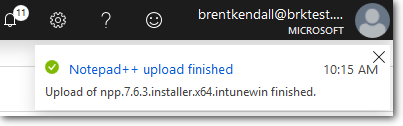

Once the indicator message says the addition has completed.

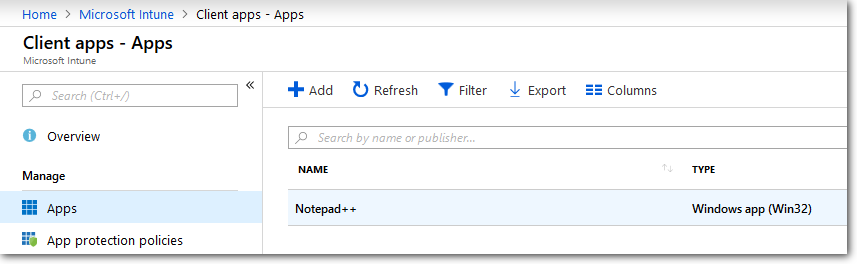

You will be able to find your app in your app list:

Assign the app to your Intune profile

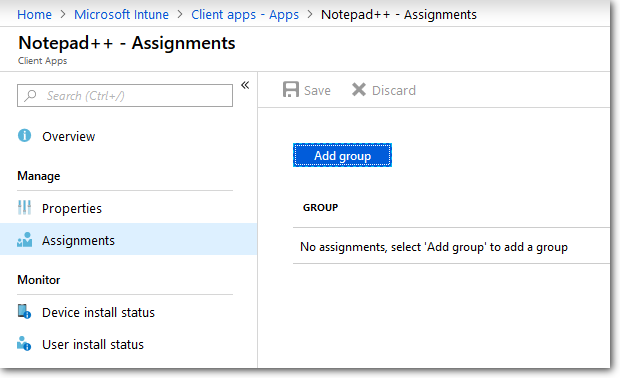

In the Intune > Client Apps > Apps pane, select the app package you already created to reveal its properties blade. Then click Assignments from the menu:

Select Add Group to open the Add group pane that is related to the app.

For our purposes, select Required from the Assignment type dropdown menu.

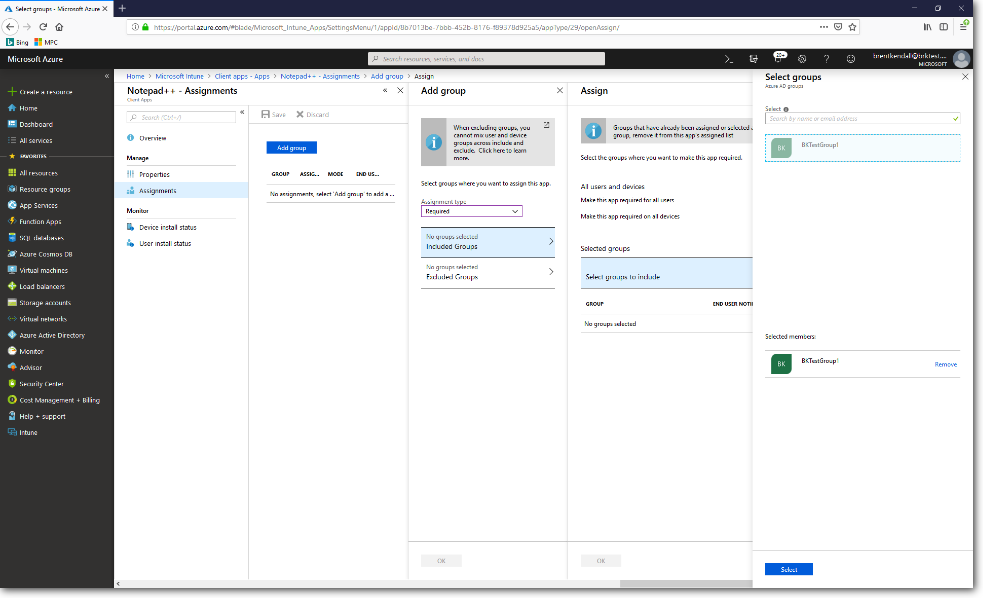

Select Included Groups and assign the groups you previously created that will use this app:

In the Select groups pane, click the Select button.

In the Assign group pane, select OK.

In the Add group pane, select OK.

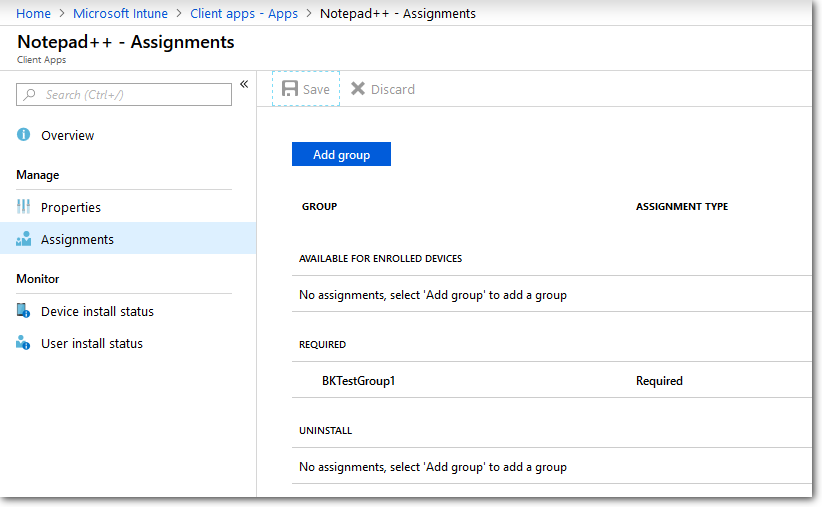

In the app Assignments pane, select Save.

At this point, you have completed steps to add a Win32 app to Intune.

For more information on adding apps to Intune, see Intune Standalone - Win32 app management.

Add Office 365

Create app in Intune

Log into the Azure portal and select Intune.

Navigate to Intune > Clients apps > Apps, and then click the Add button to create a new app package.

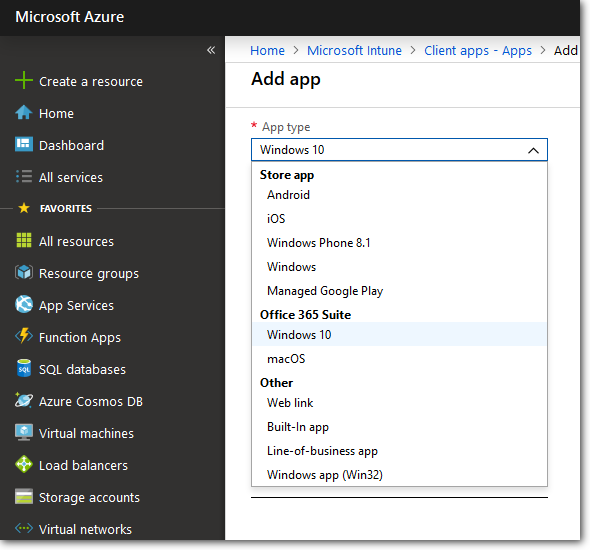

Under App Type, select Office 365 Suite > Windows 10:

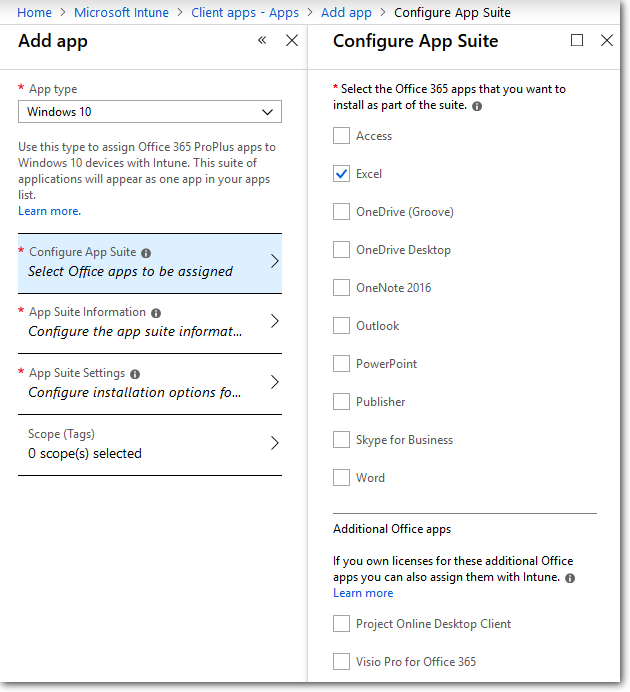

Under the Configure App Suite pane, select the Office apps you want to install. For the purposes of this labe we have only selected Excel:

Click OK.

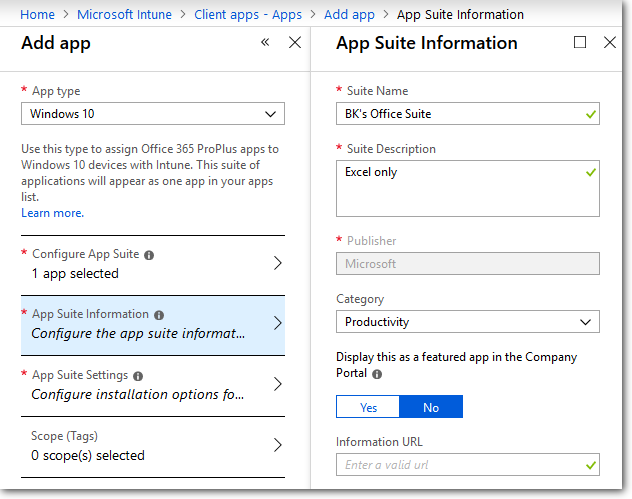

In the App Suite Information pane, enter a unique suite name, and a suitable description.

Enter the name of the app suite as it is displayed in the company portal. Make sure that all suite names that you use are unique. If the same app suite name exists twice, only one of the apps is displayed to users in the company portal.

Click OK.

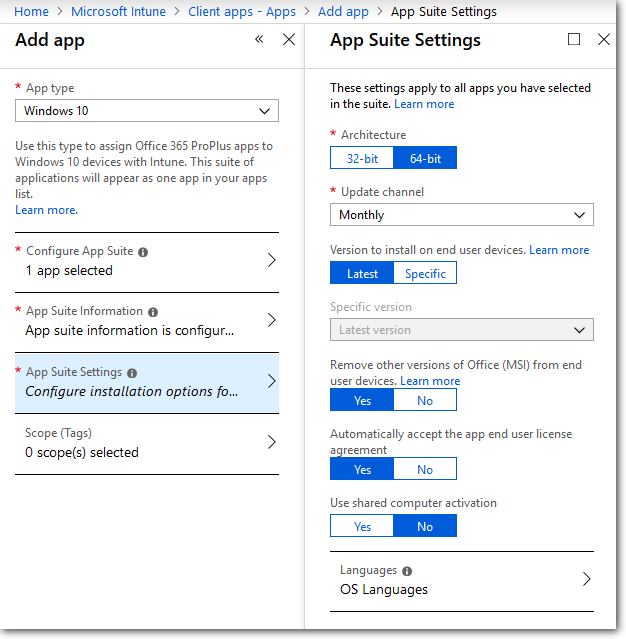

In the App Suite Settings pane, select Monthly for the Update channel (any selection would be fine for the purposes of this lab). Also select Yes for Automatically accept the app end user license agreement:

Click OK and then click Add.

Assign the app to your Intune profile

In the Intune > Client Apps > Apps pane, select the Office package you already created to reveal its properties blade. Then click Assignments from the menu:

Select Add Group to open the Add group pane that is related to the app.

For our purposes, select Required from the Assignment type dropdown menu.

Available for enrolled devices means users install the app from the Company Portal app or Company Portal website.

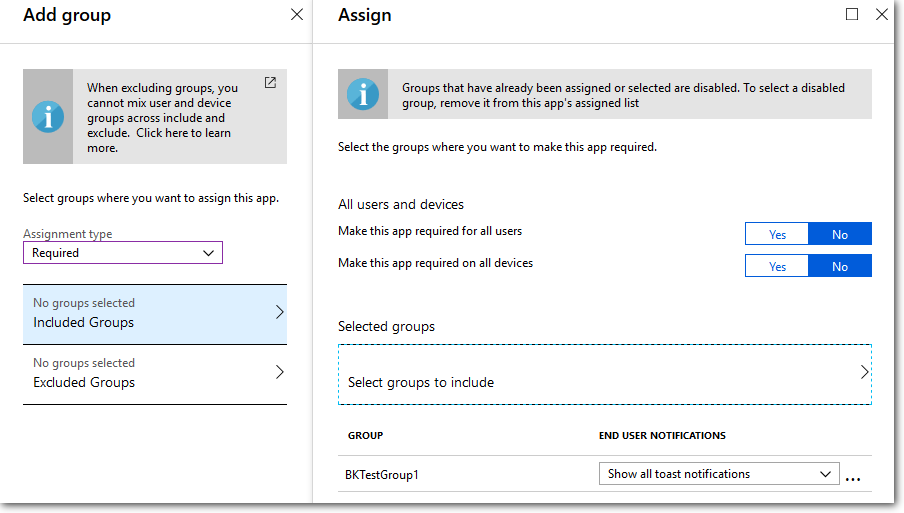

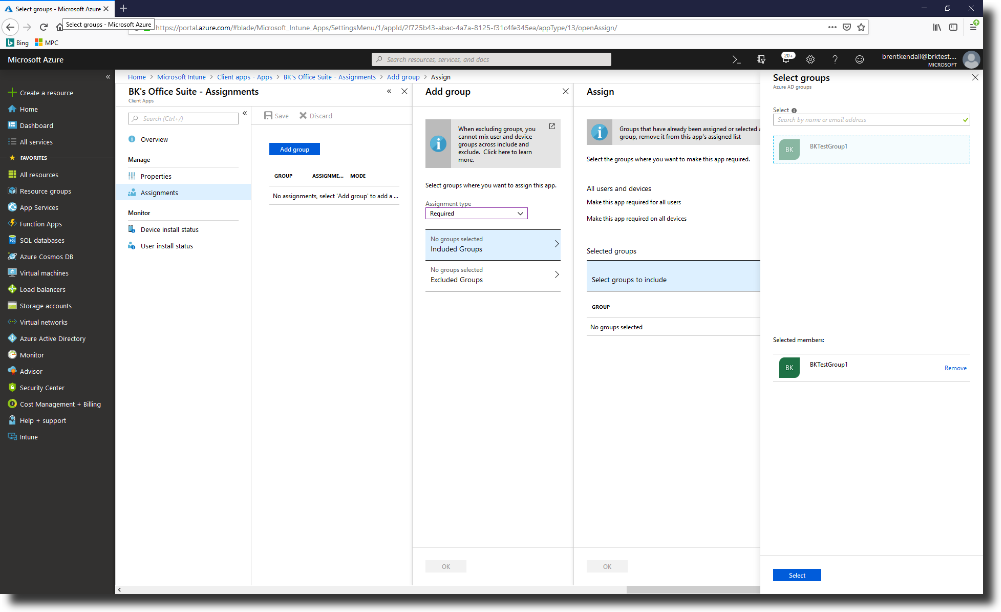

Select Included Groups and assign the groups you previously created that will use this app:

In the Select groups pane, click the Select button.

In the Assign group pane, select OK.

In the Add group pane, select OK.

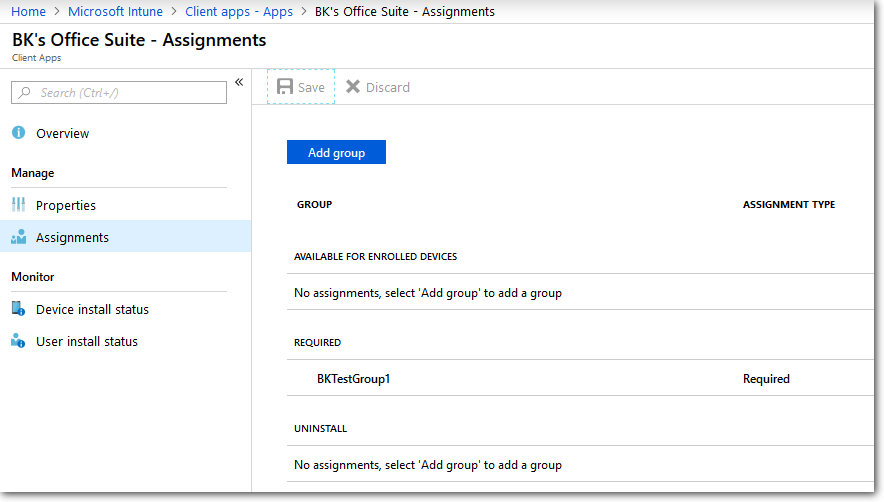

In the app Assignments pane, select Save.

At this point, you have completed steps to add Office to Intune.

For more information on adding Office apps to Intune, see Assign Office 365 apps to Windows 10 devices with Microsoft Intune.

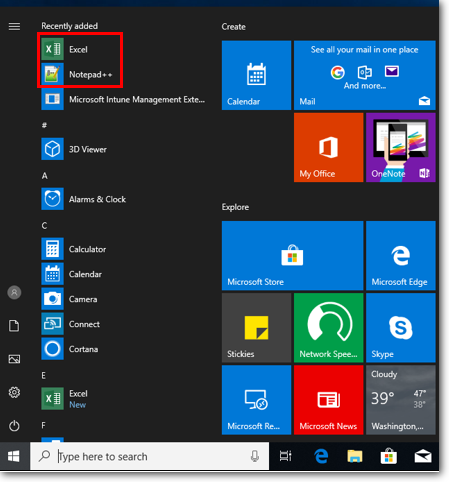

If you installed both the win32 app (Notepad++) and Office (just Excel) per the instructions in this lab, your VM will show them in the apps list, although it could take several minutes to populate:

Glossary

OEM	Original Equipment Manufacturer
CSV	Comma Separated Values
MPC	Microsoft Partner Center
CSP	Cloud Solution Provider
MSfB	Microsoft Store for Business
AAD	Azure Active Directory
4K HH	4K Hardware Hash
CBR	Computer Build Report
EC	Enterprise Commerce (server)
DDS	Device Directory Service
OOBE	Out of the Box Experience
VM	Virtual Machine

48 KiB Raw Blame History Unescape Escape

Demonstrate Autopilot deployment

Prerequisites

Procedures

Verify support for Hyper-V

Enable Hyper-V

Create a demo VM

Set ISO file location

Determine network adapter name

Use Windows PowerShell to create the demo VM

Install Windows 10

Capture the hardware ID

Reset the VM back to Out-Of-Box-Experience (OOBE)

Verify subscription level

Configure company branding

Configure Microsoft Intune auto-enrollment

Register your VM

Autopilot registration using Intune

Autopilot registration using MSfB

Create and assign a Windows Autopilot deployment profile

Create a Windows Autopilot deployment profile using Intune

Create a device group

Create the deployment profile

Create a Windows Autopilot deployment profile using MSfB

See Windows Autopilot in action

Remove devices from Autopilot

Delete (deregister) Autopilot device

Appendix A: Verify support for Hyper-V

Appendix B: Adding apps to your profile

Add a Win32 app

Prepare the app for Intune

Create app in Intune

Assign the app to your Intune profile

Add Office 365

Create app in Intune

Assign the app to your Intune profile

Glossary

48 KiB

Raw Blame History
