Microsoft Defender ATP detections API fields
Applies to:
Want to experience Microsoft Defender ATP? Sign up for a free trial.
Understand what data fields are exposed as part of the detections API and how they map to Microsoft Defender Security Center.
Note
- Microsoft Defender ATP Alert is composed from one or more detections
- Microsoft Defender ATP Detection is composed from the suspicious event occurred on the Machine and its related Alert details.
Detections API fields and portal mapping
The following table lists the available fields exposed in the detections API payload. It shows examples for the populated values and a reference on how data is reflected on the portal.
The ArcSight field column contains the default mapping between the Microsoft Defender ATP fields and the built-in fields in ArcSight. You can download the mapping file from the portal when you enable the SIEM integration feature and you can modify it to match the needs of your organization. For more information, see Enable SIEM integration in Microsoft Defender ATP.

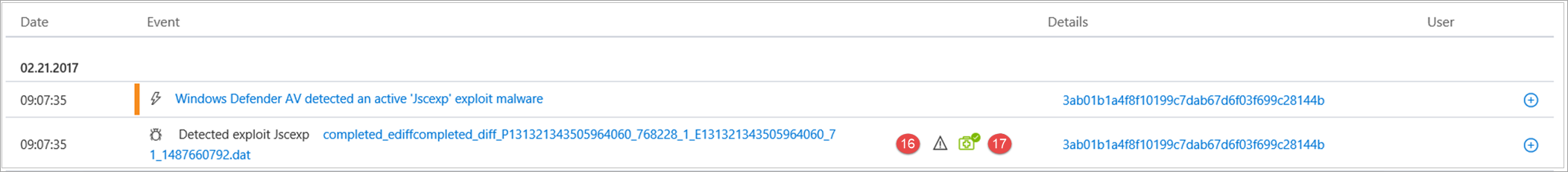

Field numbers match the numbers in the images below.
[!div class="mx-tableFixed"]
Portal label SIEM field name ArcSight field Example value Description 1 AlertTitle name Windows Defender AV detected 'Mikatz' high-severity malware Value available for every Detection. 2 Severity deviceSeverity High Value available for every Detection. 3 Category deviceEventCategory Malware Value available for every Detection. 4 Detection source sourceServiceName Antivirus Windows Defender Antivirus or Microsoft Defender ATP. Value available for every Detection. 5 MachineName sourceHostName desktop-4a5ngd6 Value available for every Detection. 6 FileName fileName Robocopy.exe Available for detections associated with a file or process. 7 FilePath filePath C:\Windows\System32\Robocopy.exe Available for detections associated with a file or process. 8 UserDomain sourceNtDomain CONTOSO The domain of the user context running the activity, available for Microsoft Defender ATP behavioral based detections. 9 UserName sourceUserName liz.bean The user context running the activity, available for Microsoft Defender ATP behavioral based detections. 10 Sha1 fileHash 3da065e07b990034e9db7842167f70b63aa5329 Available for detections associated with a file or process. 11 Sha256 deviceCustomString6 ebf54f745dc81e1958f75e4ca91dd0ab989fc9787bb6b0bf993e2f5 Available for Windows Defender AV detections. 12 Md5 deviceCustomString5 db979c04a99b96d370988325bb5a8b21 Available for Windows Defender AV detections. 13 ThreatName deviceCustomString1 HackTool:Win32/Mikatz!dha Available for Windows Defender AV detections. 14 IpAddress sourceAddress 218.90.204.141 Available for detections associated to network events. For example, 'Communication to a malicious network destination'. 15 Url requestUrl down.esales360.cn Available for detections associated to network events. For example, 'Communication to a malicious network destination'. 16 RemediationIsSuccess deviceCustomNumber2 TRUE Available for Windows Defender AV detections. ArcSight value is 1 when TRUE and 0 when FALSE. 17 WasExecutingWhileDetected deviceCustomNumber1 FALSE Available for Windows Defender AV detections. ArcSight value is 1 when TRUE and 0 when FALSE. 18 AlertId externalId 636210704265059241_673569822 Value available for every Detection. 19 LinkToWDATP flexString1 https://securitycenter.windows.com/alert/636210704265059241_673569822Value available for every Detection. 20 AlertTime deviceReceiptTime 2017-05-07T01:56:59.3191352Z The time the event occurred. Value available for every Detection. 21 MachineDomain sourceDnsDomain contoso.com Domain name not relevant for AAD joined machines. Value available for every Detection. 22 Actor deviceCustomString4 BORON Available for alerts related to a known actor group. 21+5 ComputerDnsName No mapping liz-bean.contoso.com The machine fully qualified domain name. Value available for every Detection. LogOnUsers sourceUserId contoso\liz-bean; contoso\jay-hardee The domain and user of the interactive logon user/s at the time of the event. Note: For machines on Windows 10 version 1607, the domain information will not be available. InternalIPv4List No mapping 192.168.1.7, 10.1.14.1 List of IPV4 internal IPs for active network interfaces. InternalIPv6List No mapping fd30:0000:0000:0001:ff4e:003e:0009:000e, FE80:CD00:0000:0CDE:1257:0000:211E:729C List of IPV6 internal IPs for active network interfaces. Internal field LastProcessedTimeUtc No mapping 2017-05-07T01:56:58.9936648Z Time when event arrived at the backend. This field can be used when setting the request parameter for the range of time that detections are retrieved. Not part of the schema deviceVendor Static value in the ArcSight mapping - 'Microsoft'. Not part of the schema deviceProduct Static value in the ArcSight mapping - 'Microsoft Defender ATP'. Not part of the schema deviceVersion Static value in the ArcSight mapping - '2.0', used to identify the mapping versions.
