Configure Azure AD-joined devices for On-premises Single-Sign On using Windows Hello for Business	Before adding Azure Active Directory (Azure AD) joined devices to your existing hybrid deployment, you need to verify the existing deployment can support them.	01/14/2021	✅ <a href=https://learn.microsoft.com/windows/release-health/supported-versions-windows-client target=_blank>Windows 10 and later</a>	article

Configure Azure AD-joined devices for On-premises Single-Sign On using Windows Hello for Business

[!INCLUDE hello-hybrid-key-trust]

Prerequisites

Before adding Azure Active Directory (Azure AD) joined devices to your existing hybrid deployment, you need to verify the existing deployment can support Azure AD-joined devices. Unlike hybrid Azure AD-joined devices, Azure AD-joined devices don't have a relationship with your Active Directory domain. This factor changes the way in which users authenticate to Active Directory. Validate the following configurations to ensure they support Azure AD-joined devices.

• Azure Active Directory Connect synchronization
• Device Registration
• Certificate Revocation List (CRL) Distribution Point (CDP)
• 2016 Domain Controllers
• Domain Controller certificate
• Network infrastructure in place to reach your on-premises domain controller. If the machines are external, you can use any VPN solution.

Azure Active Directory Connect synchronization

Azure AD join, and hybrid Azure AD join devices register the user's Windows Hello for Business credential with Azure. To enable on-premises authentication, the credential must be synchronized to the on-premises Active Directory, regardless whether you're using a key or a certificate. Ensure you have Azure AD Connect installed and functioning properly. To learn more about Azure AD Connect, read Integrate your on-premises directories with Azure Active Directory.

If you upgraded your Active Directory schema to the Windows Server 2016 schema after installing Azure AD Connect, run Azure AD Connect and run Refresh directory schema from the list of tasks.

Azure Active Directory Device Registration

A fundamental prerequisite of all cloud and hybrid Windows Hello for Business deployments is device registration. A user can't provision Windows Hello for Business unless the device from which they're trying to provision has registered with Azure Active Directory. For more information about device registration, read Introduction to device management in Azure Active Directory.

You can use the dsregcmd.exe command to determine if your device is registered to Azure Active Directory.

CRL Distribution Point (CDP)

Certificates issued by a certificate authority can be revoked. When a certificate authority revokes as certificate, it writes information about the certificate into a revocation list. During certificate validation, Windows consults the CRL distribution point within the certificate to get a list of revoked certificates. Validation compares the current certificate with information in the certificate revocation list to determine if the certificate remains valid.

The preceding domain controller certificate shows a CRL distribution path (CDP) using Active Directory. The value in the URL begins with ldap. Using Active Directory for domain joined devices provides a highly available CRL distribution point. However, Azure Active Directory-joined devices and users on Azure Active Directory-joined devices can't read data from Active Directory, and certificate validation doesn't provide an opportunity to authenticate prior to reading the certificate revocation list. The authentication becomes a circular problem. The user is attempting to authenticate, but must read Active Directory to complete the authentication, but the user can't read Active Directory because they haven't authenticated.

To resolve this issue, the CRL distribution point must be a location that is accessible by Azure Active Directory-joined devices that doesn't require authentication. The easiest solution is to publish the CRL distribution point on a web server that uses HTTP (not HTTPS).

If your CRL distribution point doesn't list an HTTP distribution point, then you need to reconfigure the issuing certificate authority to include an HTTP CRL distribution point, preferably first in the list of distribution points.

Note

If your CA has published both the Base and the Delta CRL, please make sure you have included publishing the Delta CRL in the HTTP path. Include web server to fetch the Delta CRL by allowing double escaping in the (IIS) web server.

Windows Server 2016 Domain Controllers

If you're interested in configuring your environment to use the Windows Hello for Business key rather than a certificate, then your environment must have an adequate number of Windows Server 2016 domain controllers. Only Windows Server 2016 domain controllers are capable of authenticating user with a Windows Hello for Business key. What do we mean by adequate? We're glad you asked. Read Planning an adequate number of Windows Server 2016 Domain Controllers for Windows Hello for Business deployments to learn more.

If you're interested in configuring your environment to use the Windows Hello for Business certificate rather than key, then you're the right place. The same certificate configuration on the domain controllers is needed, whether you're using Windows Server 2016 domain controllers or domain controllers running earlier versions of Windows Server. You can ignore the Windows Server 2016 domain controller requirement.

Domain Controller Certificates

Certificate authorities write CRL distribution points in certificates as they're issued. If the distribution point changes, then previously issued certificates must be reissued for the certificate authority to include the new CRL distribution point. The domain controller certificate is one the critical components of Azure AD-joined devices authenticating to Active Directory

Why does Windows need to validate the domain controller certificate?

Windows Hello for Business enforces the strict KDC validation security feature when authenticating from an Azure AD joined device to a domain. This enforcement imposes more restrictive criteria that must be met by the Key Distribution Center (KDC). When authenticating using Windows Hello for Business on an Azure AD joined device, the Windows client validates the reply from the domain controller by ensuring all of the following are met:

• The domain controller has the private key for the certificate provided.
• The root CA that issued the domain controller's certificate is in the device's Trusted Root Certificate Authorities.
• Use the Kerberos Authentication certificate template instead of any other older template.
• The domain controller's certificate has the KDC Authentication enhanced key usage (EKU).
• The domain controller's certificate's subject alternate name has a DNS Name that matches the name of the domain.
• The domain controller's certificate's signature hash algorithm is sha256.
• The domain controller's certificate's public key is RSA (2048 Bits).

Authenticating from a Hybrid Azure AD joined device to a domain using Windows Hello for Business doesn't enforce that the domain controller certificate includes the KDC Authentication EKU. If you're adding Azure AD-joined devices to an existing domain environment, make sure to verify that your domain controller certificate has been updated to include the KDC Authentication EKU. If you need to update your domain controller certificate to include the KDC Authentication EKU, follow the instructions in Configure Hybrid Windows Hello for Business: Public Key Infrastructure

Tip

If you are using Windows Server 2008, Kerberos Authentication is not the default template, so make sure to use the correct template when issuing or re-issuing the certificate.

Configuring a CRL Distribution Point for an issuing certificate authority

Use this set of procedures to update your certificate authority that issues your domain controller certificates to include an http-based CRL distribution point.

Steps you'll perform include:

• Configure Internet Information Services to host CRL distribution point
• Prepare a file share to host the certificate revocation list
• Configure the new CRL distribution point and Publishing location in the issuing certificate authority
• Publish CRL
• Reissue domain controller certificates

Configure Internet Information Services to host CRL distribution point

You need to host your new certificate revocation list of a web server so Azure AD-joined devices can easily validate certificates without authentication. You can host these files on web servers many ways. The following steps are just one and may be useful for admins unfamiliar with adding a new CRL distribution point.

Important

Do not configure the IIS server hosting your CRL distribution point to use https or a server authentication certificate. Clients should access the distribution point using http.

Installing the Web Server

1. Sign-in to your server as a local administrator and start Server Manager if it didn't start during your sign in.
2. Select the Local Server node in the navigation pane. Select Manage and select Add Roles and Features.
3. In the Add Role and Features Wizard, select Server Selection. Verify the selected server is the local server. Select Server Roles. Select the check box next to Web Server (IIS).
4. Select Next through the remaining options in the wizard, accepting the defaults, and install the Web Server role.

Configure the Web Server

1. From Windows Administrative Tools, Open Internet Information Services (IIS) Manager.

2. Expand the navigation pane to show Default Web Site. Select and then right-click Default Web site and select Add Virtual Directory....

3. In the Add Virtual Directory dialog box, type cdp in alias. For physical path, type or browse for the physical file location where you'll host the certificate revocation list. For this example, the path c:\cdp is used. Select OK.

   Note

   Make note of this path as you will use it later to configure share and file permissions.

4. Select CDP under Default Web Site in the navigation pane. Double-click Directory Browsing in the content pane. Select Enable in the details pane.

5. Select CDP under Default Web Site in the navigation pane. Double-click Configuration Editor.

6. In the Section list, navigate to system.webServer/security/requestFiltering.
   In the list of named value-pairs in the content pane, configure allowDoubleEscaping to True. Select Apply in the actions pane.

7. Close Internet Information Services (IIS) Manager.

Create a DNS resource record for the CRL distribution point URL

1. On your DNS server or from an administrative workstation, open DNS Manager from Administrative Tools.
2. Expand Forward Lookup Zones to show the DNS zone for your domain. Right-click your domain name in the navigation pane and select New Host (A or AAAA)....

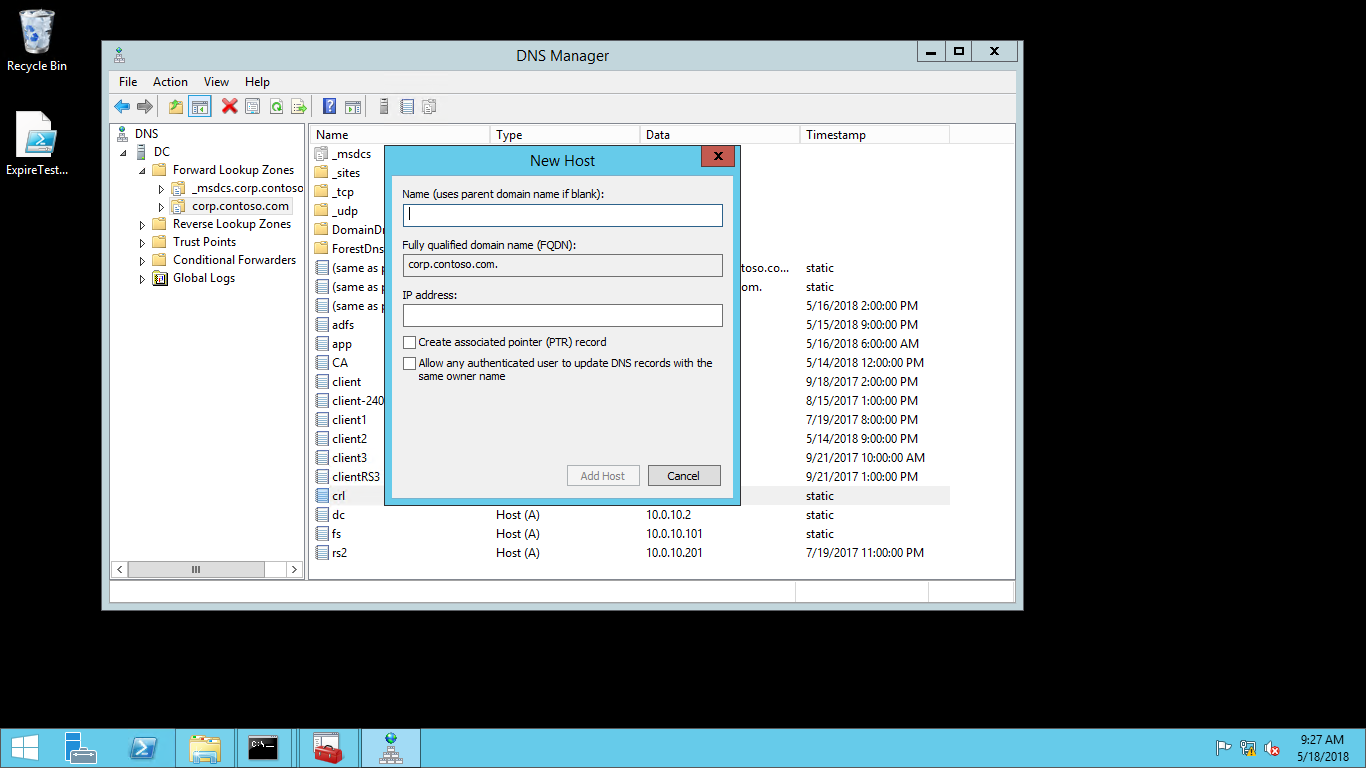

3. In the New Host dialog box, type crl in Name. Type the IP address of the web server you configured in IP Address. Select Add Host. Select OK to close the DNS dialog box. Select Done.
4. Close the DNS Manager.

Prepare a file share to host the certificate revocation list

These procedures configure NTFS and share permissions on the web server to allow the certificate authority to automatically publish the certificate revocation list.

Configure the CDP file share

1. On the web server, open Windows Explorer and navigate to the cdp folder you created in step 3 of Configure the Web Server.
2. Right-click the cdp folder and select Properties. Select the Sharing tab. Select Advanced Sharing.
3. Select Share this folder. Type cdp$ in Share name. Select Permissions.
4. In the Permissions for cdp$ dialog box, select Add.
5. In the Select Users, Computers, Service Accounts, or Groups dialog box, select Object Types. In the Object Types dialog box, select Computers, and then select OK.
6. In the Select Users, Computers, Service Accounts, or Groups dialog box, in Enter the object names to select, type the name of the server running the certificate authority issuing the certificate revocation list, and then select Check Names. Select OK.
7. In the Permissions for cdp$ dialog box, select the certificate authority from the Group or user names list. In the Permissions for section, select Allow for Full control. Select OK.
8. In the Advanced Sharing dialog box, select OK.

Tip

Make sure that users can access \\Server FQDN\sharename.

Disable Caching

1. On the web server, open Windows Explorer and navigate to the cdp folder you created in step 3 of Configure the Web Server.
2. Right-click the cdp folder and select Properties. Select the Sharing tab. Select Advanced Sharing.
3. Select Caching. Select No files or programs from the shared folder are available offline.
4. Select OK.

Configure NTFS permission for the CDP folder

1. On the web server, open Windows Explorer and navigate to the cdp folder you created in step 3 of Configure the Web Server.
2. Right-click the cdp folder and select Properties. Select the Security tab.
3. On the Security tab, select Edit.
4. In the Permissions for cdp dialog box, select Add.
5. In the Select Users, Computers, Service Accounts, or Groups dialog box, select Object Types. In the Object Types dialog box, select Computers. Select OK.
6. In the Select Users, Computers, Service Accounts, or Groups dialog box, in Enter the object names to select, type the name of the certificate authority, and then select Check Names. Select OK.
7. In the Permissions for cdp dialog box, select the name of the certificate authority from the Group or user names list. In the Permissions for section, select Allow for Full control. Select OK.
8. Select Close in the cdp Properties dialog box.

Configure the new CRL distribution point and Publishing location in the issuing certificate authority

The web server is ready to host the CRL distribution point. Now, configure the issuing certificate authority to publish the CRL at the new location and to include the new CRL distribution point

Configure the CRL distribution Point

1. On the issuing certificate authority, sign-in as a local administrator. Start the Certificate Authority console from Administrative Tools.
2. In the navigation pane, right-click the name of the certificate authority and select Properties
3. Select Extensions. On the Extensions tab, select CRL Distribution Point (CDP) from the Select extension list.
4. On the Extensions tab, select Add. Type http://crl.[domainname]/cdp/ in location. For example, <http://crl.corp.contoso.com/cdp/> or <http://crl.contoso.com/cdp/> (don't forget the trailing forward slash).
5. Select <CaName> from the Variable list and select Insert. Select <CRLNameSuffix> from the Variable list and select Insert. Select <DeltaCRLAllowed> from the Variable list and select Insert.
6. Type .crl at the end of the text in Location. Select OK.
7. Select the CDP you just created.
8. Select Include in CRLs. Clients use this to find Delta CRL locations.
9. Select Include in the CDP extension of issued certificates.
10. Select Apply save your selections. Select No when ask to restart the service.

Note

Optionally, you can remove unused CRL distribution points and publishing locations.

Configure the CRL publishing location

1. On the issuing certificate authority, sign-in as a local administrator. Start the Certificate Authority console from Administrative Tools.
2. In the navigation pane, right-click the name of the certificate authority and select Properties
3. Select Extensions. On the Extensions tab, select CRL Distribution Point (CDP) from the Select extension list.
4. On the Extensions tab, select Add. Type the computer and share name you create for your CRL distribution point in Configure the CDP file share. For example, \\app\cdp$\ (don't forget the trailing backwards slash).
5. Select <CaName> from the Variable list and select Insert. Select <CRLNameSuffix> from the Variable list and select Insert. Select <DeltaCRLAllowed> from the Variable list and select Insert.
6. Type .crl at the end of the text in Location. Select OK.
7. Select the CDP you just created.

8. Select Publish CRLs to this location.
9. Select Publish Delta CRLs to this location.
10. Select Apply save your selections. Select Yes when ask to restart the service. Select OK to close the properties dialog box.

Publish a new CRL

1. On the issuing certificate authority, sign-in as a local administrator. Start the Certificate Authority console from Administrative Tools.
2. In the navigation pane, right-click Revoked Certificates, hover over All Tasks, and select Publish
3. In the Publish CRL dialog box, select New CRL and select OK.

Validate CDP Publishing

Validate your new CRL distribution point is working.

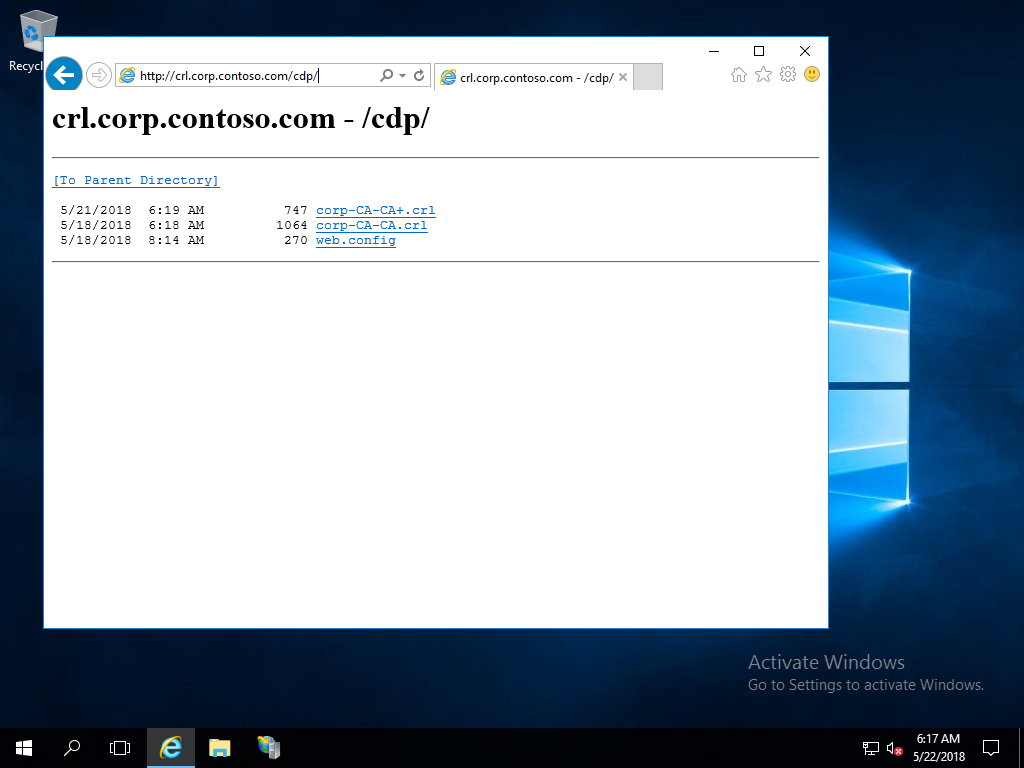

1. Open a web browser. Navigate to http://crl.[yourdomain].com/cdp. You should see two files created from publishing your new CRL.

Reissue domain controller certificates

With the CA properly configured with a valid HTTP-based CRL distribution point, you need to reissue certificates to domain controllers as the old certificate doesn't have the updated CRL distribution point.

1. Sign-in a domain controller using administrative credentials.
2. Open the Run dialog box. Type certlm.msc to open the Certificate Manager for the local computer.
3. In the navigation pane, expand Personal. Select Certificates. In the details pane, select the existing domain controller certificate includes KDC Authentication in the list of Intended Purposes.
4. Right-click the selected certificate. Hover over All Tasks and then select Renew Certificate with New Key.... In the Certificate Enrollment wizard, select Next.
5. In the Request Certificates page of the wizard, verify the selected certificate has the correct certificate template and ensure the status is available. Select Enroll.
6. After the enrollment completes, select Finish to close the wizard.
7. Repeat this procedure on all your domain controllers.

Note

You can configure domain controllers to automatically enroll and renew their certificates. Automatic certificate enrollment helps prevent authentication outages due to expired certificates. Refer to the Windows Hello Deployment Guides to learn how to deploy automatic certificate enrollment for domain controllers.

Important

If you are not using automatic certificate enrollment, create a calendar reminder to alert you two months before the certificate expiration date. Send the reminder to multiple people in the organization to ensure more than one or two people know when these certificates expire.

Validate CDP in the new certificate

1. Sign-in a domain controller using administrative credentials.
2. Open the Run dialog box. Type certlm.msc to open the Certificate Manager for the local computer.
3. In the navigation pane, expand Personal. Select Certificates. In the details pane, double-click the existing domain controller certificate includes KDC Authentication in the list of Intended Purposes.
4. Select the Details tab. Scroll down the list until CRL Distribution Points is visible in the Field column of the list. Select CRL Distribution Point.
5. Review the information below the list of fields to confirm the new URL for the CRL distribution point is present in the certificate. Select OK.


Configure and Assign a Trusted Certificate Device Configuration Profile

Your domain controllers have new certificates that include the new CRL distribution point. Next, you need your enterprise root certificate so you can deploy it to Azure AD-joined devices. When you deploy the enterprise root certificates to the device, it ensures the device trusts any certificates issued by the certificate authority. Without the certificate, Azure AD-joined devices don't trust domain controller certificates and authentication fails.

Steps you'll perform include:

• Export Enterprise Root certificate
• Create and Assign a Trust Certificate Device Configuration Profile

Export Enterprise Root certificate

1. Sign-in a domain controller using administrative credentials.
2. Open the Run dialog box. Type certlm.msc to open the Certificate Manager for the local computer.
3. In the navigation pane, expand Personal. Select Certificates. In the details pane, double-click the existing domain controller certificate includes KDC Authentication in the list of Intended Purposes.
4. Select the Certification Path tab. In the Certification path view, select the topmost node and select View Certificate.
5. In the new Certificate dialog box, select the Details tab. Select Copy to File.
6. In the Certificate Export Wizard, select Next.
7. On the Export File Format page of the wizard, select Next.
8. On the File to Export page in the wizard, type the name and location of the root certificate and select Next. Select Finish and then select OK to close the success dialog box.

9. Select OK two times to return to the Certificate Manager for the local computer. Close the Certificate Manager.

Create and Assign a Trust Certificate Device Configuration Profile

A Trusted Certificate device configuration profile is how you deploy trusted certificates to Azure AD-joined devices.

1. Sign-in to the Microsoft Azure portal and select Microsoft Intune.
2. Select Device configuration. In the Device Configuration blade, select Create profile.
3. In the Create profile blade, type Enterprise Root Certificate in Name. Provide a description. Select Windows 10 and later from the Platform list. Select Trusted certificate from the Profile type list. Select Configure.
4. In the Trusted Certificate blade, use the folder icon to browse for the location of the enterprise root certificate file you created in step 8 of Export Enterprise Root certificate. Select OK. Select Create.
5. In the Enterprise Root Certificate blade, select Assignments. In the Include tab, select All Devices from the Assign to list. Select Save.
6. Sign out of the Microsoft Azure portal.

Note

After the creation, the supported platform parameter of the profile will contain the value "Windows 8.1 and later", as the certificate configuration for Windows 8.1 and Windows 10 is the same.

Configure Windows Hello for Business Device Enrollment

Sign-in a workstation with access equivalent to a domain user.

1. Sign in to the Microsoft Endpoint Manager admin center.

2. Select Devices.

3. Choose Enroll devices.

4. Select Windows enrollment.

5. Under Windows enrollment, select Windows Hello for Business.

6. Select Enabled from the Configure Windows Hello for Business list.

7. Select Required next to Use a Trusted Platform Module (TPM). By default, Windows Hello for Business prefers TPM 2.0 or falls backs to software. Choosing Required forces Windows Hello for Business to only use TPM 2.0 or TPM 1.2 and doesn't allow fall back to software-based keys.

8. Enter the desired Minimum PIN length and Maximum PIN length.

   Important

   The default minimum PIN length for Windows Hello for Business on Windows 10 and Windows 11 is six. Microsoft Intune defaults the minimum PIN length to four, which reduces the security of the user's PIN. If you do not have a desired PIN length, set the minimum PIN length to six.

9. Select the appropriate configuration for the following settings:

   • Lowercase letters in PIN
   • Uppercase letters in PIN
   • Special characters in PIN
   • PIN expiration (days)
   • Remember PIN history

   Note

   The Windows Hello for Business PIN is not a symmetric key (a password). A copy of the current PIN is not stored locally or on a server like in the case of passwords. Making the PIN as complex and changed frequently as a password increases the likelihood of forgotten PINs. Additionally, enabling PIN history is the only scenario that requires Windows to store older PIN combinations (protected to the current PIN). Windows Hello for Business combined with a TPM provides anti-hammering functionality that prevents brute force attacks of the user's PIN. If you are concerned with user-to-user shoulder surfacing, rather that forcing complex PIN that change frequently, consider using the Multifactor Unlock feature.

10. Select Yes next to Allow biometric authentication if you want to allow users to use biometrics (fingerprint and/or facial recognition) to unlock the device. To further secure the use of biometrics, select Yes to Use enhanced anti-spoofing, when available.

11. Select No to Allow phone sign-in. This feature has been deprecated.

12. Choose Save.

13. Sign out of the Microsoft Endpoint Manager admin center.

Important

For more details about the actual experience after everything has been configured, please see Windows Hello for Business and Authentication.

Note

For access issues in the context of VPN, make sure to check the resolution and workaround described in Workaround for user security context and access control.

Section Review

[!div class="checklist"]

• Configure Internet Information Services to host CRL distribution point
• Prepare a file share to host the certificate revocation list
• Configure the new CRL distribution point in the issuing certificate authority
• Publish CRL
• Reissue domain controller certificates
• Export Enterprise Root certificate
• Create and Assign a Trust Certificate Device Configuration Profile
• Configure Windows Hello for Business Device Enrollment

If you plan on using certificates for on-premises single-sign on, perform the additional steps in Using Certificates for On-premises Single-sign On.
